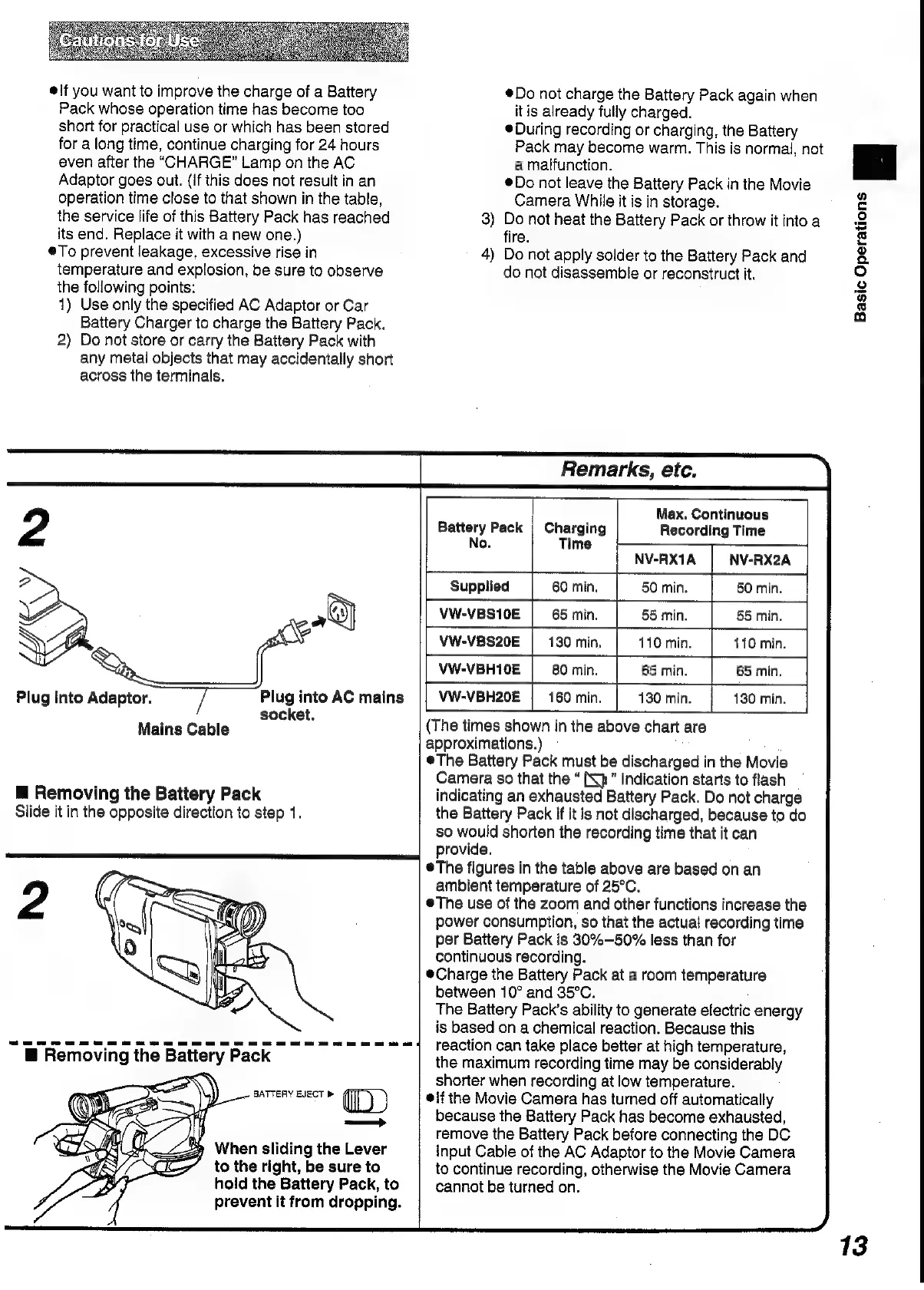

Panasonic NV-RX1A - Page 13

elif you want to improve the charge of a Battery
Pack whose operation time has become too
short for practical use or which has been stored
for a long time, continue charging for 24 hours
even after the “CHARGE” Lamp on the AC
Adaptor goes out. (if this does not result in an
operation time close to that shown in the table,
the service life of this Battery Pack has reached
its end. Replace it with a new one.)
©To prevent leakage, excessive rise in
temperature and explosion, be sure to observe
the following points:
1) Use only the specified AC Adaptor or Car
Battery Charger to charge the Battery Pack.
2) Do not store or carry the Battery Pack with
any metal objects that may accidentally short
across the terminals.
Plug into AC mains
socket.
Plug into Adaptor.
Mains Cable
mM Removing the Battery Pack
Slide it in the opposite direction to step 1.
ee ae
oS When sliding the Lever
to the right, be sure to
hold the Battery Pack, to
prevent it from dropping.
Do not charge the Battery Pack again when
it is already fully charged.
® During recording or charging, the Battery
Pack may become warm. This is normal, not
a malfunction.
®Do not leave the Battery Pack in the Movie
Camera While it is in storage.
3) Do not heat the Battery Pack or throw it into a
fire.
4) Do not apply solder to the Battery Pack and
do not disassemble or reconstruct it.
Remarks, etc.
Max. Continuous
Battery Pack | Charging Recording Time
No. Time
NV-RX1A NV-RX2A
Supplied 60 min. 50 min. 50 min.
VW-VBS10E 65 min. 55 min. §5 min.
VW-VBS20E | 130 min. 110 min. 110 min.
VW-VBH10E 80 min. 65 min. 65 min,
VW-VBH20E | 160 min. 130 min. 130 min.
(The times shown in the above chart are
approximations.)
eThe Battery Pack must be discharged in the Movie
Camera so that the “[Xh” Indication starts to flash
indicating an exhausted Battery Pack. Do not charge
the Battery Pack if it is not discharged, because to do
so would shorten the recording time that it can
provide.
The figures in the table above are based on an
ambient temperature of 25°C.
©The use of the zoom and other functions increase the
power consumption, so that the actual recording time
per Battery Pack is 30%-50% less than for
continuous recording.
Charge the Battery Pack at a room temperature
between 10° and 35°C.
The Battery Pack’s ability to generate electric energy
is based on a chemical reaction. Because this
reaction can take place better at high temperature,
the maximum recording time may be considerably
shorter when recording at low temperature.
if the Movie Camera has turned off automatically
because the Battery Pack has become exhausted,
remove the Battery Pack before connecting the DC
input Cable of the AC Adaptor to the Movie Camera
to continue recording, otherwise the Movie Camera
cannot be turned on.
Basic Operations eS
13
