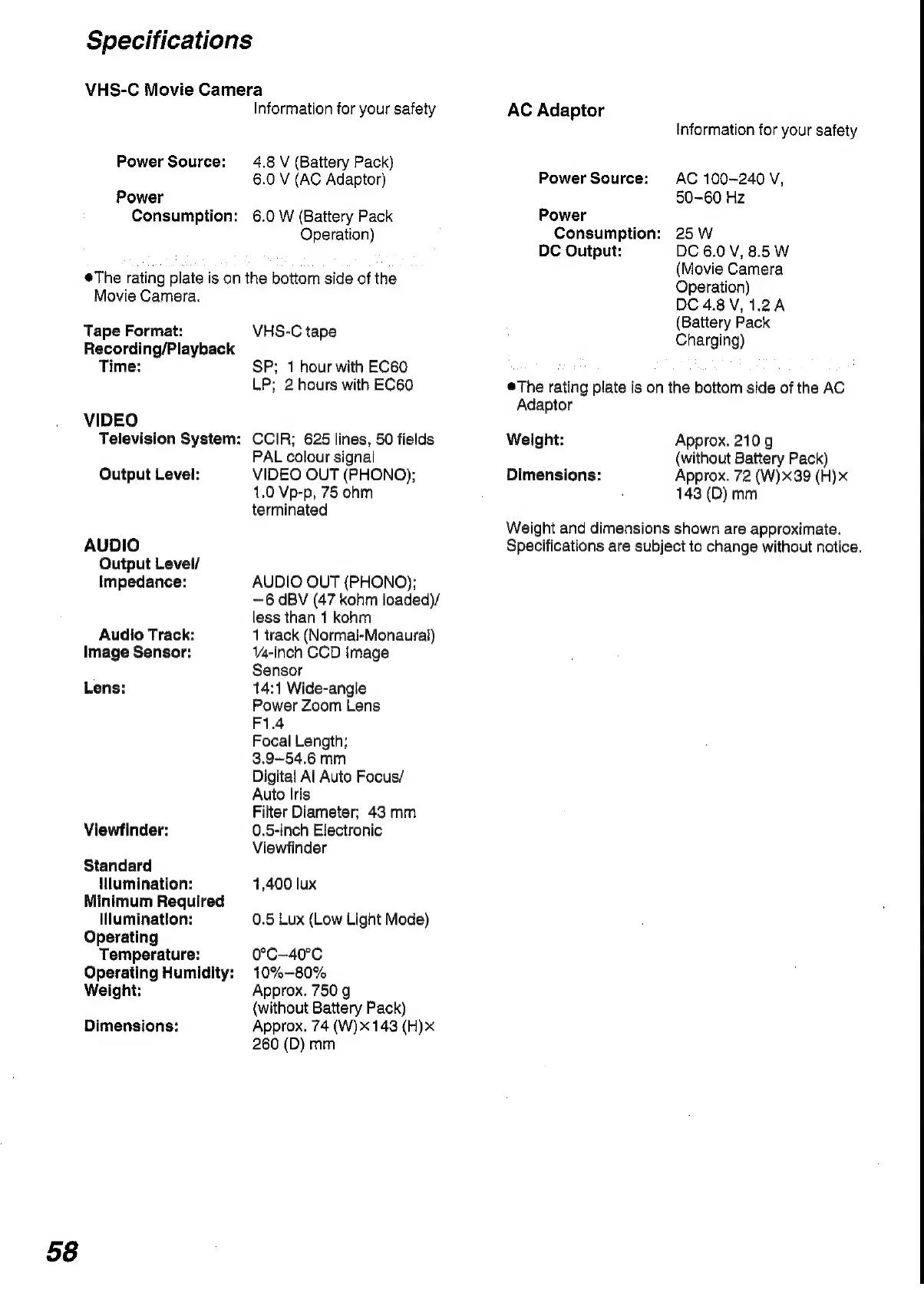

Panasonic NV-RX1A - Specifications

Specifications
VHS-C Movie Camera
Information for your safety
Power Source: 4.8 V (Battery Pack)
6.0 V (AC Adaptor)
Power
Consumption: 6.0 W (Battery Pack
Operation)
®The rating plate is on the bottom side of the
Movie Camera.
Tape Format:
Recording/Playback
Time: SP; 1 hour with EC60
LP; 2 hours with EC60
VHS-C tape
VIDEO
Television System: CCIR; 625 lines, 50 fields
PAL colour signal
Output Level: VIDEO OUT (PHONO);
1.0 Vp-p, 75 ohm
terminated
AUDIO
Output Level/
Impedance: AUDIO OUT (PHONO);
—6 dBV (47 kohm loaded)/
less than 1 kohm
Audio Track: 1 track (Normal-Monaural)
Image Sensor: Ya-inch CCD image
Sensor
Lens: 14:1 Wide-angle
Power Zoom Lens
F1.4
Focal Length;
3.9—54.6 mm
Digital Al Auto Focus/
Auto Iris
Filter Diameter; 43 mm
Viewfinder: 0.5-inch Electronic
Viewfinder
Standard
Illumination: 1,400 lux
Minimum Required
Illumination: 0.5 Lux (Low Light Mode)
Operating
Temperature: 0°C-—40°C
Operating Humidity: 10%—80%
Weight: Approx. 750 g
(without Battery Pack)
Dimensions: Approx. 74 (W)x 143 (H)x
260 (D) mm
AC Adaptor
Information for your safety
Power Source: AC 100-240 V,
50-60 Hz
Power
Consumption: 25 W
DC Output: DC6.0V,8.5W
(Movie Camera
Operation)
DC4.8V,1.2A
(Battery Pack
Charging)
®The rating plate is on the bottom side of the AC
Adaptor
Weight: Approx. 210 g
(without Battery Pack)
Dimensions: Approx. 72 (W)x39 (H)x
143 (BD) mm
Weight and dimensions shown are approximate.
Specifications are subject to change without notice.
