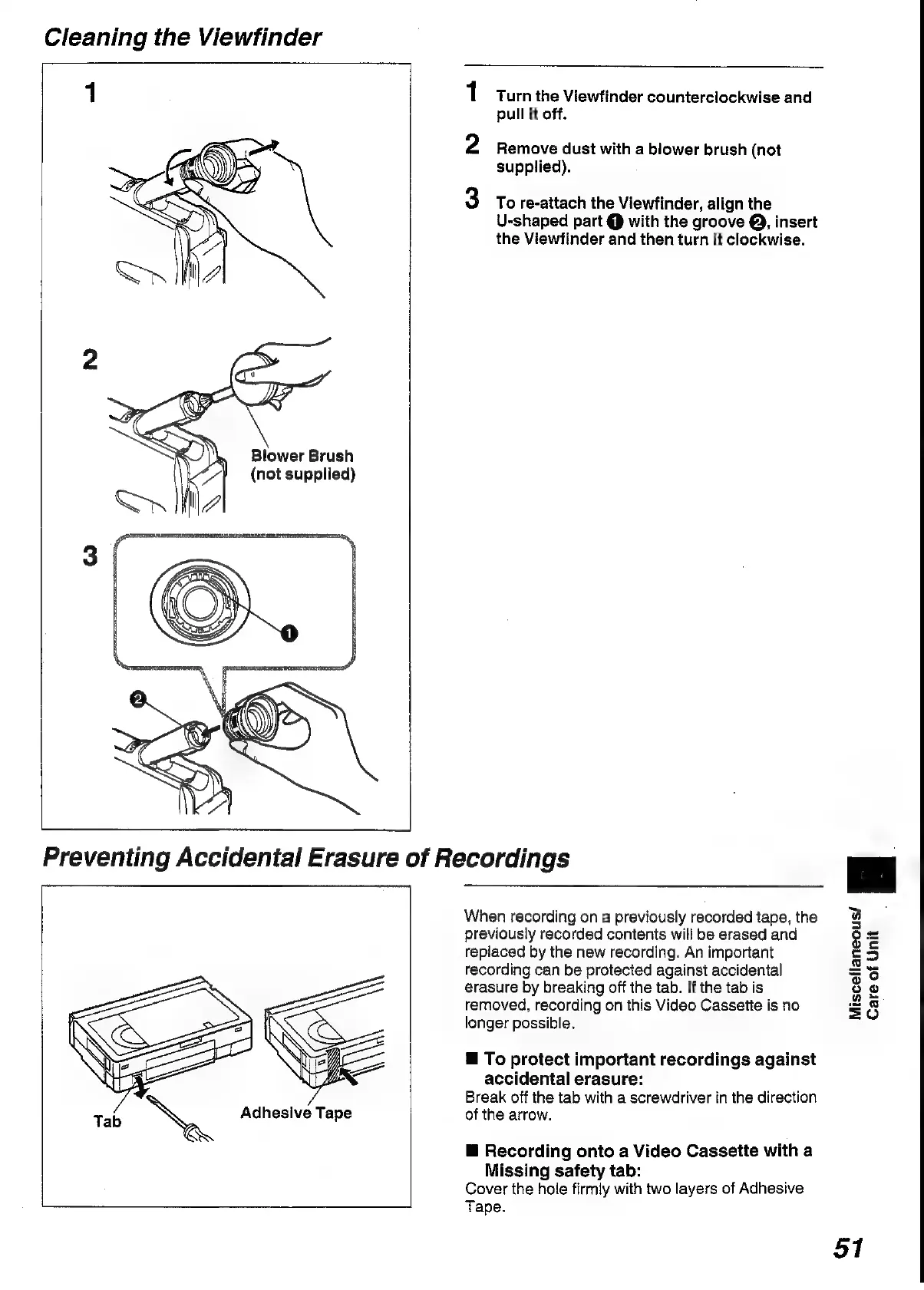

Panasonic NV-RX1A - Cleaning the Viewfinder; Preventing Accidental Erasure of Recordings

Cleaning the Viewfinder
Blower Brush
(not supplied)
Preventing Accidental Erasure of Recordings
1 Turn the Viewfinder counterclockwise and
pull it off.
2 Remove dust with a blower brush (not
supplied).
3 To re-attach the Viewfinder, align the
U-shaped part @ with the groove Q, insert
the Viewfinder and then turn it clockwise.
ee Adhesive Tape
SN
When recording on a previously recorded tape, the
previously recorded contents will be erased and
replaced by the new recording. An important
recording can be protected against accidental
erasure by breaking off the tab. If the tab is
removed, recording on this Video Cassette is no
longer possible.
Miscellaneous/ Care of Unit
Hf To protect important recordings against
accidental erasure:
Break off the tab with a screwdriver in the direction
of the arrow.
@ Recording onto a Video Cassette with a
Missing safety tab:
Cover the hole firmly with two layers of Adhesive
Tape.
51
