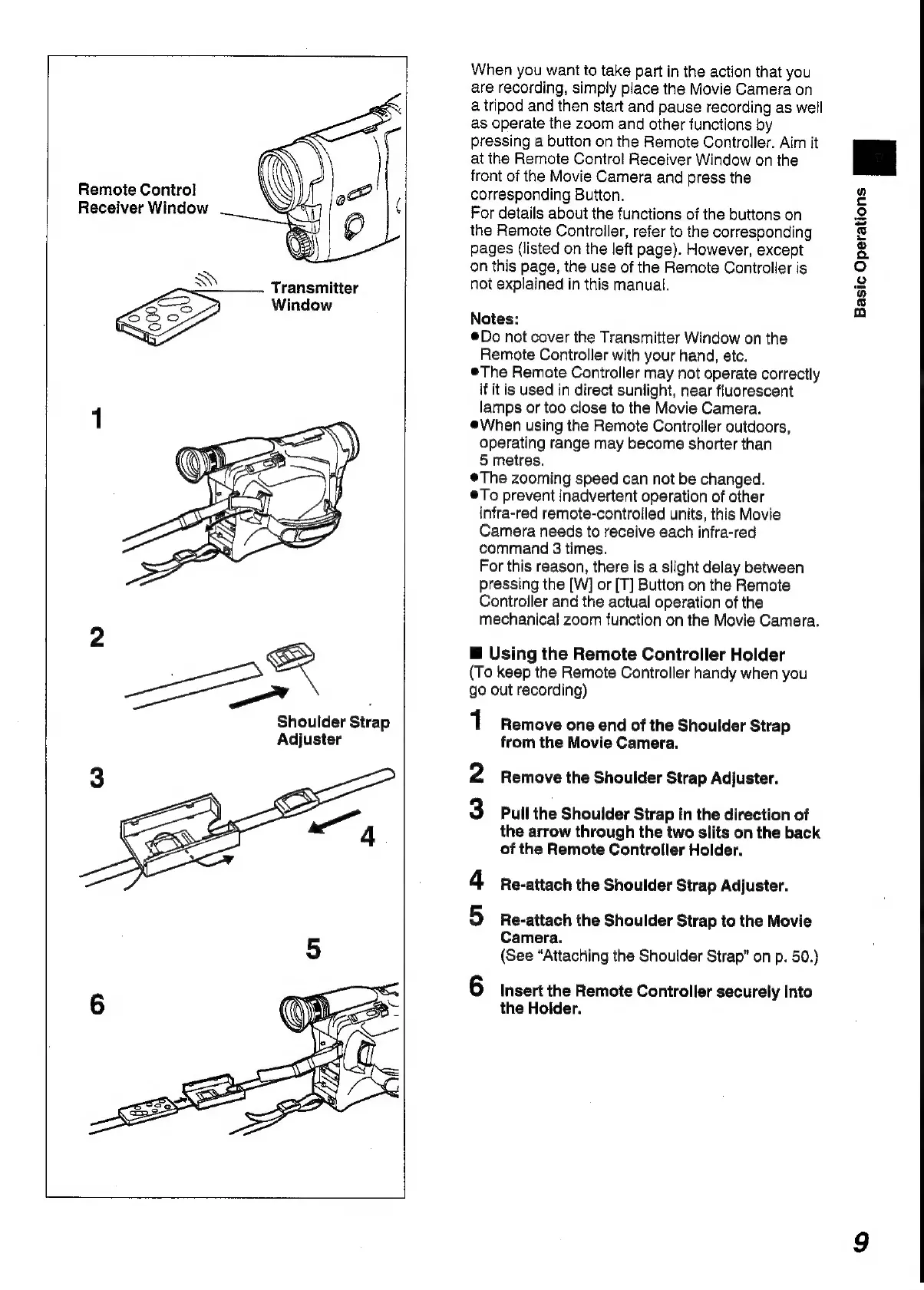

Panasonic NV-RX1A - Page 9

Remote Coniro!
Receiver Window
YN Transmitter
So --S Window
RSS
Sy
Shoulder Strap
Adjuster
When you want to take part in the action that you
are recording, simply place the Movie Camera on
a tripod and then start and pause recording as well
as operate the zoom and other functions by
pressing a button on the Remote Controller. Aim it
at the Remote Control Receiver Window on the
front of the Movie Camera and press the
corresponding Button.
For details about the functions of the buttons on
the Remote Controller, refer to the corresponding
pages (listed on the left page). However, except
on this page, the use of the Remote Controller is
not explained in this manual.
Basic Operations |
Notes:
©Do not cover the Transmitter Window on the
Remote Controller with your hand, etc.
The Remote Controller may not operate correctly
if it is used in direct sunlight, near fluorescent
lamps or too close to the Movie Camera.
@When using the Remote Controller outdoors,
operating range may become shorter than
5 metres,
The zooming speed can not be changed.
©To prevent inadvertent operation of other
infra-red remote-controlled units, this Movie
Camera needs to receive each infra-red
command 3 times.
For this reason, there is a slight delay between
pressing the [W] or [T] Button on the Remote
Controller and the actual operation of the
mechanical zoom function on the Movie Camera.
@ Using the Remote Controller Holder
(To keep the Remote Controller handy when you
go out recording)
1 Remove one end of the Shoulder Strap
from the Movie Camera.
2 Remove the Shoulder Strap Adjuster.
3 Pull the Shoulder Strap in the direction of
the arrow through the two slits on the back
of the Remote Controller Holder.
4 Re-attach the Shoulder Strap Adjuster.
5 Re-attach the Shoulder Strap to the Movie
Camera.
(See “Attaching the Shoulder Strap” on p. 50.)
6 Insert the Remote Controller securely into
the Holder.
