Panasonic Omnivision PV-2601 User Manual

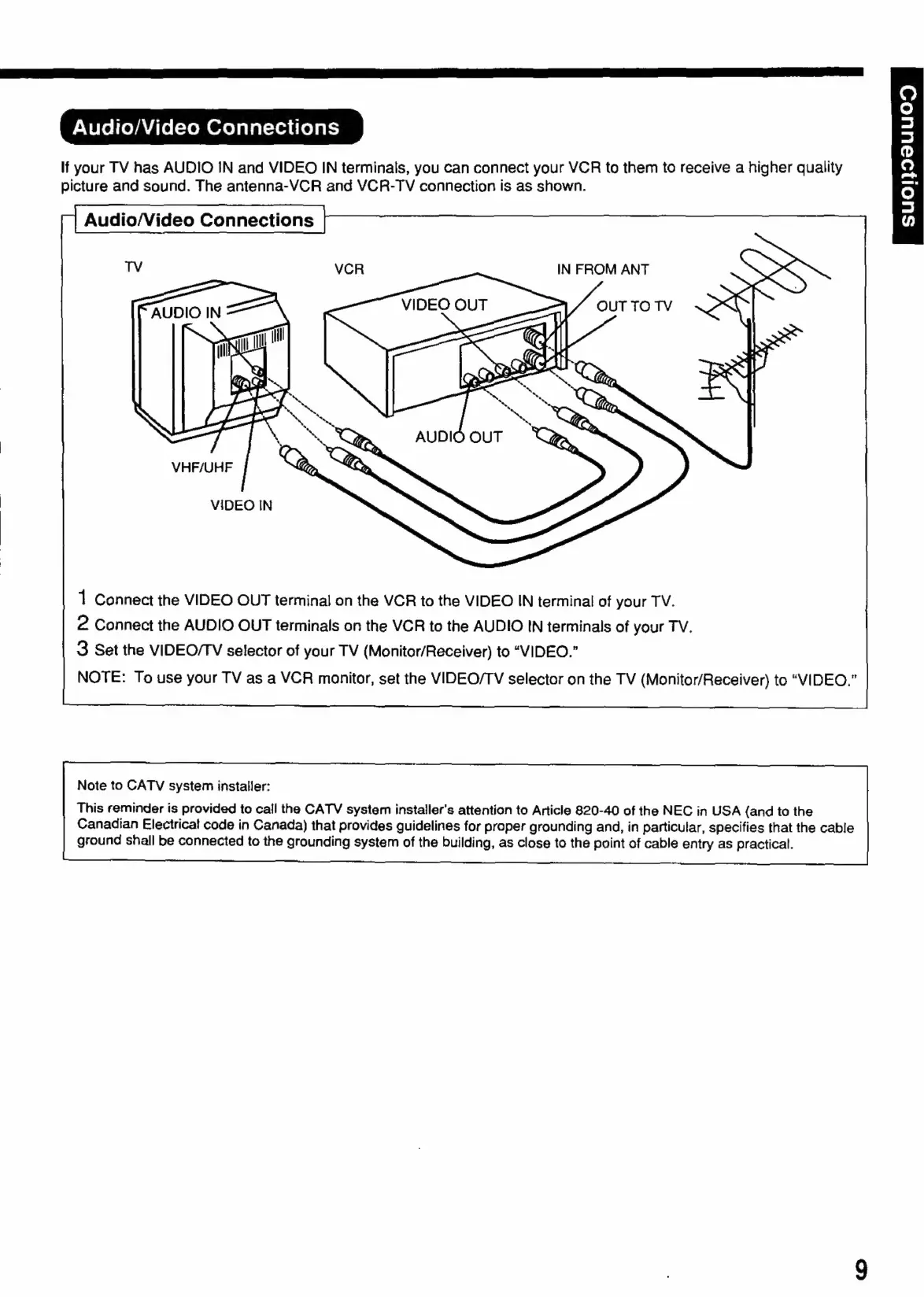

Audio/Video Connections
If your TV has AUDIO IN and VIDEO IN terminals, you can connect your VCR to them to receive a higher quality
picture and sound. The antenna-VCR and VCR-TV connection is as shown.
Audio/Video Connections
SUOI}D9UUOY
VHF/UHF
VIDEO IN
1 Connect the VIDEO OUT terminal on the VCR to the VIDEO IN terminal of your TV.
2 Connect the AUDIO OUT terminals on the VCR to the AUDIO IN terminals of your TV.
3 Set the VIDEO/TV selector of your TV (Monitor/Receiver) to “VIDEO.”
NOTE: To use your TV as a VCR monitor, set the VIDEO/TV selector on the TV (Monitor/Receiver) to “VIDEO.”
Note to CATV system installer:
This
reminder
is
provided
to
call
the
CATV
system
installer's
attention
to
Article
820-40
of
the
NEC
in
USA
{and
to
the
Canadian
Electricat
code
in
Canada)
that
provides
guidelines
for
proper
grounding
and,
in
particular,
specifies
that
the
cable
ground
shall
be
connected
to
the
grounding
system
of
the
building,
as
close
to
the
point
of
cable
entry
as
practical.

Panasonic Omnivision PV-2601 Specifications

General

Brand	Panasonic
Model	Omnivision PV-2601
Category	VCR
Language	English
