Panasonic PT-AX200

S PEC F ILE
PT-AX200
High-Definition Home Cinema Projector
As of October 2008 < 4 >
271
300
103
395
52
112
121
84
309
(10-21/32)
(11-25/32)
(4-21/16)
(15-17/32)
(2-1/16)
(4-13/32)
(4-3/4)
(3-5/16)
(12-5/32)
unit : mm (inch)
NOTE: This illustration is not drawn to scale.

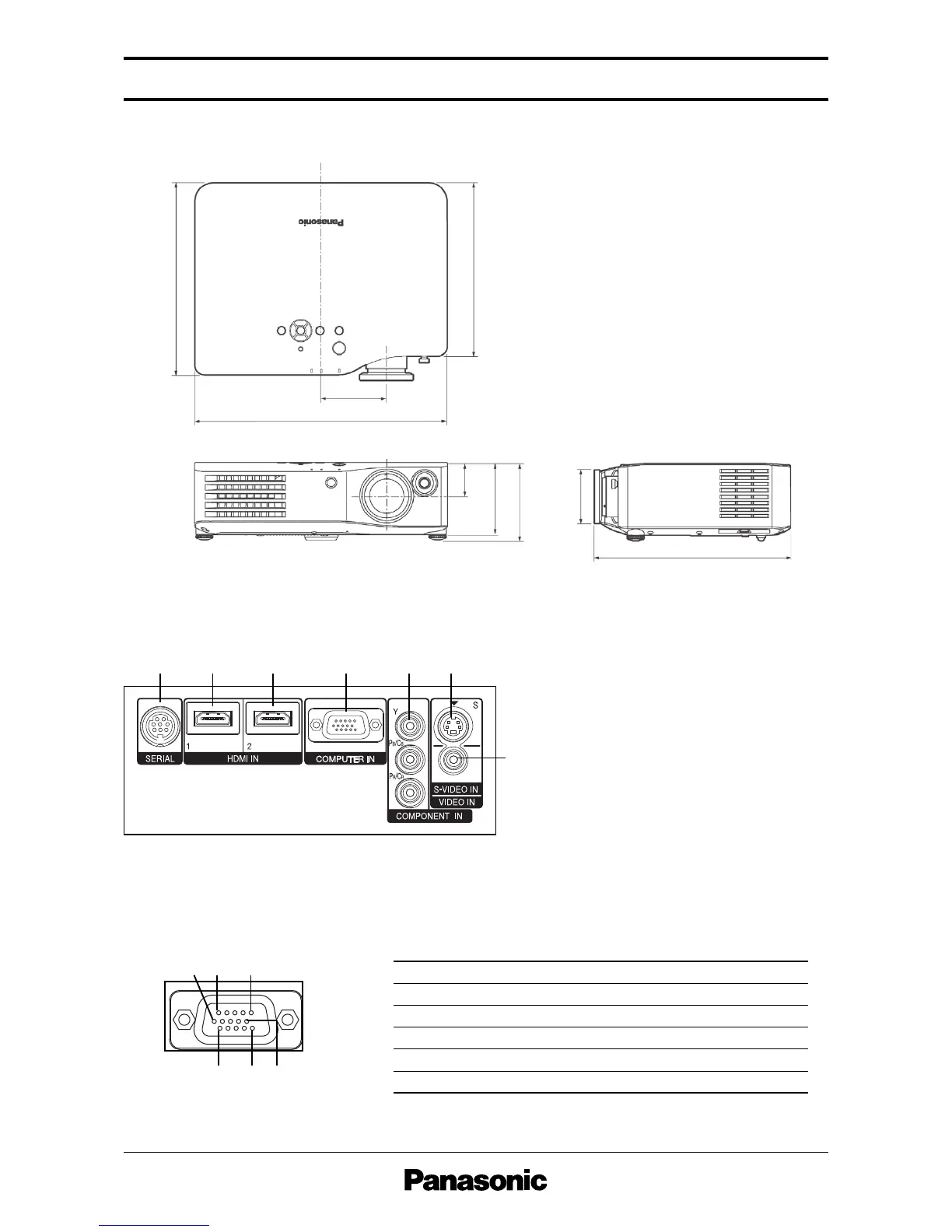

Dimensions
Terminals
RGB IN connector pin assignment
1 Serial input
2 HDMI 1 input
3 HDMI 2 input
4 Computer input
5 Component (Y/P
B/PR) Input
6 S-Video input
7 Video input
no.
1
2
3
4
5
no.
6
7
8
9
10
no.
11
12
13
14
15
signal
R
G
B
GND
GND
signal
GND
GND
GND
NC
GND
signal
GND
NC
HD/SYNC
VD
NC
12 4 56
7
3
1
116 15
510
D-sub HD 15-pin, female
