Panasonic PT-D5600E

59
ENGLISH
>PC< TBMU448
RGB 2 IN
VD SYNC/HD B/P
B
G/Y
R
R/P
SERIAL
REMOTE 1
REMOTE 2
IN OUT
LAN
DVI-D IN
RGB 1 IN
VIDEO IN
S-VIDEO IN
IN OUT
86.5
167 157
530
436
368 425 441
4
12
R30
478.5

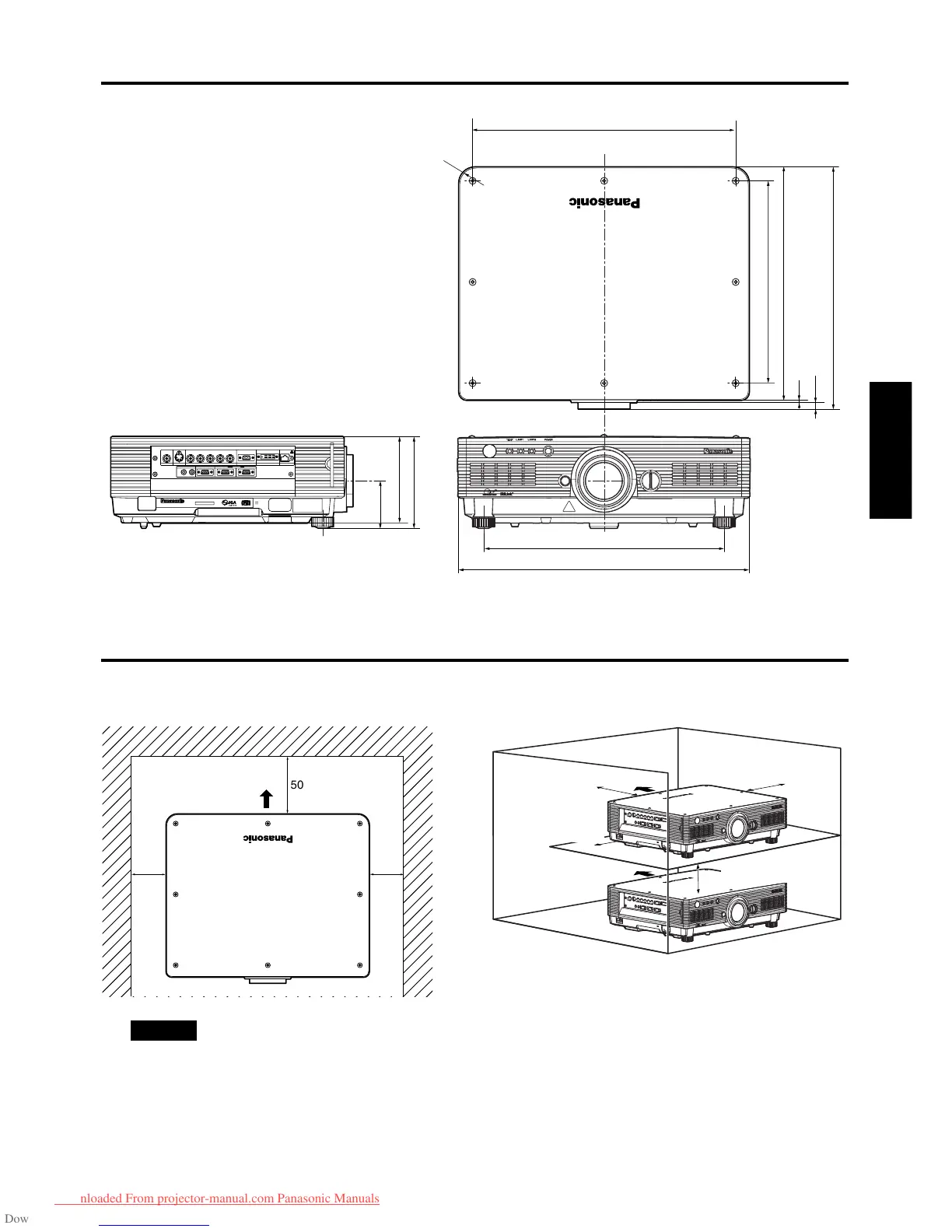

Dimensions
unit : mm
;;
;
50 cm or more
Exhaust
30 cm or more 30 cm or more
Installation dimensions diagram
• Leave a clearance of at least 50 cm so that the ventilation opening on the rear panel will not be
blocked.
• Be careful not to retain exhausted air on the back side of the main unit. Also take steps to ensure
that the hot air blown out from the air exhaust outlet will not be sucked into the air intake.
• Install with clearances of at least 30 cm provided for the side panels to enable the air filter to be
removed and re-installed.
• When the projector is to be placed inside a box and used, leave the clearances shown in Fig. 2
and ensure that the temperature during operation remains within the 0 to 35 °C range.
Attenzione
(Figure 1 :
Dimensions applying when one unit is used)
50 cm or more
50 cm or more
Exhaust
50 cm or more
10 cm or more
Exhaust
(Figure 2 :
Dimensions applying when two units are used)
