S PEC F ILE
PT-DZ10K
3-Chip DLP
™
Projector
H
(Width of
projected image)
V
(Height of
projected image)
0.12V
0.55V
0.55V
0.12V
0.2H0.2H
Standard postition of projected image
-15°
+15°
Shift range

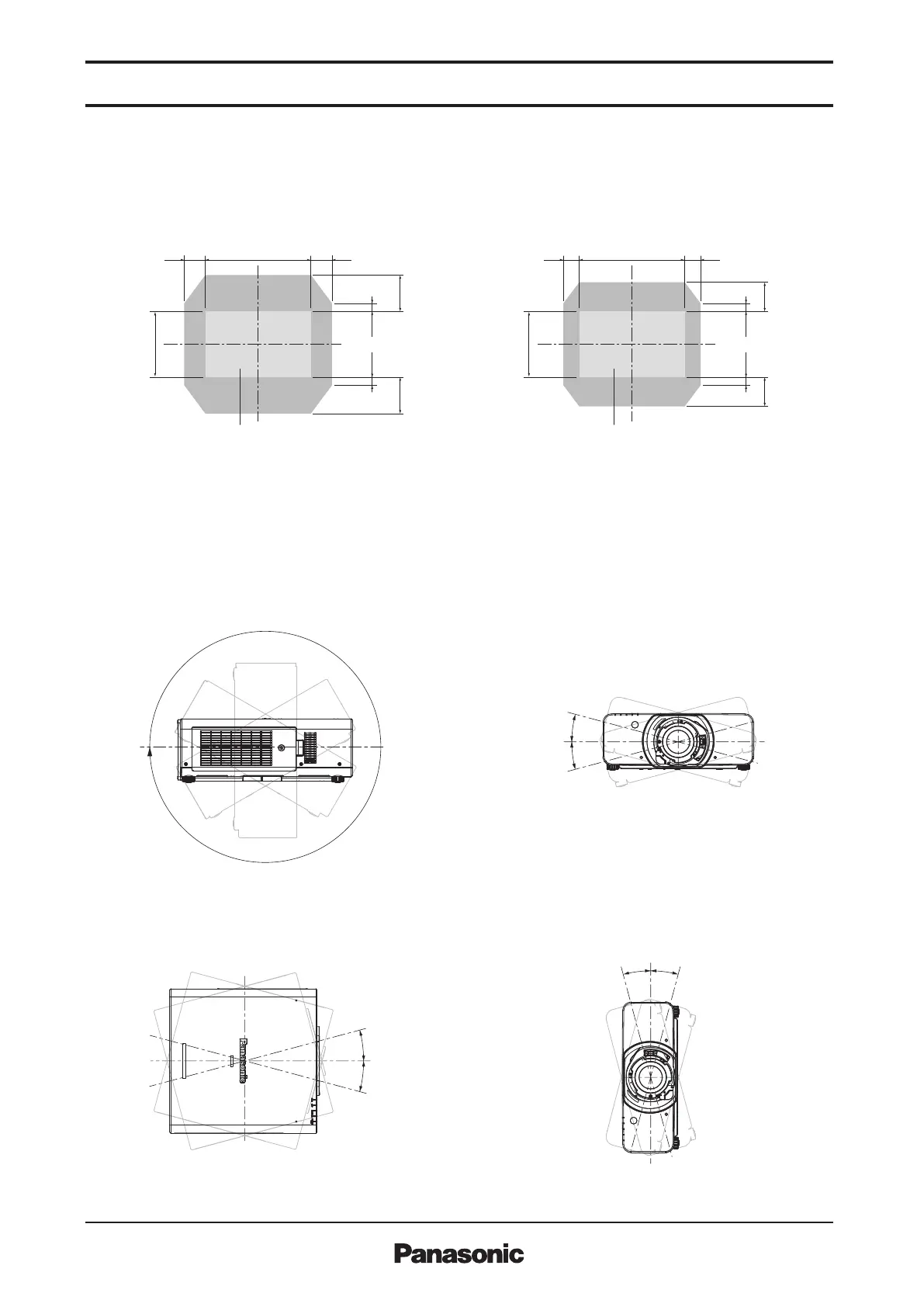

Optical axis shift function allows to shift the position of a projected image as shown below.
Installable angle
Install the projector at an angle within the range shown below.
• Vertical direction
The projector may be installed at a vertical
angle of 360°.
• Horizontal direction
The projector may be installed at a horizontal
angle of ±15°.
+15°
-15°
-15°
+15°
• Vertical direction in portrait mode with the
ET-LAD320P/LAD320PW mounted
The projector may be installed at a vertical
angle of ±15°.
• Horizontal direction in portrait mode with
the ET-LAD320P/LAD320PW mounted
The projector may be installed at a horizontal
angle of ±15°.
•
When the lens except the ET-D75LE6 is mounted
H
(Width of
projected image)
V
(Height of
projected image)
0.12V
0.44V
0.44V
0.12V
0.15H0.15H
Standard postition of projected image
• When the ET-D75LE6 is mounted
NOTE: Because the ET-D75LE50 is a fixed short-throw lens, the lens shift function cannot be used with it.
NOTE: The projector cannot be vertically installed all by itself. Also, the terminal side must face downward when vertically installed.
360°
