Panasonic PT-EW630U

-28-
Mechanical Disassembly

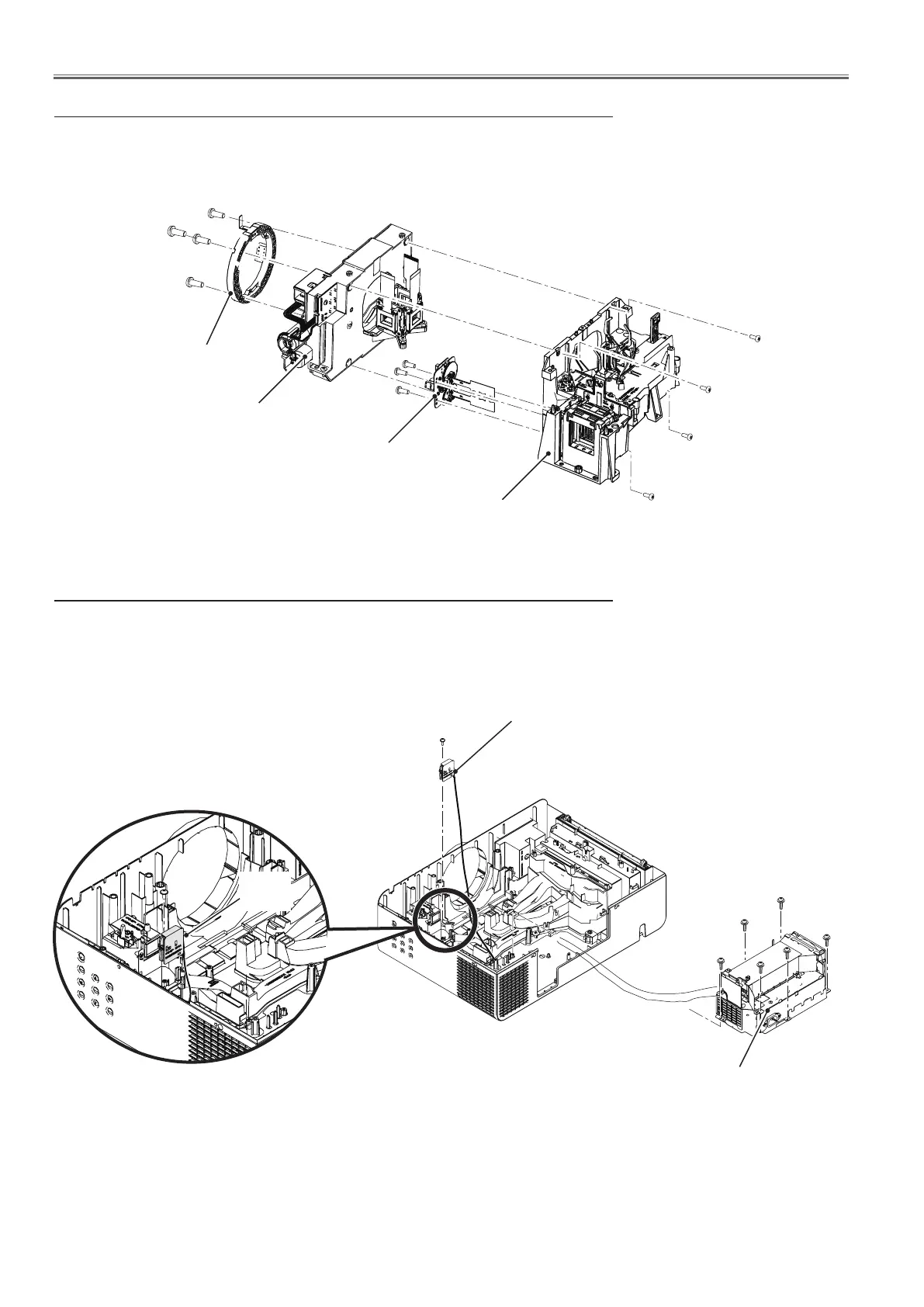

7-1. Lens shift assy and Iris assy removel
1. Remove 4 screws-A (M3x8) to take the lens shift assy off.
2. Remove 4 screws-B (M3x14) to take the lens mount off.
3. Remove 3 screws-C (T3x8) to take the Iris assy.
B
B
B
A
A
A
A
Lens mount
Lens shift assy
8. Power box and thermal fuse (SW902) removal
1. Remove 3 screws-A (M3x10) and 3 screws-B (T3x10) to remove the Power
Box assy.
2. Remove 1 screw-C (T3x8) and pull the SW902 upward off.
A
B
A
B
B
A
C
Thermal fuse(SW902)
Power box assy
SW902
B
C
C
C
Iris assy
Optical unit assy
