Panasonic PT-EW630U - Condenser Lens Assy Removal

-36-
Optical Parts Disassembly

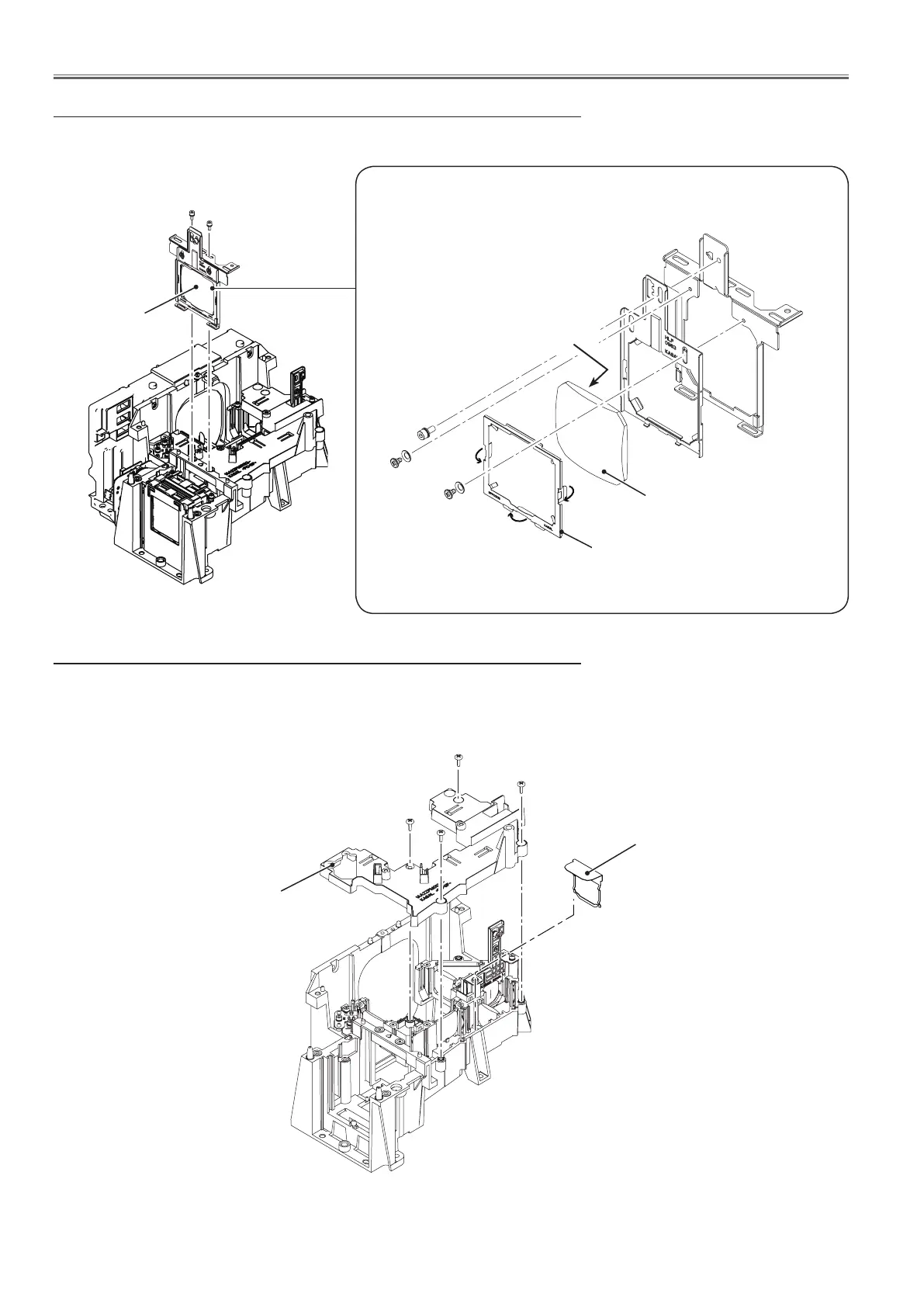

4. Condenser lens assy removal
1. Remove 2 screws-A (M2.5x6) and pull the condenser lens assy upward.
Condenser lens
assy
Condenser
lens
Stopper
M2x4
M2x4
M2.5x6
A
A
5. Optical parts in the optical unit removal
1. Remove 4 screws-A (T3x12) to take the optical unit top off and then remove
the light shield.
A
A
A
A
Optical unit top
Light shield
Flat surface
side
