Optical Adjustments
Yellow/magenta color offset

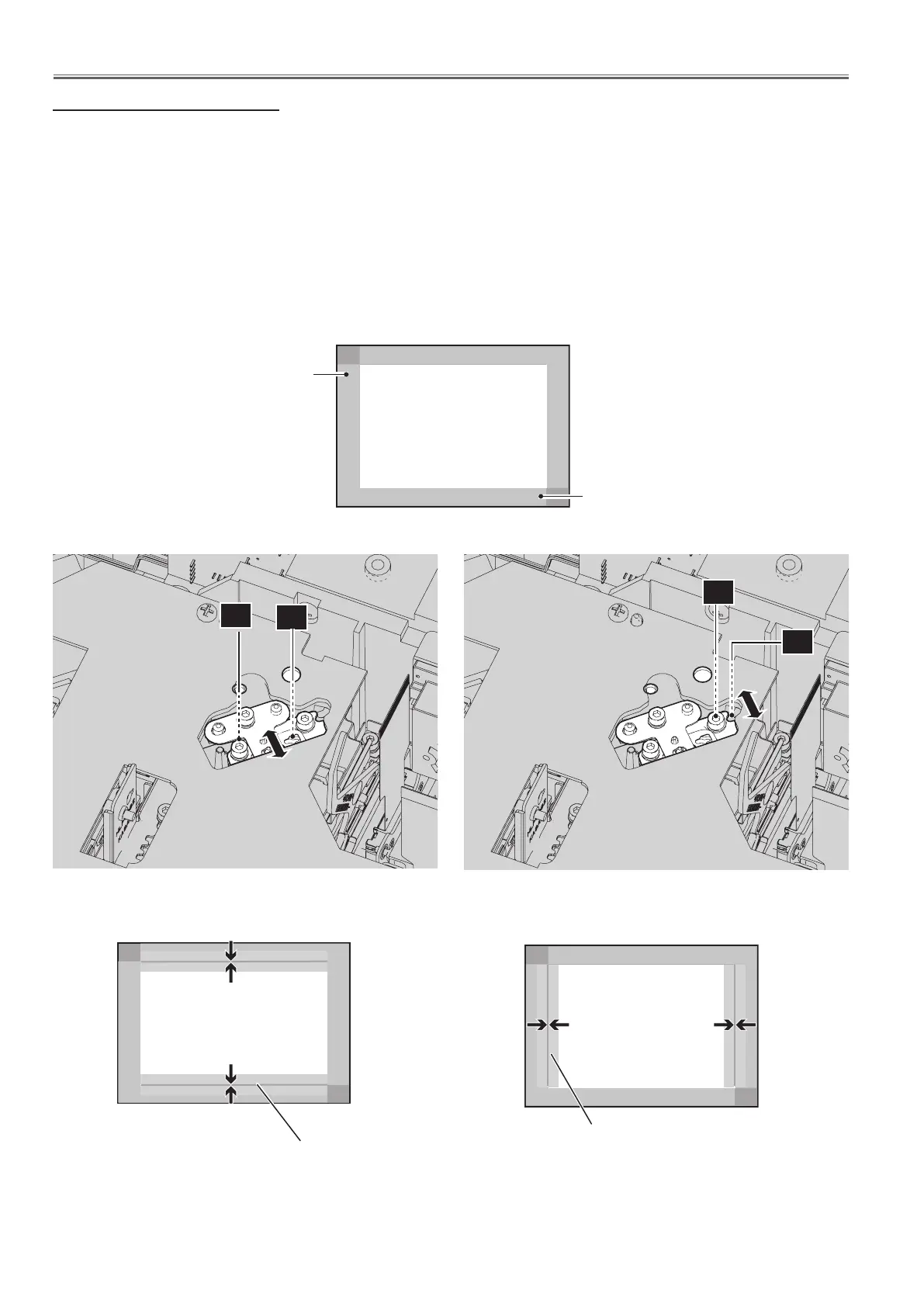

1-2. Mirror (B) adjustment
1 Loosen 1 screw E and 1 screws G.
2 Move the Mirror-B to disappear the color band (Yellow/Magenta) on
the top/bottom and left/right of the screen.
1) Insert a slot driver into the slot F and turn it to move the image
vertically as shown in Fig.1-4.
2) Insert a slot driver into the slot H and turn it to move the image
horizontally as shown in Fig.1-3,
3 Tighten screws E and G to fix the Mirror-B unit.
E
F
G
H
Cyan/Magenta
Magenta/Cyan
(Target screen image)
Fig.1-3 Fig.1-4
Yellow/magenta color offset
To Next Page
