Panasonic PT-EX800Z

Chapter 2 Getting Started — Connecting
ENGLISH - 43

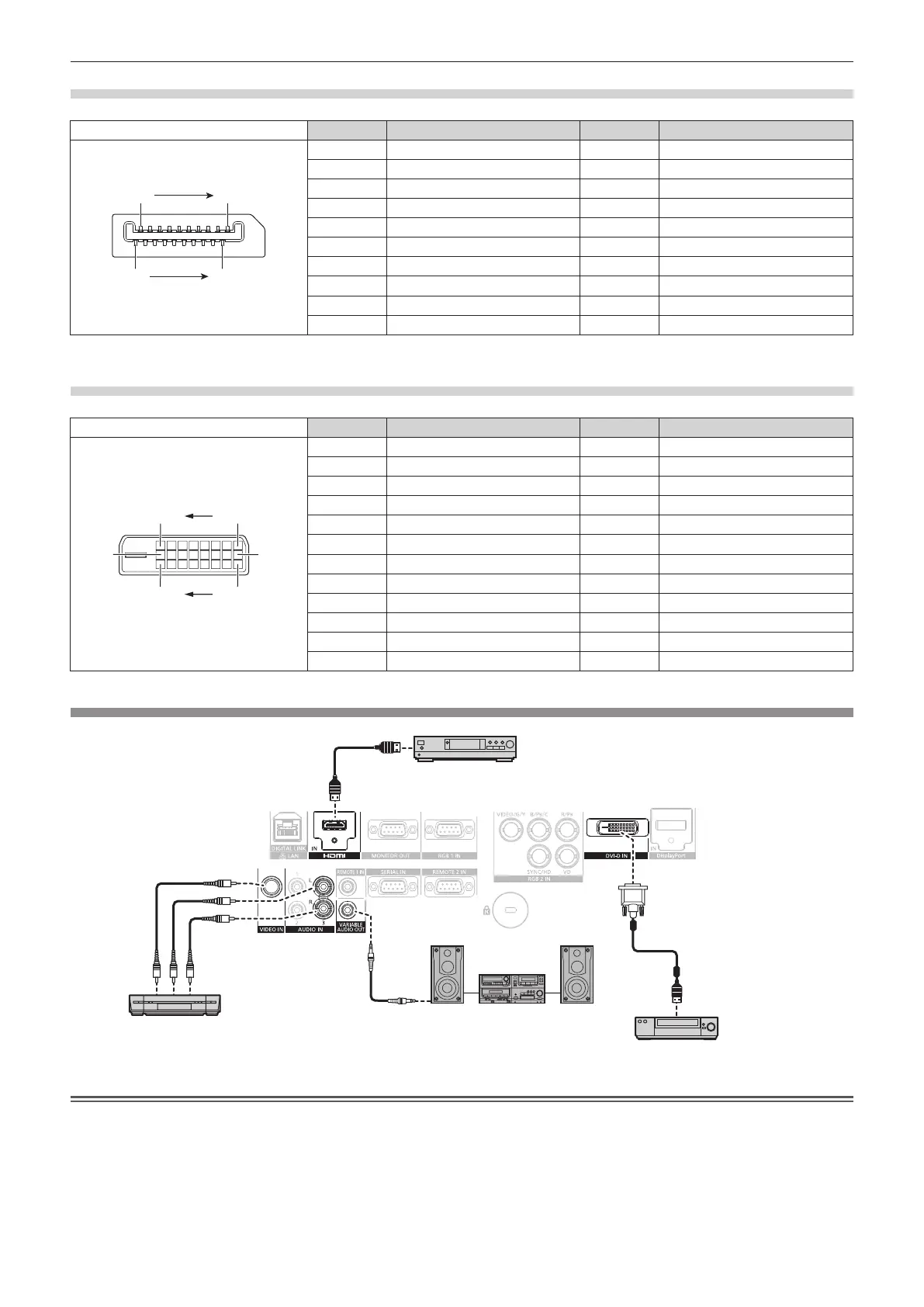

<DisplayPort IN> terminal pin assignments and signal names
Outside view Pin No. Signal name Pin No. Signal name
Even-numbered pins of (2) to (20)
(1) (19)
(2) (20)
Odd-numbered pins of (1) to (19)
(1) MainLane
- 3 (11) GND
(2) GND (12) MainLane+0
(3) MainLane+3 (13) GND
(4) MainLane
- 2 (14) GND
(5) GND (15) Aux+
(6) MainLane+2 (16) GND
(7) MainLane
- 1 (17) Aux -
(8) GND (18) Hot plug detection
(9) MainLane+1 (19) GND
(10) MainLane
- 0 (20) DP_PWR
*1
*1 Supplies power of +3.3 V/0.5 A Max. Use at the rated power or less.
<DVI-D IN> terminal pin assignments and signal names
Outside view Pin No. Signal name Pin No. Signal name
(17)(24)
(16)
(9)
(1)(8)
(1) T.M.D.S data 2
-
(13) —
(2) T.M.D.S data 2+ (14) +5 V
(3) T.M.D.S data 2/4 shield (15) GND
(4) — (16) Hot plug detection
(5) — (17) T.M.D.S data 0
-
(6) DDC clock (18) T.M.D.S data 0+
(7) DDC data (19) T.M.D.S data 0/5 shield
(8) — (20) —
(9) T.M.D.S data 1
-
(21) —
(10) T.M.D.S clock1+ (22) T.M.D.S clock shield
(11) T.M.D.S data 1/3 shield (23) T.M.D.S clock+
(12) — (24) T.M.D.S clock
-
Connecting example: AV equipment
Audio device
Blu-ray disc player
DVD player with HDMI terminal (HDCP)
VCR (with built-in TBC)
Attention
f Always use one of the following when connecting a VCR.
g A VCR with built-in time base corrector (TBC)
g A time base corrector (TBC) between the projector and the VCR
f If nonstandard burst signals are connected, the image may be distorted. In such case, connect the time base corrector (TBC) between the
projector and the external devices.
