Panasonic RAMSA WR-DA7 - Cables and Connections

1-4

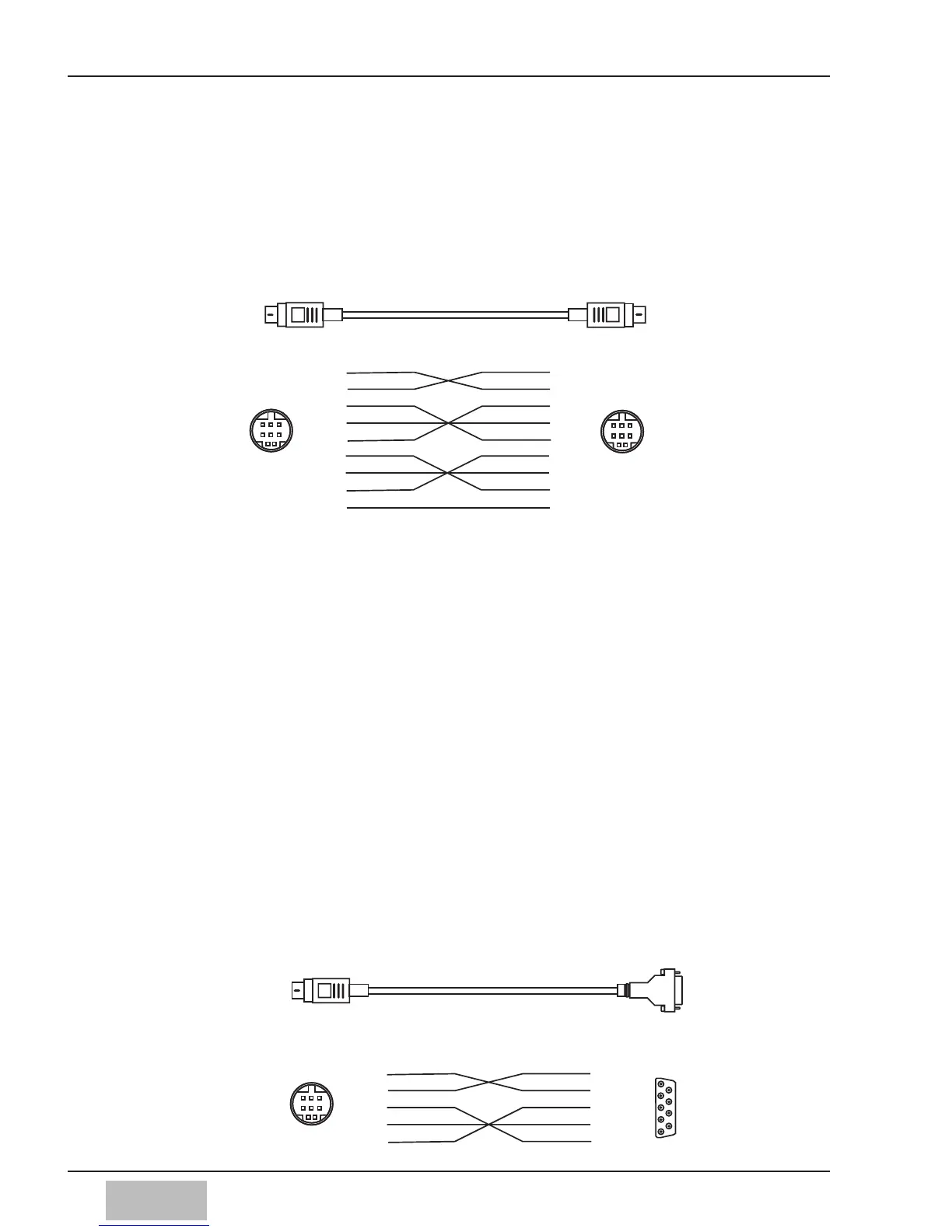

Cables and Connections
For Macintosh Computer
Use ONLY the recommended serial cable (cross cable) with a wiring
pattern as described below. This cable is the same cable used for the
ImageWriter II printer. Do NOT use a standard Macintosh Serial cable.
Use this to connect between the modem port or printer port of the
computer and the TO PC port of the DA7.
For Windows/95 or PC compatible computer
Use ONLY a serial cable with a wiring pattern as described below. This
cable is available from Panasonic Pro Audio in the United States, part
number DA/DB-DIN. Do NOT use a standard serial cable.
Use this cable to connect between the serial port (COM1, COM2, COM3
or COM4) of your PC and the TO PC port of the DA7.
When using a Windows computer, use the following cable:
Pinout configuration of the cable. When building this cable, connect the
pins in the following manner:
DA7 port (Mini DIN 8p) pin # PC port (D-sub 9p) pin #
1 . . . . . .8
2 . . . . . .7
3 . . . . . .2
4 . . . . . .5
5 . . . . . .3
7
8
3
5
2
1
2
3
4
5
Pin #
Pin #
1
2
3
4
5
6
7
8
Frame
1
2
3
4
5
6
7
8
Frame
Shield wire
Pin #
Pin #
Mini DIN 8 (Male) DB9 (Female)
Windows
Computer
TO PC of the DA7
Mini DIN 8 (Male)
Mini DIN 8 (Male)
TO PC of the DA7
MODEM or
Printer port of
Mac Computer
