11 Service Position
11.1. Checking Procedure
Note:
For the disassembling procedure, see Section 10.

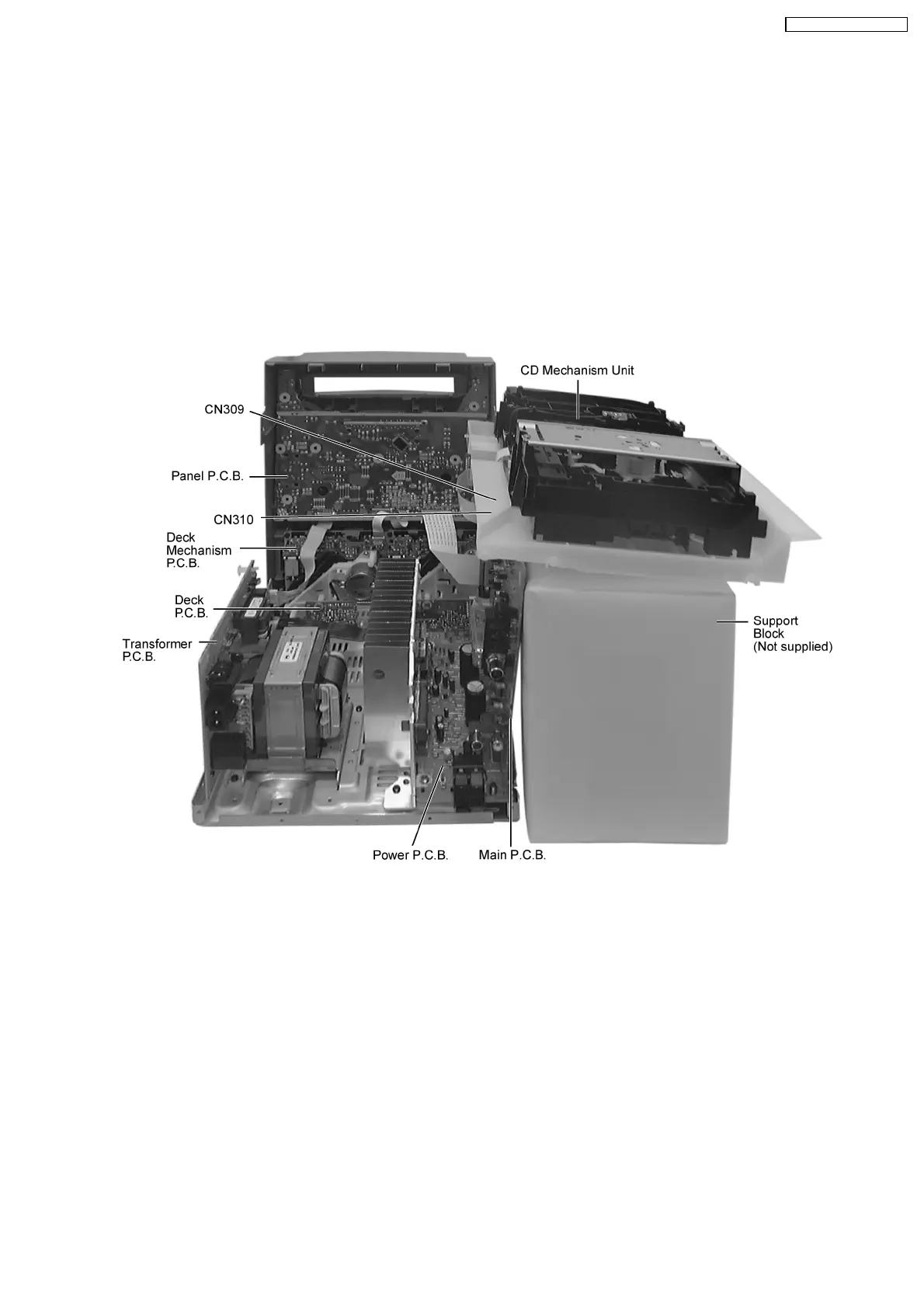

11.2. Checking the Main P.C.B., Power P.C.B. and Transformer P.C.B.
1. Remove Top Cabinet and Rear Panel.
2. Remove CD Lid.
3. Remove CD Mechanism Unit.
4. Connect FFC board (CN309 & CN310) from CD Mechanism Unit.
