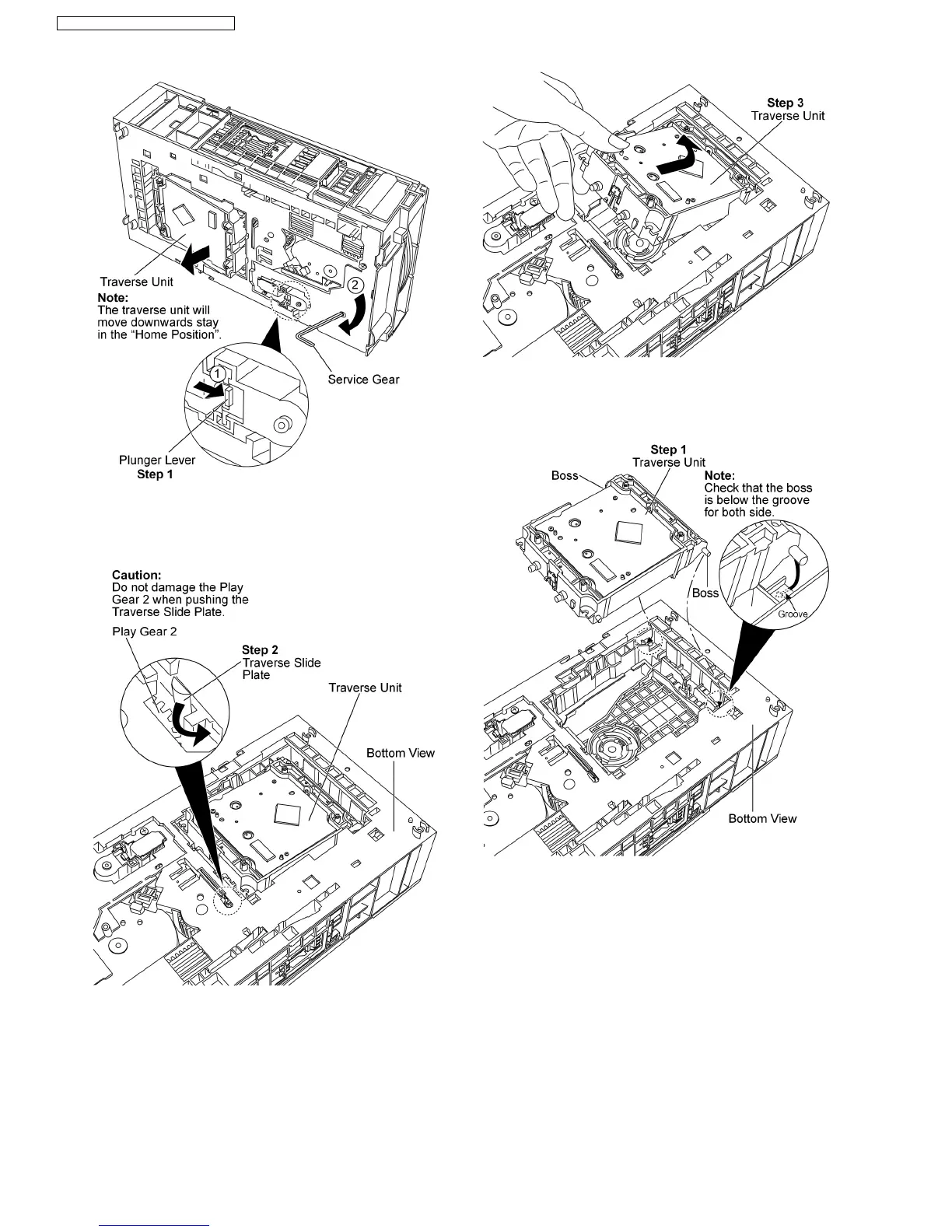

Step 1: Press and hold the plunger lever and rotate the
gear as arrows shown until it stop.
Step 2: Push the traverse slide plate as arrow shown to
release the traverse unit.
Caution: Do not exert strong force on the traverse
slide plate.
Step 3: Remove the traverse unit as arrow shown.
· Assembly of Traverse Unit
Step 1: Turn over the unit and install the traverse unit.
32
SA-AK240E / SA-AK240EB / SA-AK240EG
To Next Page
