Panasonic SA-AK240E - Optical Pickup Unit Disassembly

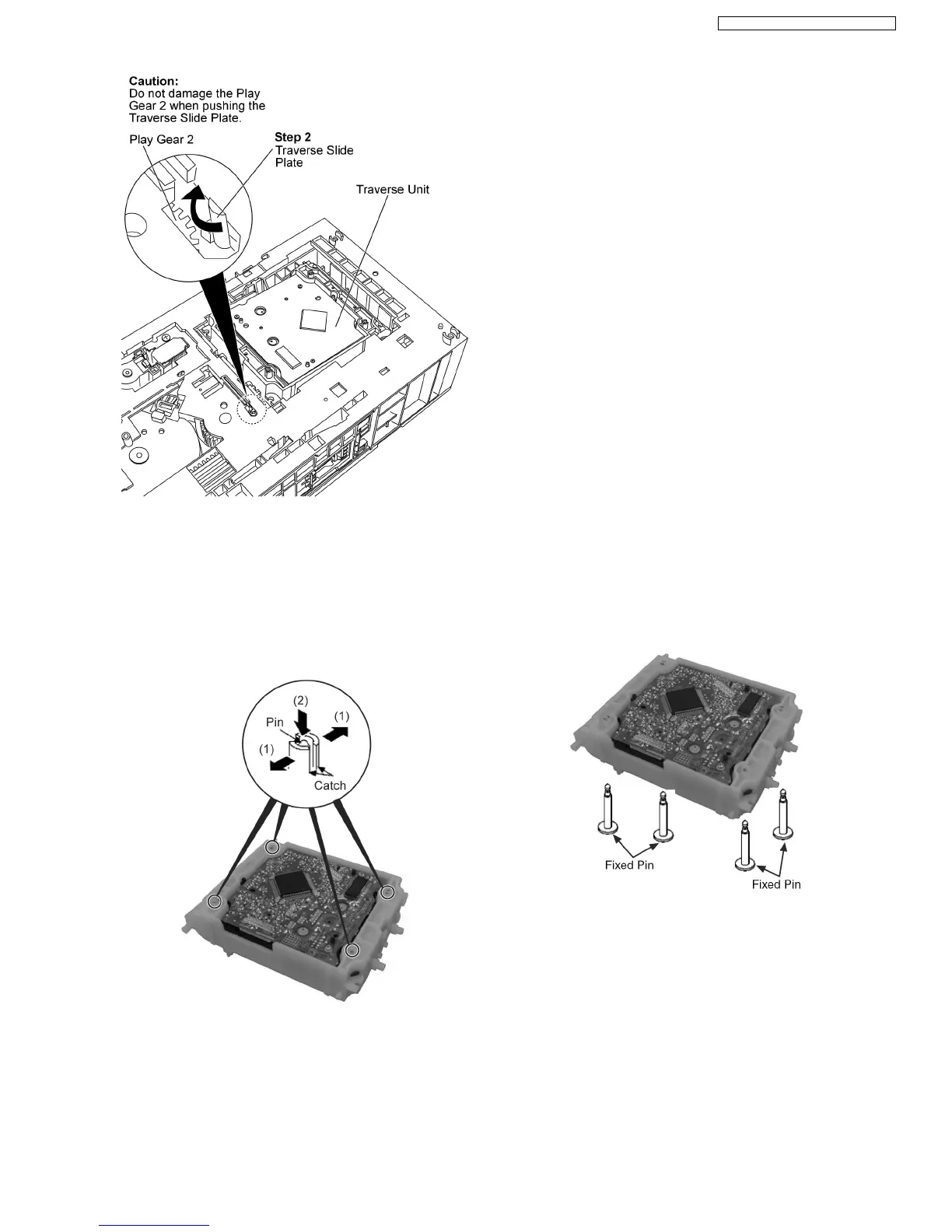

Step 2: Push the traverse slide plate as arrow shown to
lock the traverse unit.
Step 1 Pull out FFC.
Step 2 Widening the catch, push the pin in.
Step 3 Remove 4 pins.
10.15. Disassembly of optical pickup unit (CD mechanism)
· Follow the (Step 1) - (Step 2) of Item 10.4 - Disassembly of Top Cabinet
· Follow the (Step 1) - (Step 4) of Item 10.6 - Disassembly of CD Changer Unit
· Follow the (Step 1) - (Step 2) of Item 10.14 - Disassembly of Traverse Unit
33
SA-AK240E / SA-AK240EB / SA-AK240EG
