Panasonic SA-EN37 - Disassembly of Speakers

71 pages

Save Page as PDF

To Next Page

To Next Page

To Previous Page

To Previous Page

Loading...

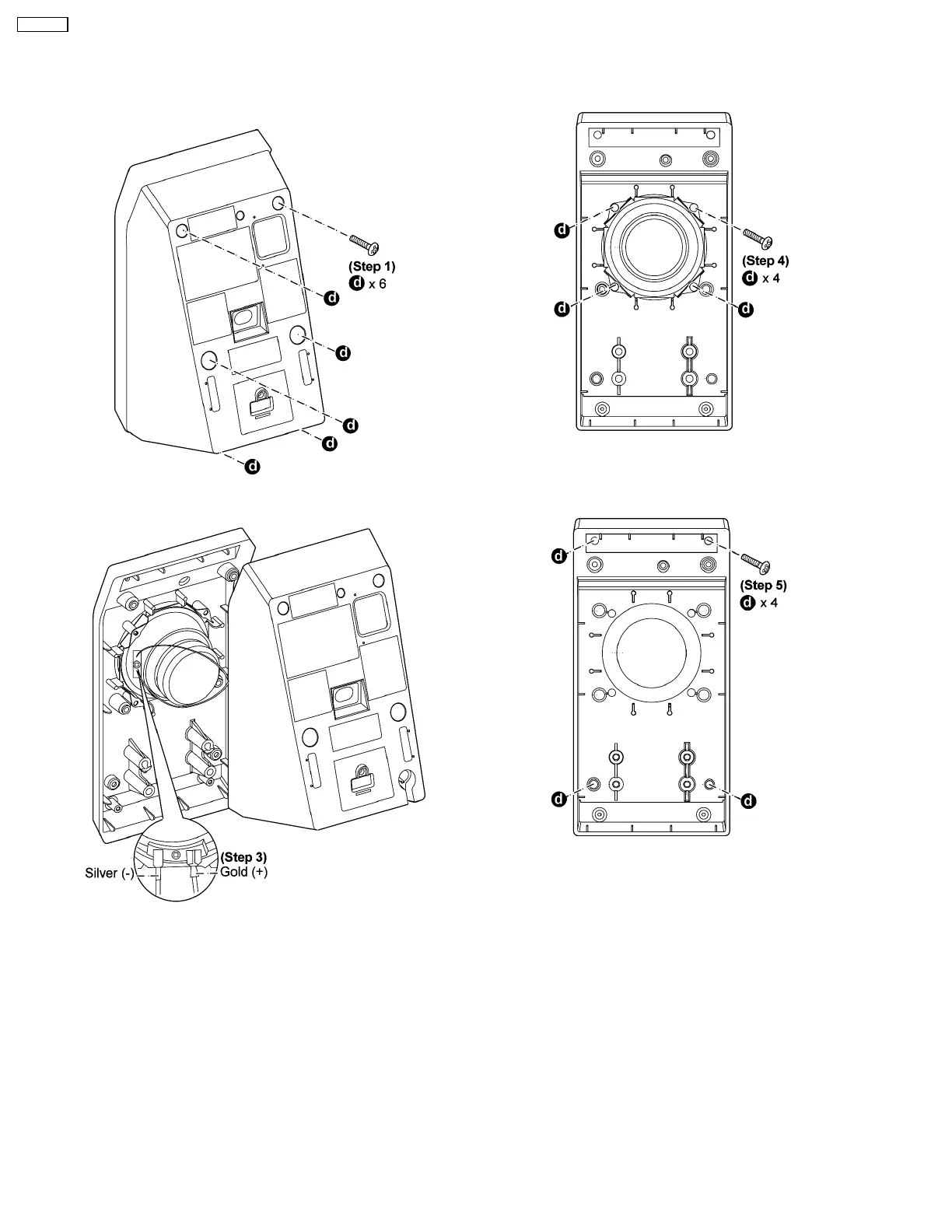

Step 1 Remove 6 screws.

Step 2 Remove the back cabinet ass’y..

Step 3 Unsolder the lead wires, silver (-) and gold (+).

Step 4 Remove 4 screws.

· Disassembly of net frame ass’y

Step 5 Remove 4 screws.

9.14. Disassembly of Speakers

9.14.1. Disassembly of the speaker (SB-EN37) - (R)

26

SC-EN37P
