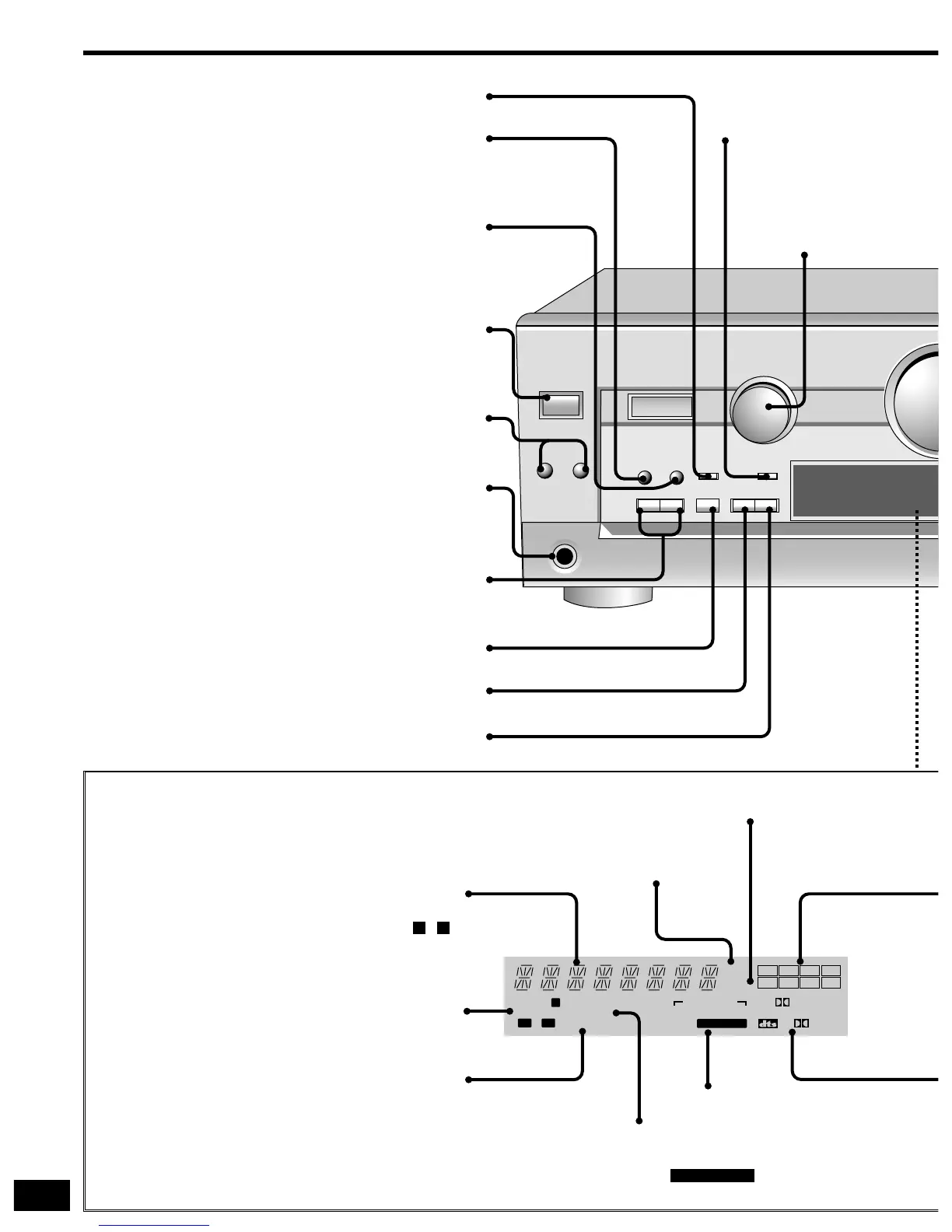

Standby/on button [POWER, 8]
Press to switch the unit from on to standby mode or vice versa.
In standby mode, the unit is still consuming a small amount of power.
Speaker A/B select buttons [SPEAKERS, A, B]
Turning the speakers off automatically engages the STEREO mode
(when listening through headphones, for example).
If your speakers have an impedance under 6 Ω
Press and hold [A] or [B] until “LOW IMP” lights up on the display.
Note that when “LOW IMP” is on, SPEAKERS A and B cannot be used
at the same time.
Help/reset button [-HELP, –RESET]
Press if an error message appears. A message offering a possible
solution scrolls across the display.
To reinitiate the unit’s settings, press and hold until “RESET” appears.
Memory button [MEMORY]
For presetting radio stations.
Headphone jack [PHONES]
Plug type: 6.3 mm (1/4") stereo
Avoid listening for prolonged periods of time to prevent hearing
damage.
Turn the speakers off when using the headphones.
Tuning buttons [TUNING, 2, 1]
For tuning the radio and selecting preset stations.
Press and hold until the frequency starts scrolling to start automatic
tuning. Tuning stops when a station is found.
Tuning intervals: FM–0.2 MHz, AM–10 kHz
Preset channel button [PRESET]
Press to allow preset station selection with [TUNING, 2, 1].
Band select/FM mode select button
[-BAND, –FM MODE]
For switching between AM and FM.
If reception is poor in FM, press and hold until “MONO” appears to
switch to monaural mode.
DSP sound mode selector
[DSP SOUND MODE]
For selecting “STEREO”,
“SURROUND” or “SFC”.
Dolby Pro Logic
22
mode select button
[DOLBY PRO LOGIC
22
]
Use when “% PRO LOGIC 2” lights in the SURROUND mode.
NEO:6 mode select button [NEO:6]
Use when “NEO:6” lights in the ENHANCED SURROUND mode.
Enhanced surround mode
select button
[ENHANCED SURROUND]
DSP sound mode
indicators
[SOUND MODE, STEREO,
SURROUND, SFC,
]
Show the current DSP sound mode.
ENHANCED
Frequency unit indicators [kHz, MHz]
kHz: AM, or PCM sampling frequency
MHz: FM
The display
Speaker indicators [LOW IMP, SPEAKERS , ]
LOW IMP: You have switched to LOW IMP because you have
connected speakers with an impedance under 6 Ω.
SPEAKERS Å: Sound is output from speakers connected to the
front A, surround, and center terminals.
SPEAKERS ı: Sound is output only from speakers connected to
the front B terminals.
SPEAKERS Åı: Sound is output from speakers connected to
the front A and B terminals.
BA
Radio indicators [TUNED, STEREO, MONO, ˜]
TUNED: A station is tuned.
MONO: You have switched to monaural mode with [-BAND, –FM
MODE] to improve reception.
STEREO: A stereo FM broadcast is tuned.
˜:Lights during presetting.
General display
Shows the input mode, radio frequency, and other general
information.
Input overload indicator [OVER]
Lights when input exceeds rated values.
Turn the A/D attenuator on if this occurs
frequently (
\
page 14).
A/D attenuator indicator
[ATT]
Lights when the A/D attenuator is
working.
