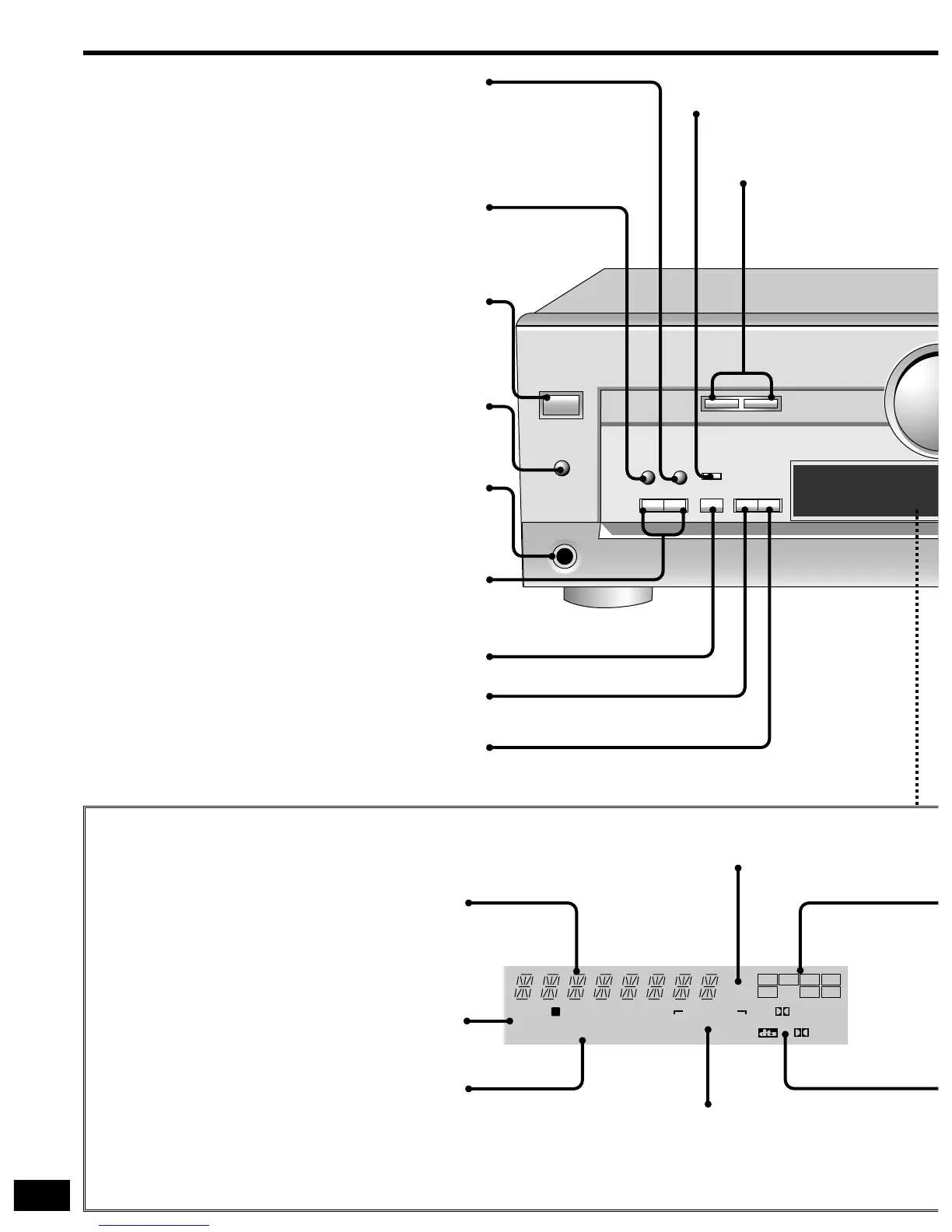

Standby/on button [POWER, 8]
Press to switch the unit from on to standby mode or vice versa.
In standby mode, the unit is still consuming a small amount of power.
Speaker on/off button [SPEAKERS]
Turning the speakers off automatically engages the STEREO mode
(when listening through headphones, for example).
Help/reset button [-HELP, –RESET]
Press if an error message appears. A message offering a possible
solution scrolls across the display.
To reinitiate the unit’s settings, press and hold until “RESET” appears.
Memory button [MEMORY]
For presetting radio stations.
SFC mode select buttons
[SFC MODE, w, q]
For selecting the SFC mode
Headphone jack [PHONES]
Plug type: 6.3 mm (1/4") stereo
Avoid listening for prolonged periods of time to prevent hearing
damage.
Tuning buttons [TUNING, 2, 1]
For tuning the radio and selecting preset stations.
Press and hold until the frequency starts scrolling to start automatic
tuning. Tuning stops when a station is found.
Tuning intervals: FM–0.2 MHz, AM–10 kHz
Preset channel button [PRESET]
Press to allow preset station selection with [TUNING, 2, 1].
Band select/FM mode select button
[-BAND, –FM MODE]
For switching between AM and FM.
If reception is poor in FM, press and hold until “MONO” appears to
switch to monaural mode.
DSP sound mode select button [DSP SOUND MODE]
For selecting “STEREO”, “SURROUND” or “SFC”
DSP sound mode indicators
[SOUND MODE, STEREO, SURROUND, SFC]
Show the current DSP sound mode.
Frequency unit indicators [kHz, MHz]
kHz: AM, MHz: FM
The display
Dolby Pro Logic
22
mode select button
[DOLBY PRO LOGIC
22
]
Use when “% PRO LOGIC 2” lights in the SURROUND mode.
Speaker indicator [SPEAKERS]
Lights when the speakers are on.
General display
Shows the input mode, radio frequency, and other general
information.
Radio indicators [TUNED, MONO, STEREO, ˜]
TUNED: A station is tuned.
MONO: You have switched to monaural mode with [-BAND, –FM
MODE] to improve reception.
STEREO: A stereo FM broadcast is tuned.
˜:Lights during presetting.
