7.4. Disassembly of Top Cabinet

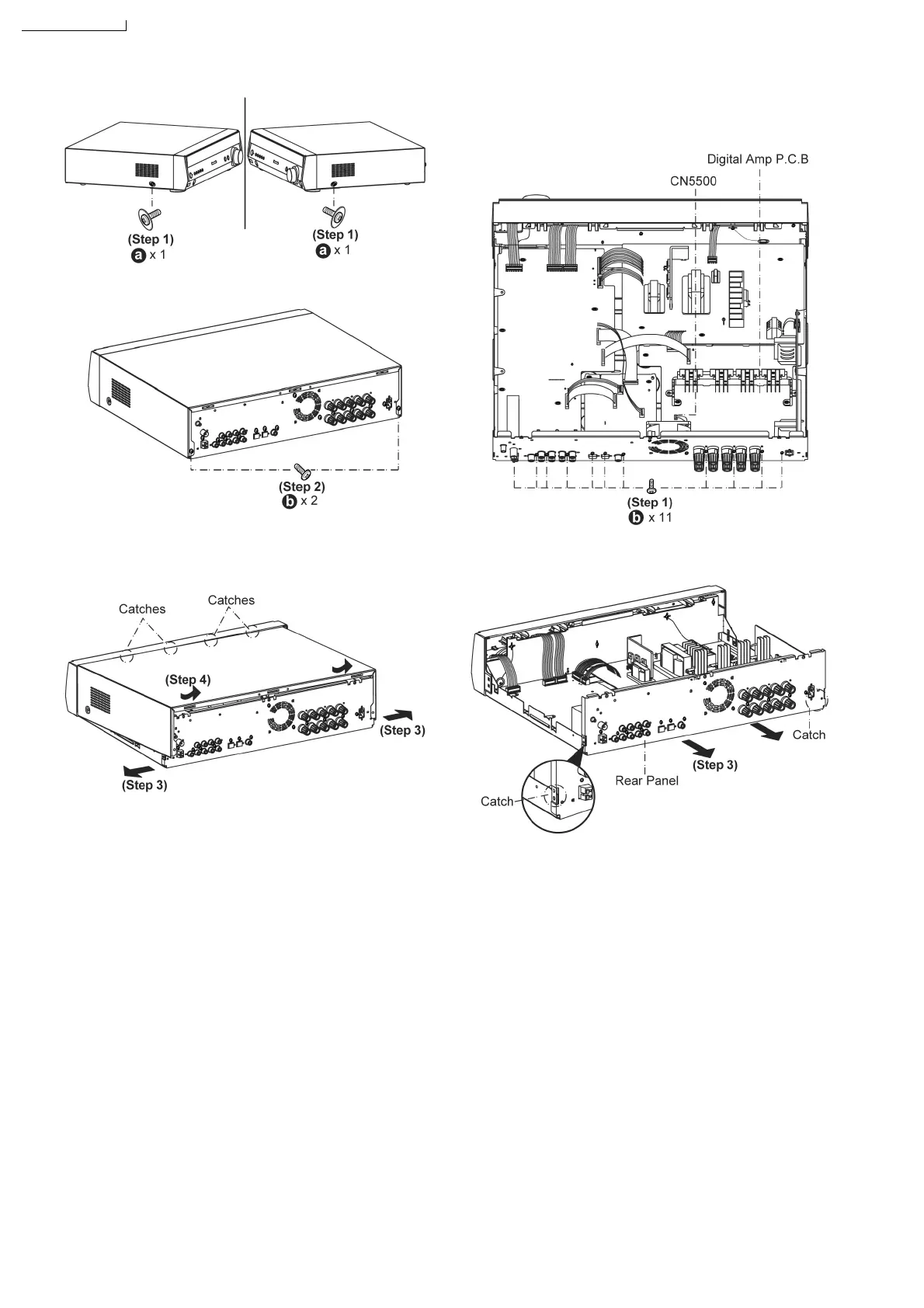

Step 1: Remove 1 screw at each side of the top cabinet.
Step 2: Remove 2 screws at rear panel.
Step 3:Lift the sides of the top cabinet outwards.
Step 4: Push the top cabinet in the direction of arrows to
release the catches.
7.5. Disassembly of Rear Panel
• Follow the
(Step 1)
-
(Step 4)
of item 7.4. - Disassembly of
Top Cabinet.
Step 1: Remove 11 screws at rear panel.
Step 2: Detach wire (CN5500) at Digital Amp P.C.B..
Step 3: Release 2 catches from the side and pull Rear Panel
backward as shown.
