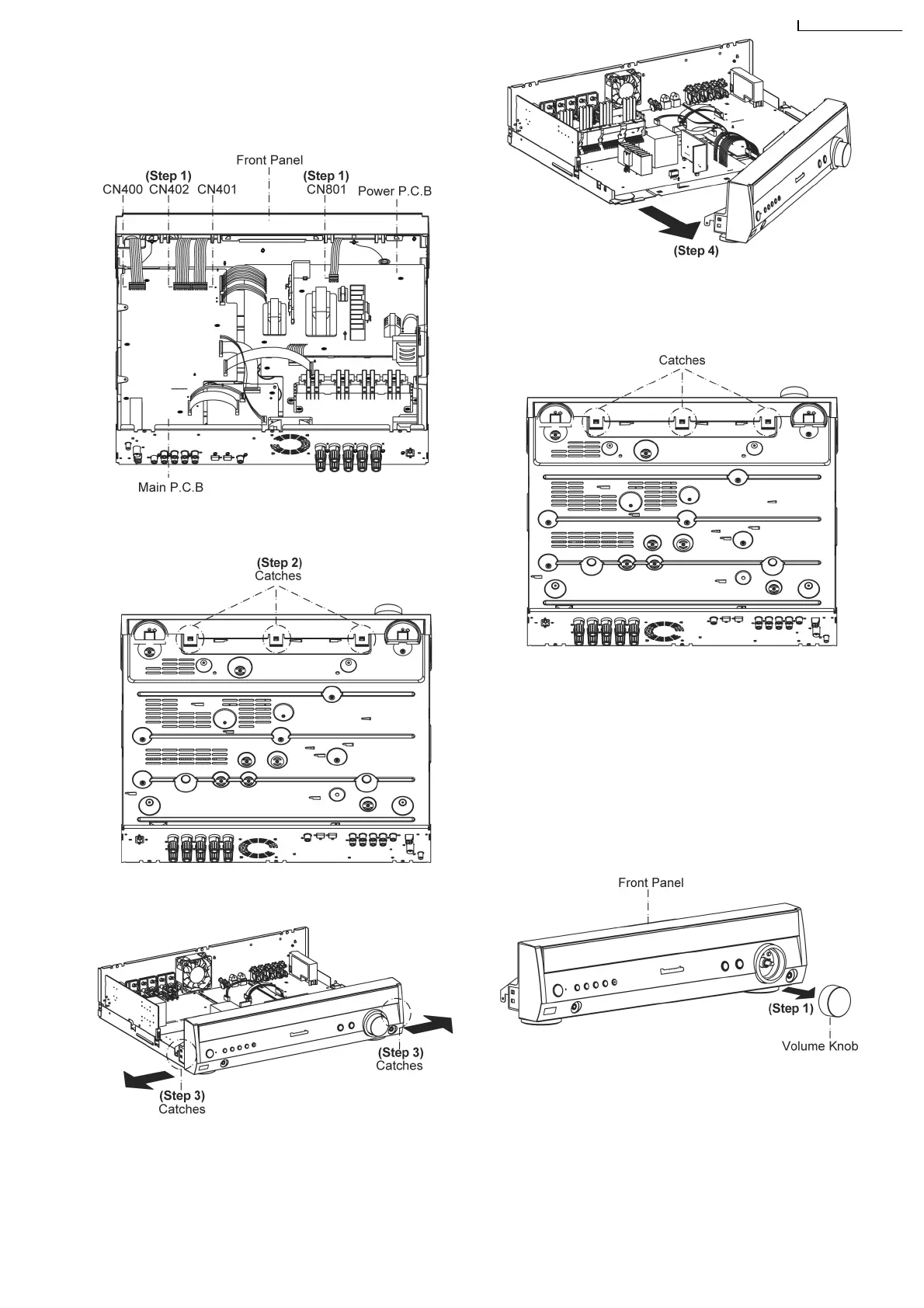

7.6. Disassembly of Front Panel
• Follow the
(Step 1)
-
(Step 4)
of item 7.4. - Disassembly of
Top Cabinet.
Step 1: Detach the wires on connections (CN400, CN402 &
CN401) on Main P.C.B. and (CN801) at Power P.C.B..
Step 2: Release 3 catches.
Step 3: Release 2 catches.
Step 4: Push forward the Front Panel as arrow shown.
•
Assembly of Front Panel.
Note:
Make sure all the guides are fix to the respective
locations as arrow shown.
7.7. Disassembly of Panel P.C.B.,
Music Port P.C.B. & Volume
P.C.B.
• Follow the
(Step 1)
-
(Step 4)
of item 7.4. - Disassembly of
Top Cabinet.
• Follow the
(Step 1)
-
(Step 4)
of item 7.6. - Disassembly of
Front Panel.
Step 1: Remove volume knob as shown in the picture.
Step 2: Remove 2 screws grounding wires as picture shown.
Caution:
Remember to screw the 2 grounding wires during assembly.
