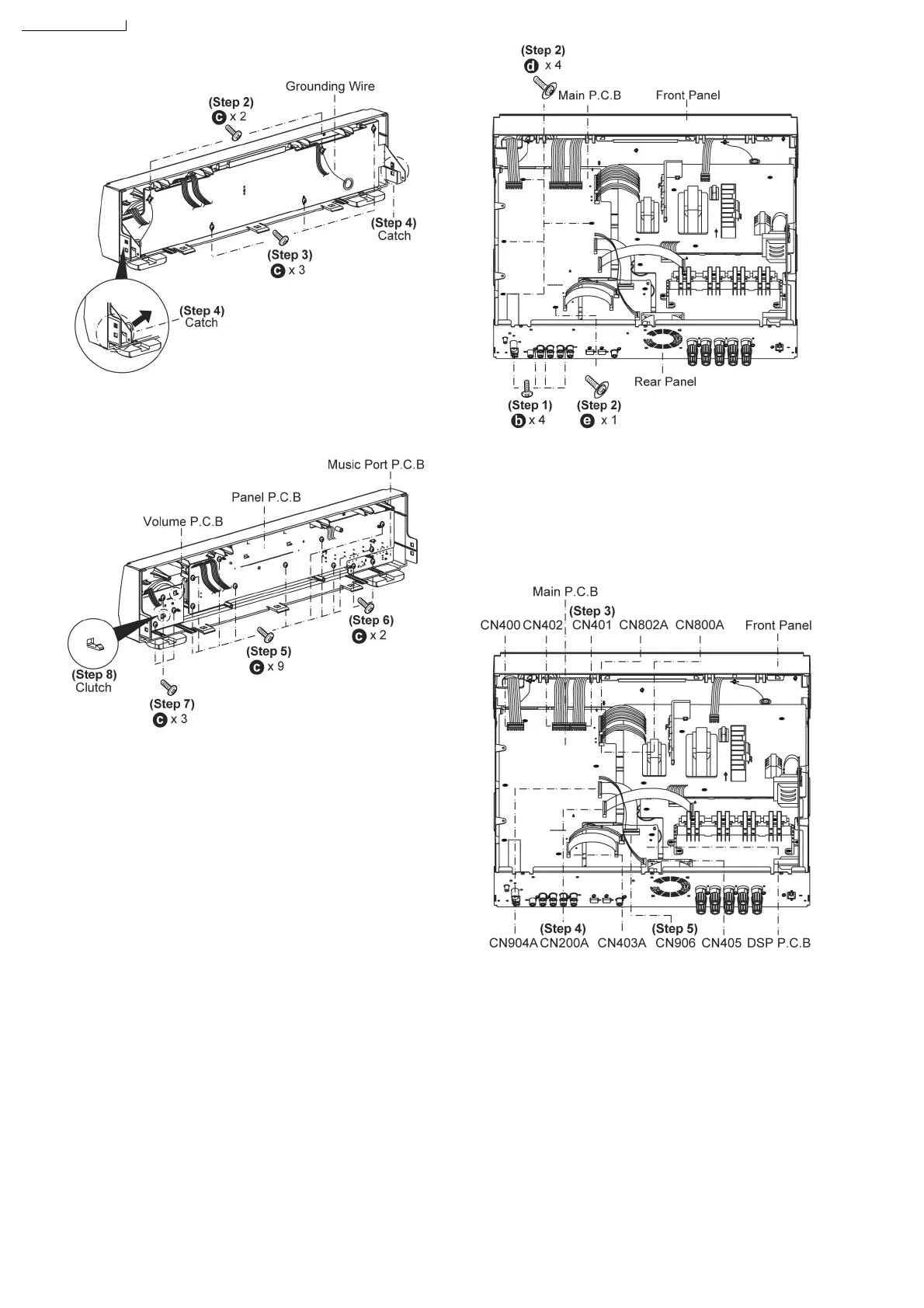

Step 3: Remove 3 screws as picture shown.
Step 4: Release the 2 catches and lift up the front Plate.
• Disassembly of Panel P.C.B. and Music Port P.C.B.
Step 5: Remove 9 screws at Panel P.C.B..
Step 6: Remove 2 screws at Music Port P.C.B..
• Disassembly of Volume P.C.B.
Step 7: Remove 3 screws at Volume P.C.B..
Step 8: Release 2 clutches.
7.8. Disassembly of Main P.C.B.
• Follow the (Step 1) - (Step 3) of item 7.4. - Disassembly of
Top Cabinet.
Step 1: Remove 4 screws at Rear Panel.
Step 2: Remove 5 screws on Main P.C.B..
Step 3: Detach wires at connectors (CN400, CN402, CN401,
CN800A & CN802A) on Main P.C.B..
Step 4: Detach FFC cables at connectors (CN904A, CN200A &
CN403A) on Main P.C.B..
Step 5: Detach wires at connectors (CN405 & CN906) on DSP
P.C.B..
Step 6: Lift up and remove the Main P.C.B. as picture shown.
Caution: Please handle the JACKs at Rear Panel with care
while removing Main P.C.B..
