Panasonic SA-HR45E - Page 21

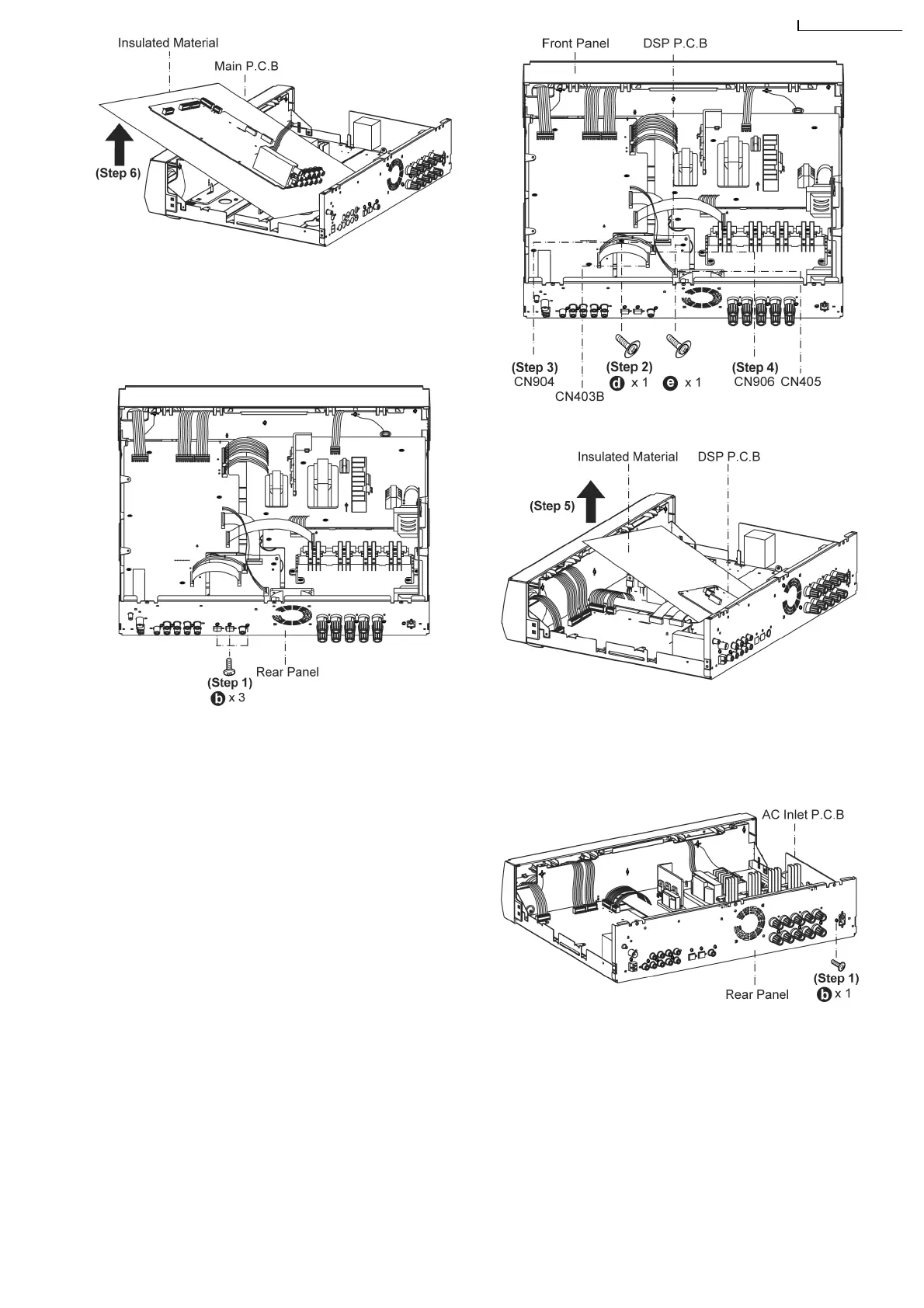

7.9. Disassembly of DSP P.C.B.
• Follow the
(Step 1)
-
(Step 4)
of item 7.4. - Disassembly of
Top Cabinet.
Step 1: Remove 3 screws at rear panel.
Step 2: Remove 2 screws at DSP P.C.B..
Step 3: Detach FFC cables (CN904B & CN403B) at DSP Main
Step 4: Detach wires (CN906 & CN405) at DSP P.C.B..
Step 5: Lift up and remove DSP P.C.B as shown in picture.
7.10. Disassembly of AC Inlet P.C.B.
• Follow the
(Step 1)
-
(Step 4)
of item 7.4. - Disassembly of
Top Cabinet.
Step 1: Remove 1 screw at Rear Panel.
Step 2 : Remove 1 screw at AC Inlet P.C.B..
