Panasonic SA-HR45E - Page 33

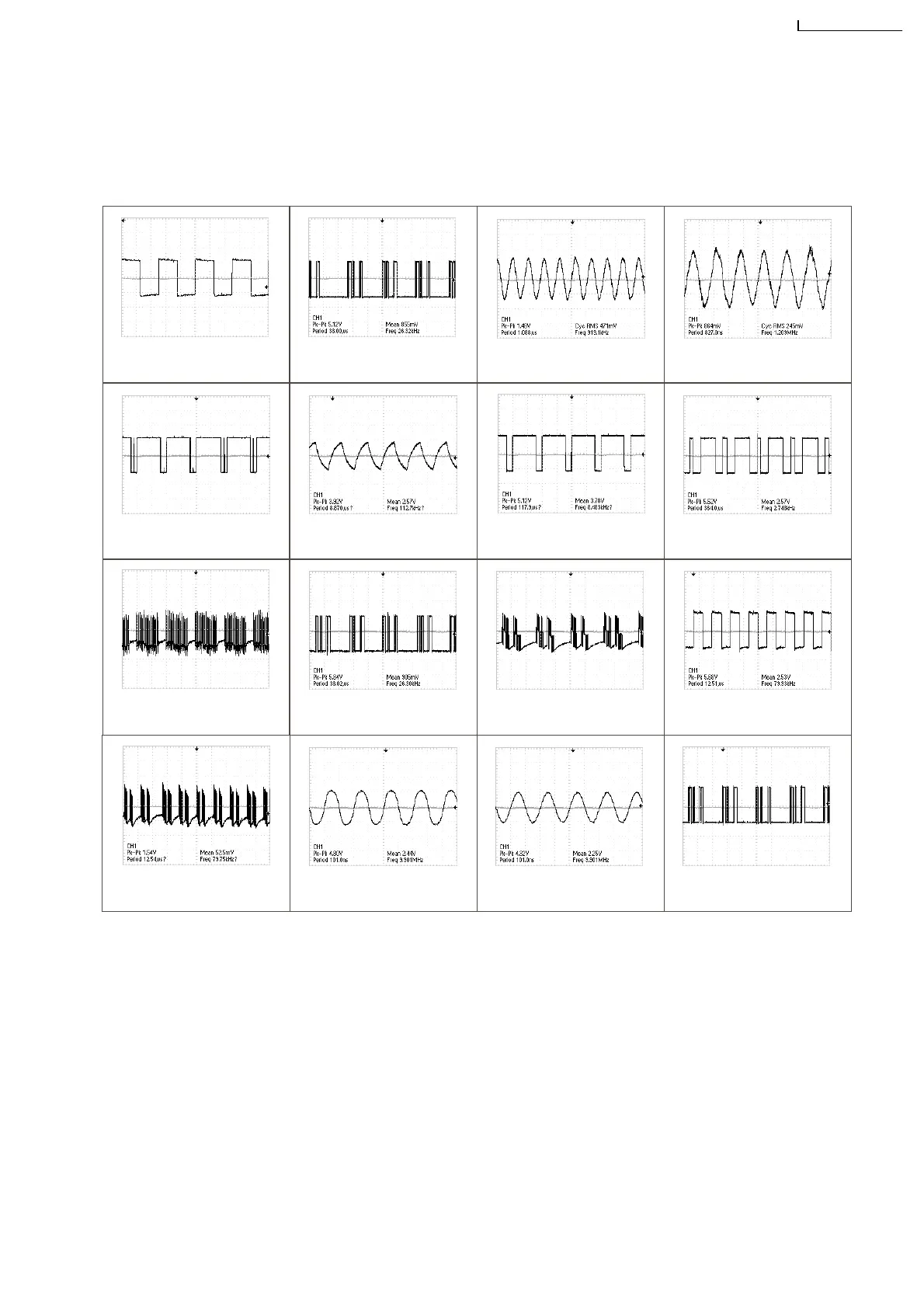

9.2. Waveform Chart
CN105 PIN 3
CD PLAY
5.52Vp-p (5usec.div)
CN105 PIN 10
CD PLAY
5.12Vp-p (500usec.div)
CN400 PIN 8
CD PLAY
864mVp-p (500nsec.div)
CN402 PIN 5
CD PLAY
5.12Vp-p (10msec.div)
CN402 PIN 6
CD PLAY
3.92Vp-p (5usec.div)
CN402 PIN 7
CD PLAY
5.12Vp-p (10msec.div)
CN904A PIN 2
CD PLAY
5.52Vp-p (500usec.div)
CN904A PIN 8
CD PLAY
1.56Vp-p (10msec.div)
CN904A PIN 9
CD PLAY
5.84Vp-p (500usec.div)
CN904A PIN 10
CD PLAY
2.8Vp-p (500usec.div)
CN904A PIN 11
CD PLAY
5.68Vp-p (10usec.div)
CN904A PIN 12
CD PLAY
1.54Vp-p (1msec.div)
CN400 PIN 5
CD PLAY
1.48Vp-p (1usec.div)
IC301 PIN 13
CD PLAY
4.8Vp-p (50nsec.div)
IC301 PIN 15
CD PLAY
4.32Vp-p (50nsec.div)
IC301 PIN 31
CD PLAY
5.36Vp-p (500usec.div)
