Panasonic SA-HR45E - Page 34

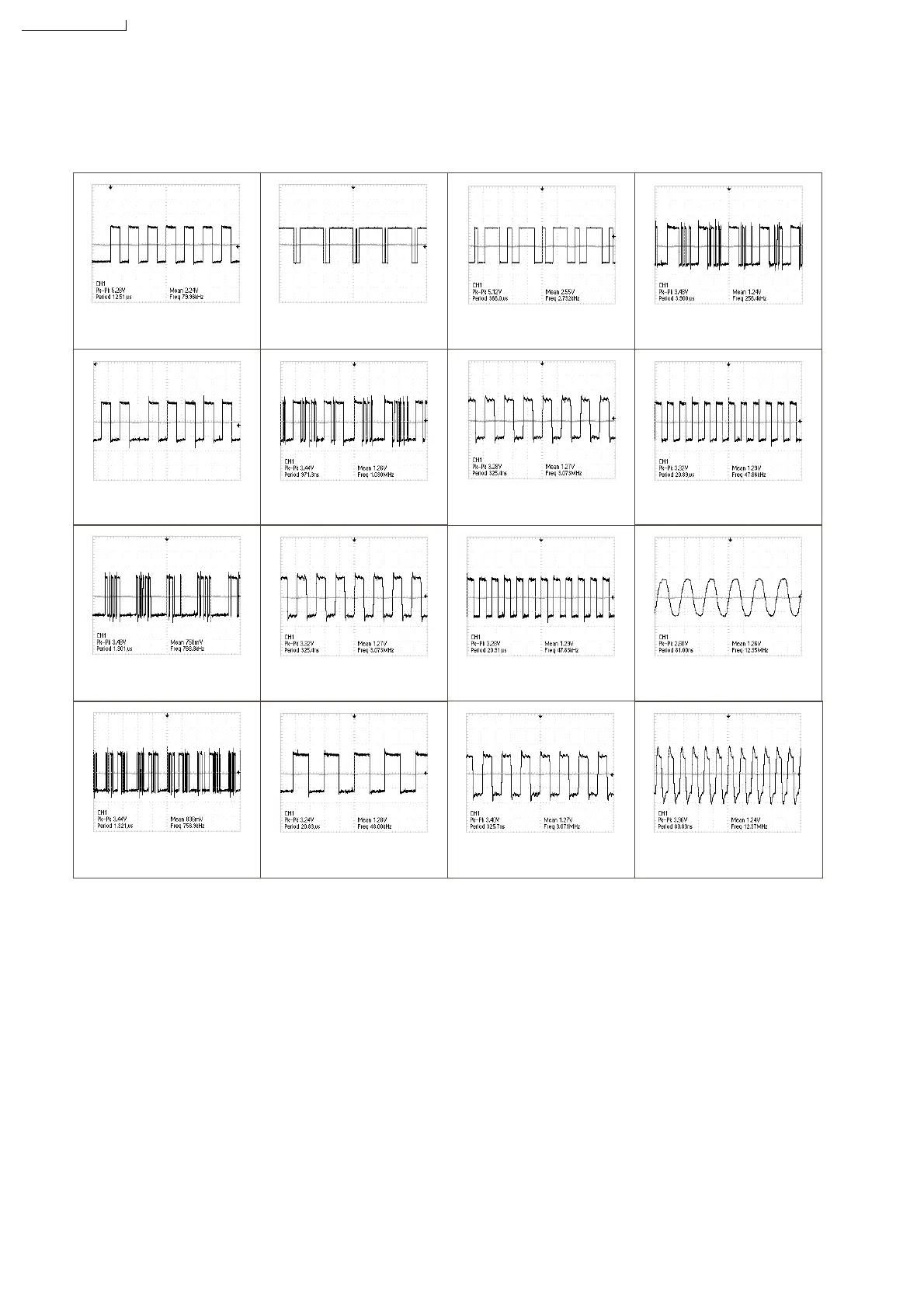

IC301 PIN 33
CD PLAY
5.28Vp-p (10usec.div)
IC301 PIN 69
CD PLAY
5.04Vp-p (10msec.div)
IC1001 PIN 3
CD PLAY
3.48Vp-p (5usec.div)
IC1001 PIN 7
CD PLAY
3.52Vp-p (10usec.div)
IC1001 PIN 22
CD PLAY
3.44Vp-p (5usec.div)
IC1001 PIN 25
CD PLAY
3.28Vp-p (250nsec.div)
IC1001 PIN 26
CD PLAY
3.32Vp-p (25usec.div)
IC1001 PIN 27
CD PLAY
3.48Vp-p (5usec.div)
IC1001 PIN 28
CD PLAY
3.32Vp-p (250nsec.div)
IC1001 PIN 29
CD PLAY
3.28Vp-p (25usec.div)
IC1001 PIN 30
CD PLAY
2.6Vp-p (50nsec.div)
IC1001 PIN 41
CD PLAY
3.44Vp-p (10usec.div)
IC301 PIN 76
CD PLAY
5.12Vp-p (500usec.div)
IC1001 PIN 42
CD PLAY
3.24Vp-p (10usec.div)
IC1001 PIN 43
CD PLAY
3.4Vp-p (250nsec.div)
IC1001 PIN 44
CD PLAY
3.96Vp-p (100nsec.div)
