Panasonic SA-HR45E - Page 35

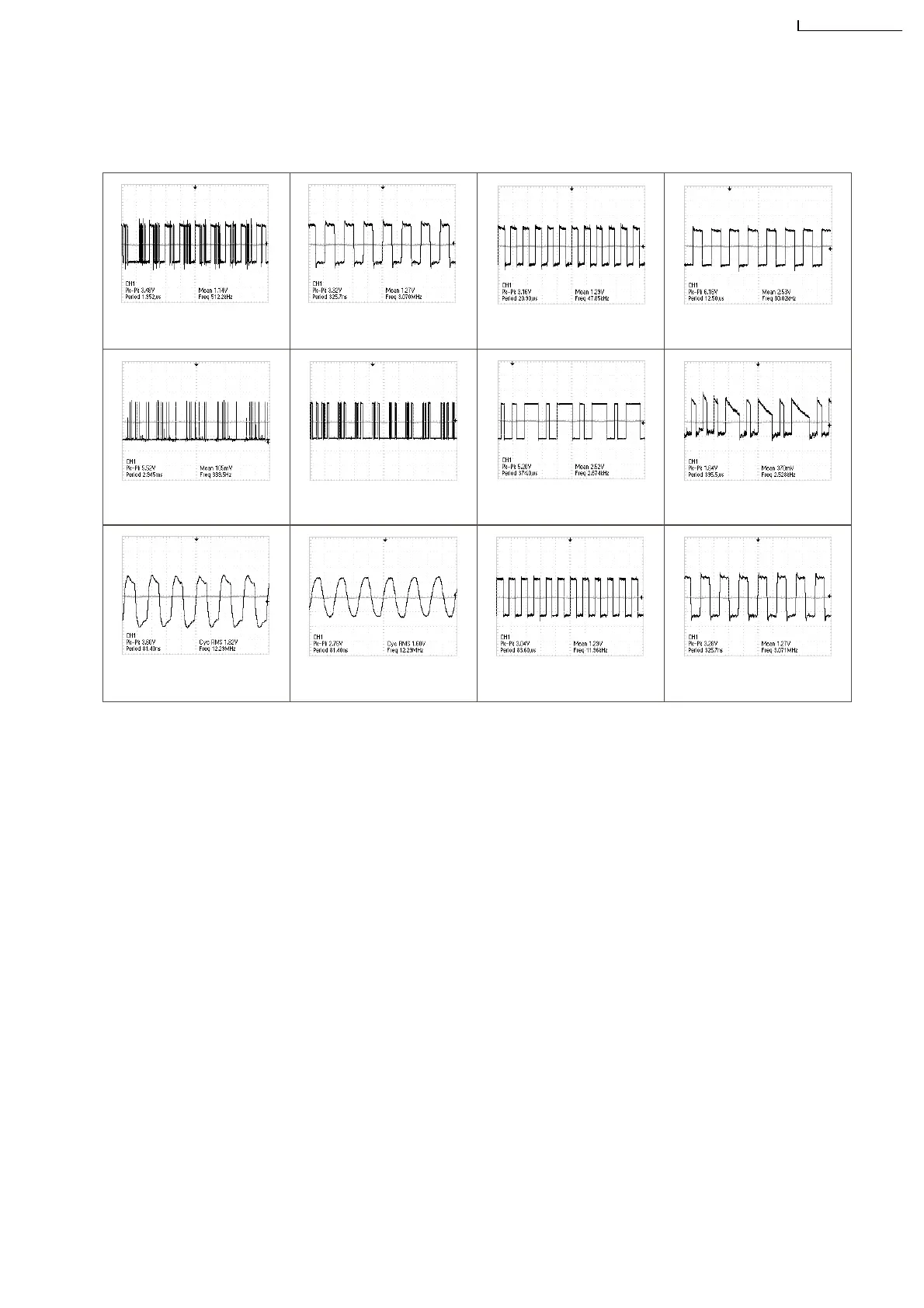

IC1101 PIN 1
CD PLAY
3.48Vp-p (10usec.div)
IC1101 PIN 2
CD PLAY
3.32Vp-p (250nsec.div)
IC1101 PIN 7
CD PLAY
6.16Vp-p (10usec.div)
IC1101 PIN 8
CD PLAY
5.52Vp-p (10msec.div)
IC1101 PIN 9
CD PLAY
5.2Vp-p (1msec.div)
IC1101 PIN 10
CD PLAY
5.2Vp-p (500usec.div)
IC1101 PIN 11
CD PLAY
1.64Vp-p (500usec.div)
IC1101 PIN 55
CD PLAY
3.6Vp-p (50nsec.div)
IC1101 PIN 59
CD PLAY
2.76Vp-p (50nsec.div)
IC1101 PIN 60
CD PLAY
3.04Vp-p (100usec.div)
IC1101 PIN 61
CD PLAY
3.28Vp-p (250nsec.div)
IC1101 PIN 3
CD PLAY
3.16Vp-p (25usec.div)
