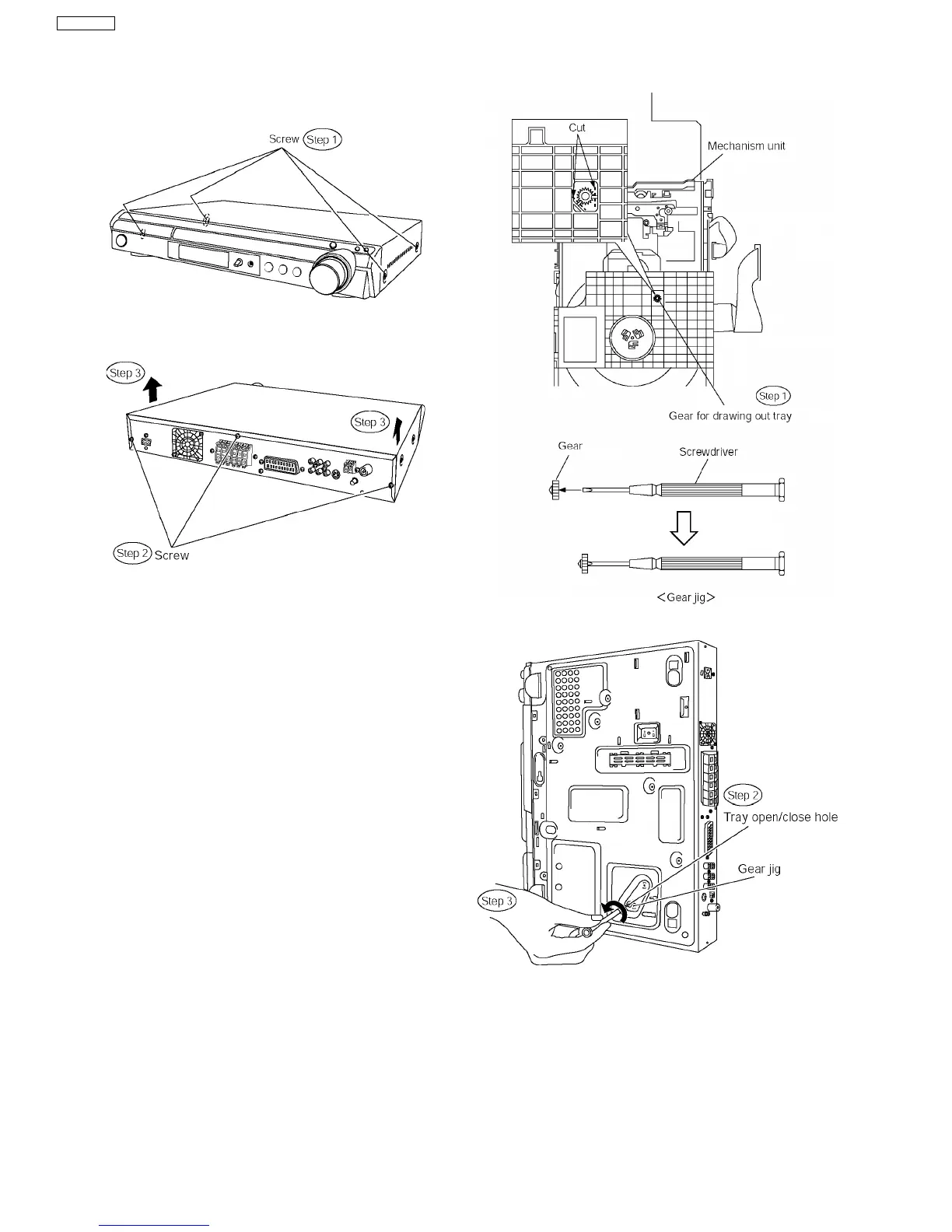

9.3. Disassembly of Top Cabinet
Step 1 Remove 4 screws.
Step 2 Remove 3 screws. (Rear view)
Step 3 Lift up and remove the top cabinet.
9.4. Disassembly of the DVD Lid
(When taking out disc
manually)
Step 1 Detach the gear for drawing out tray from the
mechanism unit. Inserts a screw driver into the gear. (The gear
jig)
Step 2 Insert the gear jig into the tray open/ close hole.
Step 3 Turn the gear jig counterclockwise to open the tray.
Note : Do not use force to push the tray backwards as it can
damage the mechanism unit.
Step 4 Turn the gear jig clockwise to return tray.
Step 5 Release the tabs and remove DVD lid.
28
SA-HT340EE
