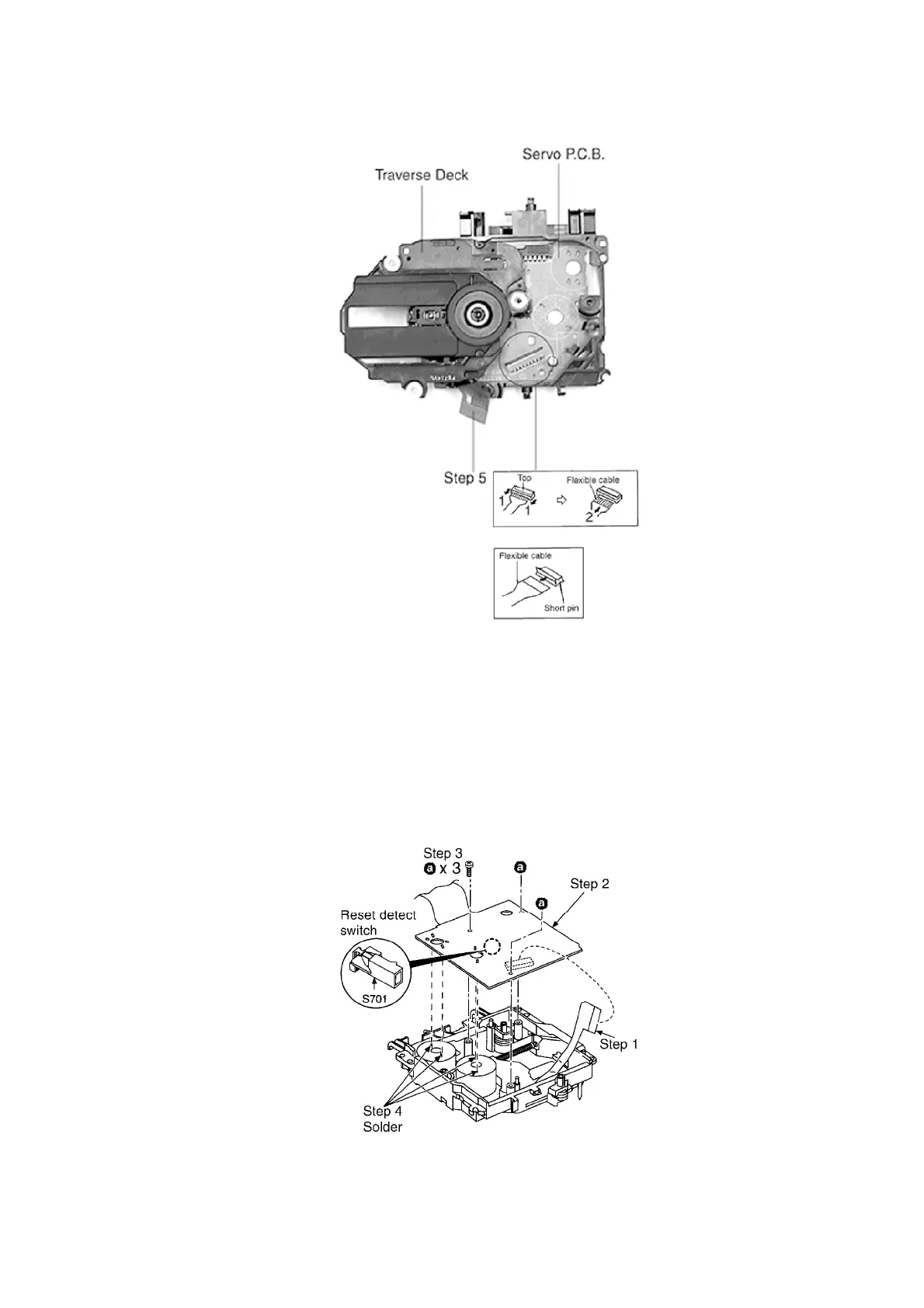

Step 5 Remove the flexible cable CN 701.
- Removal of the flexible cable. Push the top of the connector in the
direction of the arrow 1, and then pull out the flexible cable in the
direction of the arrow 2.
Note:
Insert a short pin into the flexible cable for traverse unit.
- Installation of the CD servo P.C.B. after replacement
Step 1 Connect the FFC board.
Step 2 Install the CD servo P.C.B. in the traverse deck assembly.
Note:
