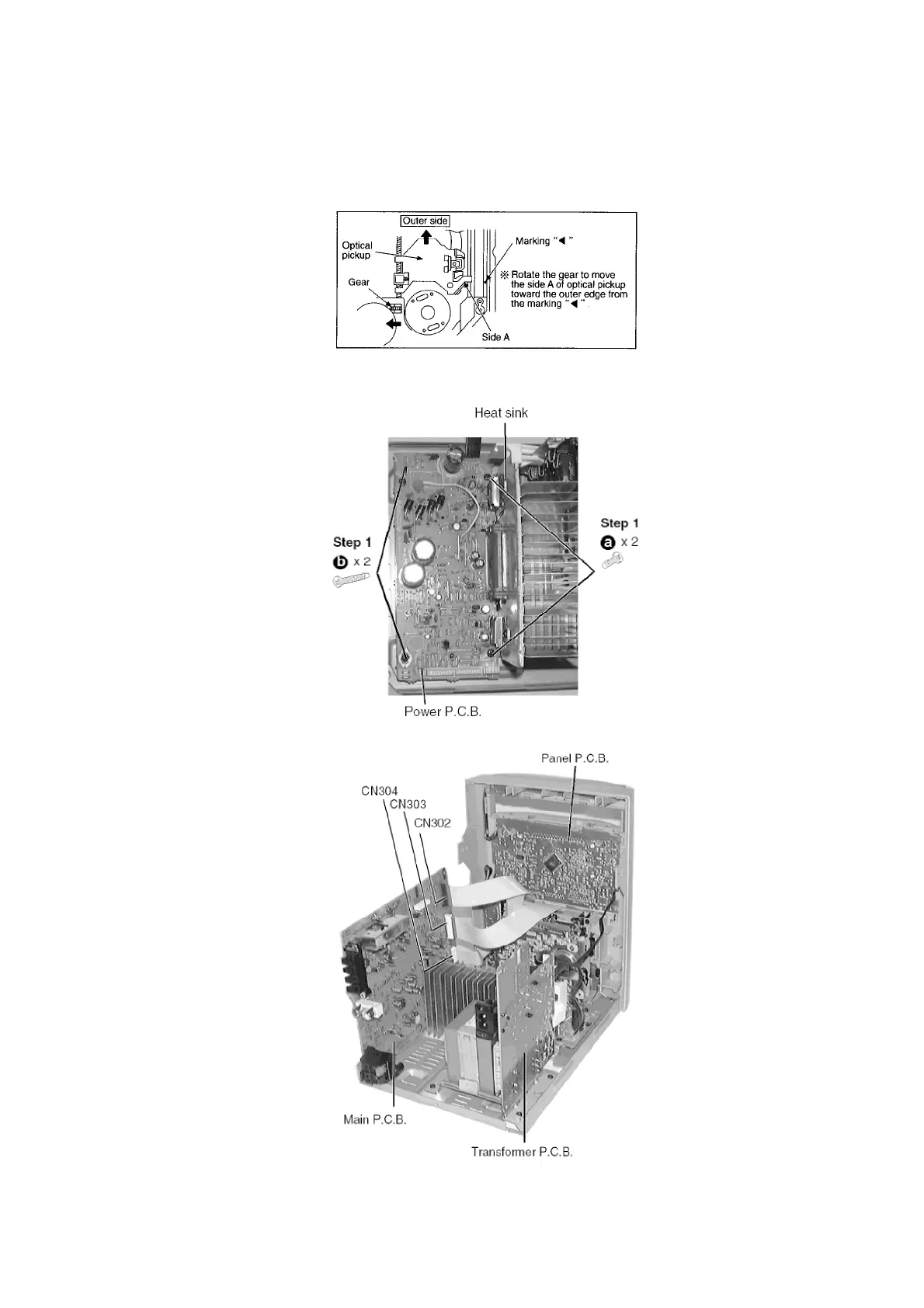

Before installing the CD servo P.C.B., move the optical pickup towards the outer edge from the

marking (black triangle). [Otherwise, the reset detect switch (S701) mounted on the CD servo

P.C.B. may be damaged.]

2. Replacement of the Power Amplifier IC

Step 1 Follow the procedures in ‘Checking Procedure for each major P.C.B.’ ( Step 1 - Step 4).

Step 2 Remove the wires at CN302, CN303 and CN304 and pull out the Main P.C.B.
