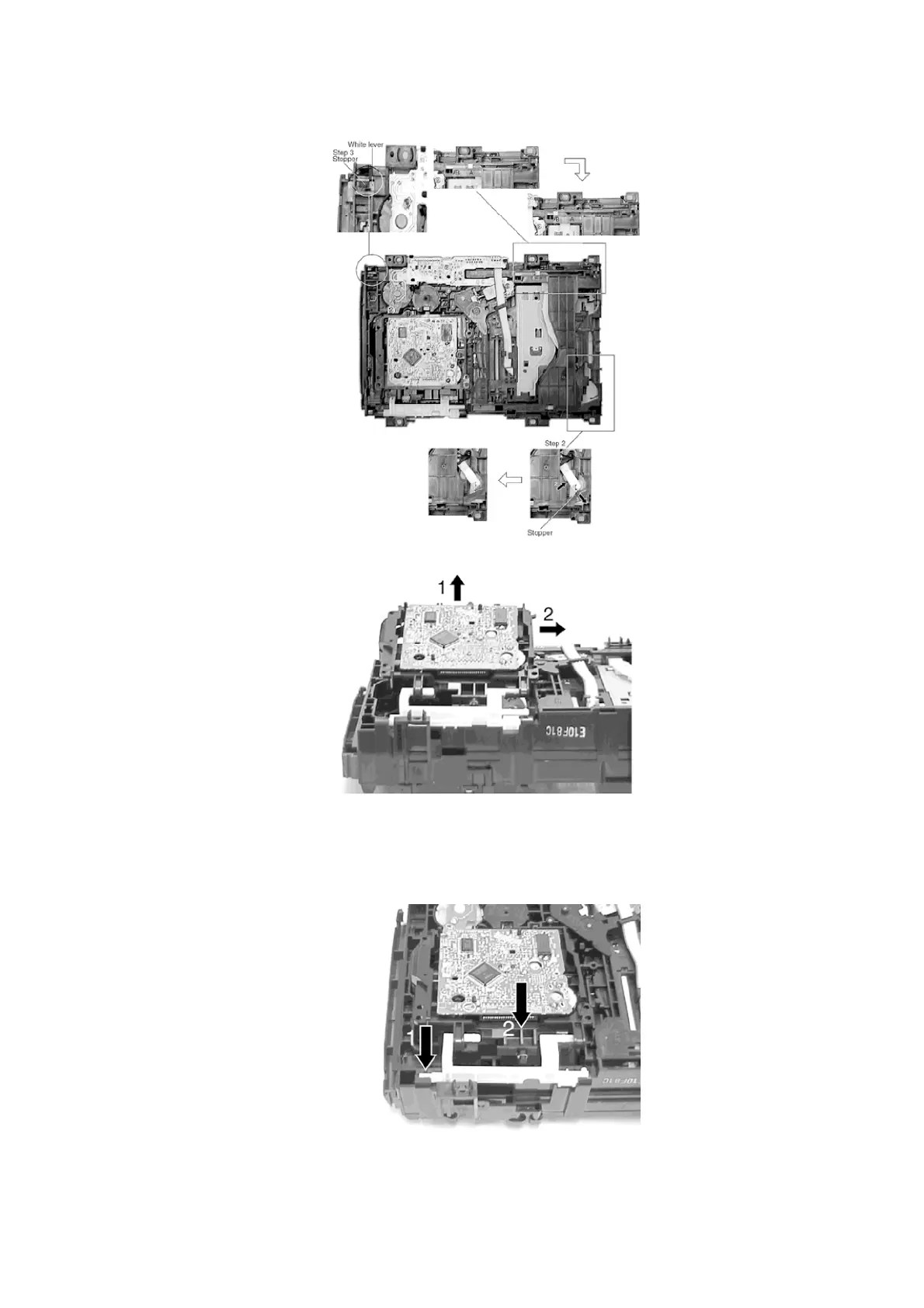

Step 4 Lift up the traverse unit and slide out the unit as shown.
- Replacement of Traverse Unit
Step 1 Place the traverse unit as shown.
Step 2 Press in the lever shaft in the direction of arrow 1 as shown and push the traverse unit
into the position in the direction of arrow 2.
Step 3 Pull the stopper in the direction of arrow 1 and release the lever in the direction of arrow 2
19
