as shown.
Step 4 Pull out the tray half way and push it back fully.
Step 5 Push the lever to the initial position indicated ‘I---I’.
8.4. Disassembly and assembly of the Disc Tray

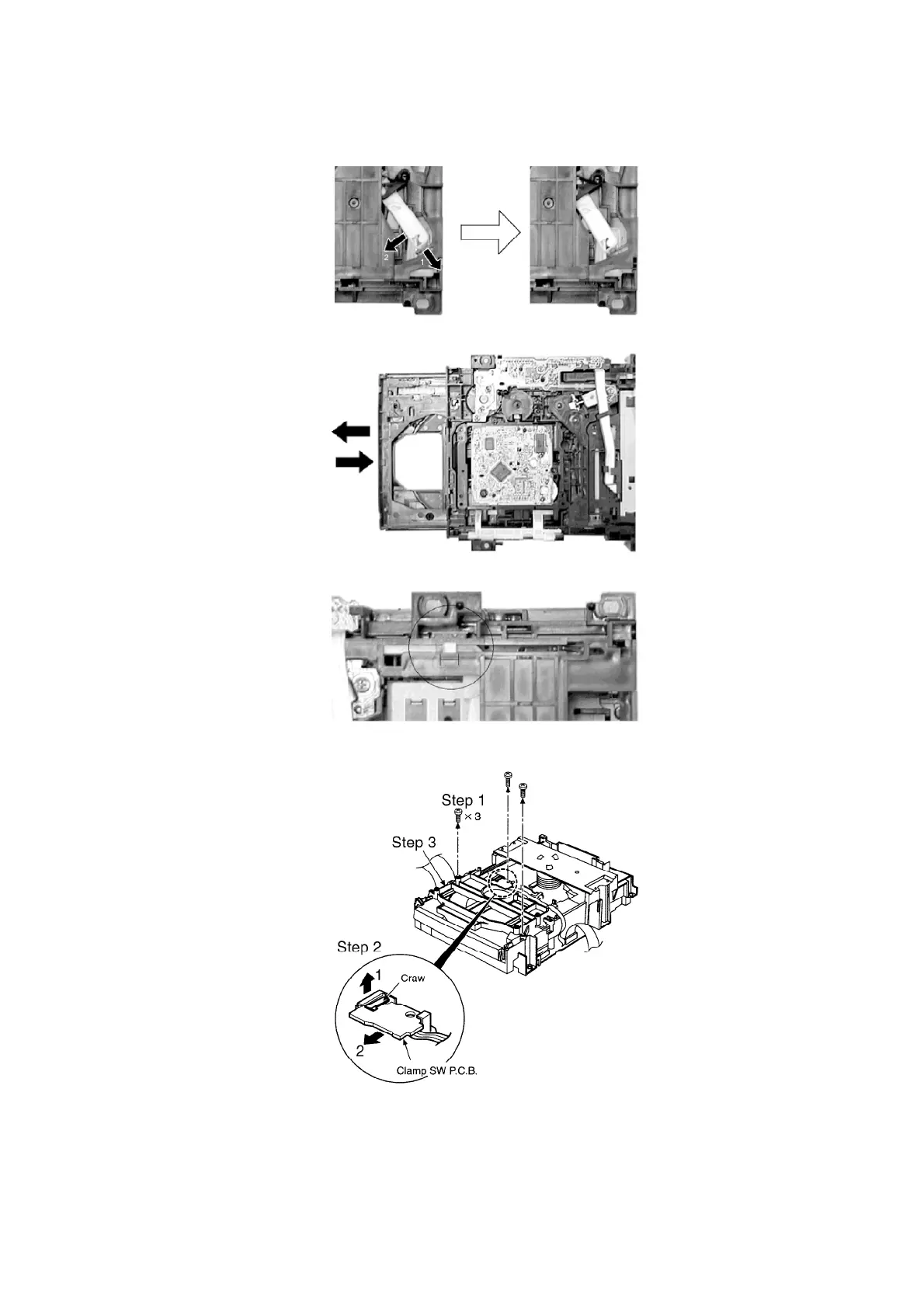

Step 2 With lifting the claw in the direction of arrow 1, draw the clamp SW P.C.B. in the direction
of arrow 2.
Step 3 Remove the mechanism cover.
20
To Next Page
