Panasonic SA-PM17E - Page 17

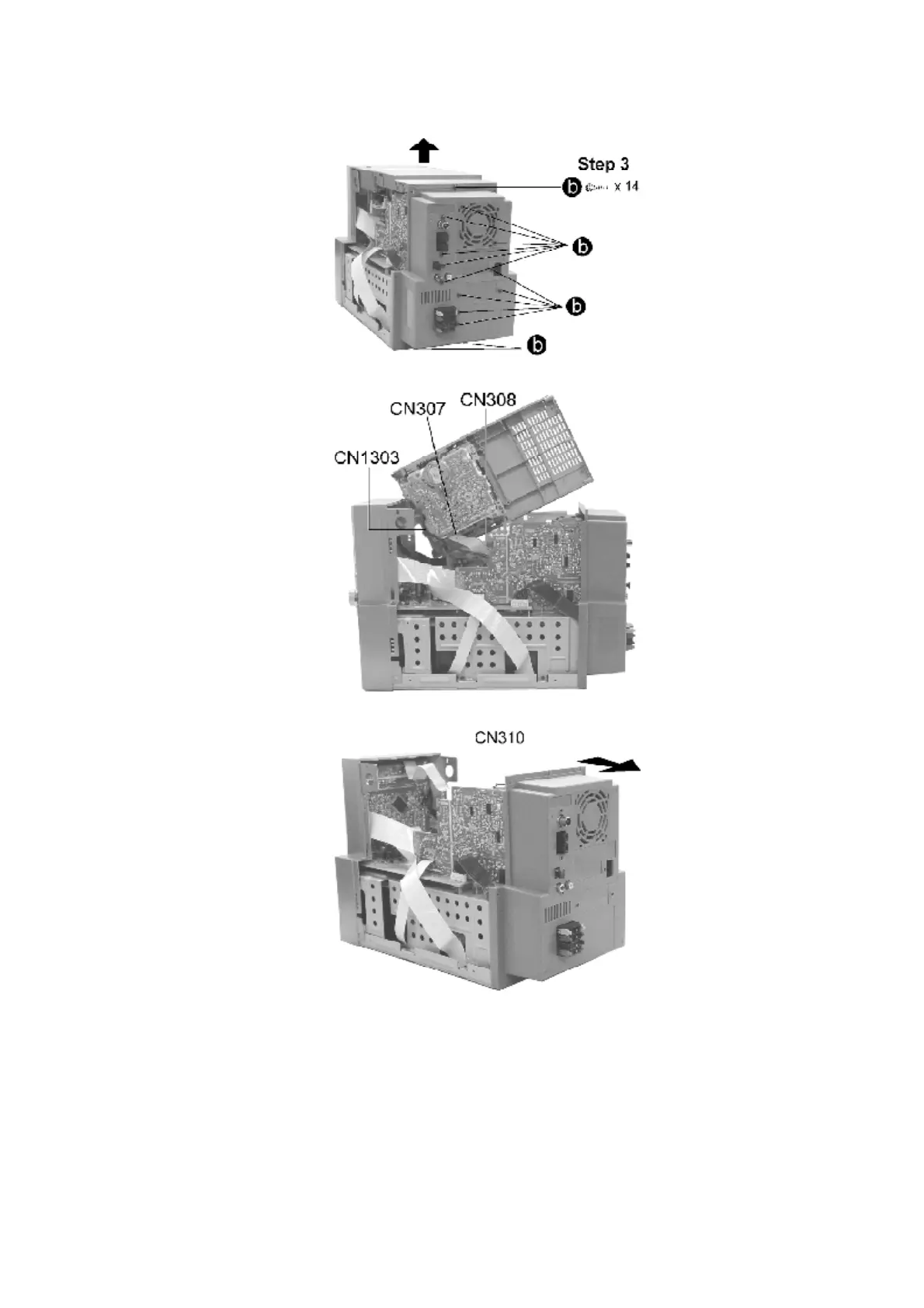

Step 3 Remove all the screws and pull up the cassette lid as the arrow shown.
Step 4 Release the connectors CN307, CN308 and CN1303. Remove the cassette lid.
Step 5 Release the connector CN310 and pull out the back cover as the arrow shown.
17
