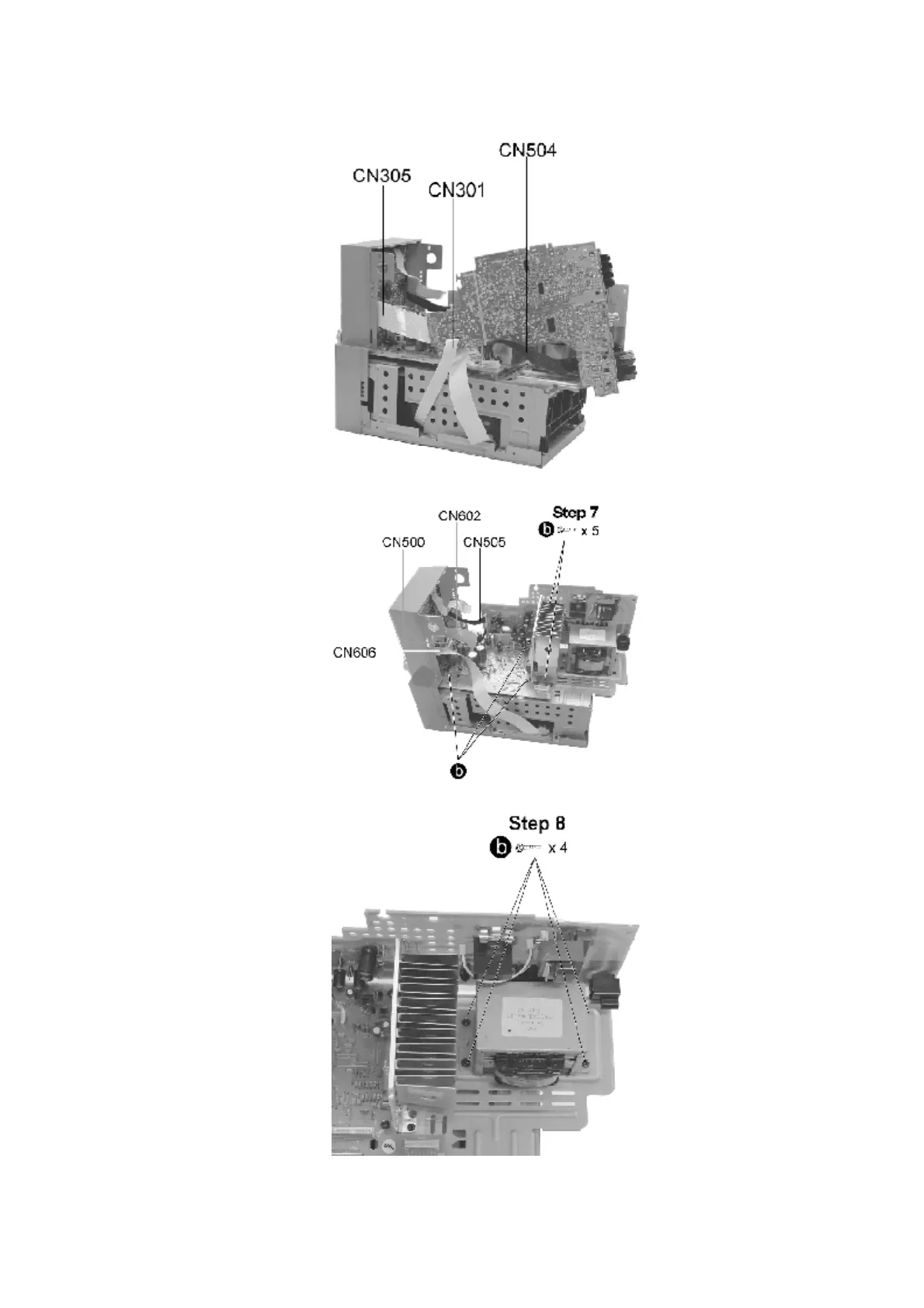

Step 6 Release the connectors CN504, CN305 and CN301.
Step 7 Release the connectors CN606, CN602, CN505, CN500 and remove all the screws.
18
