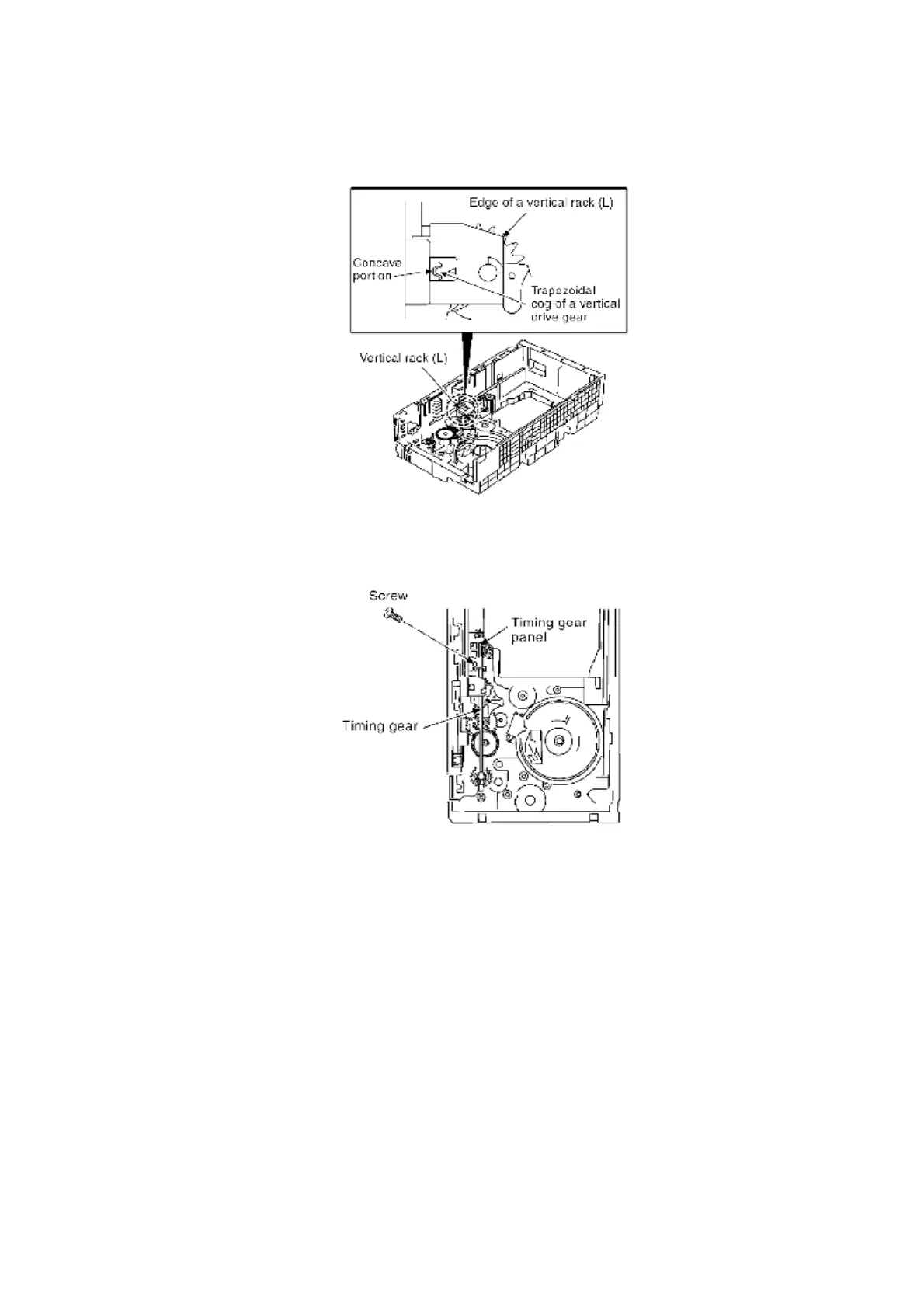

cog of a vertical rack (L) and fix.
3. Fix a timing gear plate and a timing gear, then fasten them with
screws.
9.13.1.4. Notes on fixing of a change gear and a main gear
1. Fix a change lever and a change gear following 2. Then fix a level
drive gear and a main gear spring, and fix a main gear following 3
and 4.
45
