into a concave portion of a dividing lever (1).

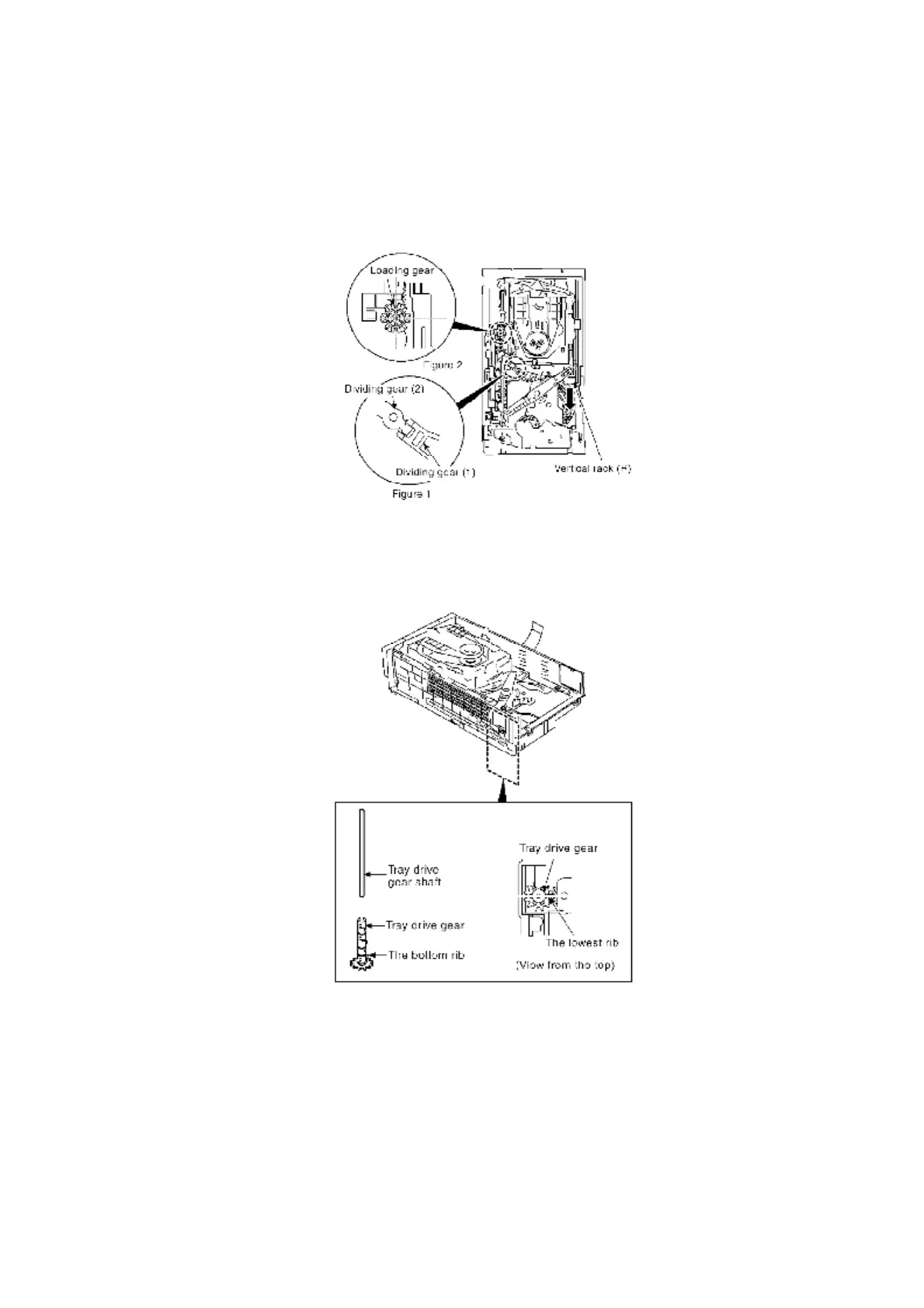

4. Set a loading gear at the position shown by figure 2.
5. Draw a vertical rack (R) to the arrow direction.
9.13.1.7. Notes on fixing a disk tray
1. Fix a tray drive gear and a tray drive gear shaft. / (Position the
lowest rib of a tray drive gear to be level)
2. Move a tray guide (R) and a tray guide (L) to the arrow direction at
a stretch, and fix disk trays (all of 5 pieces).
50
