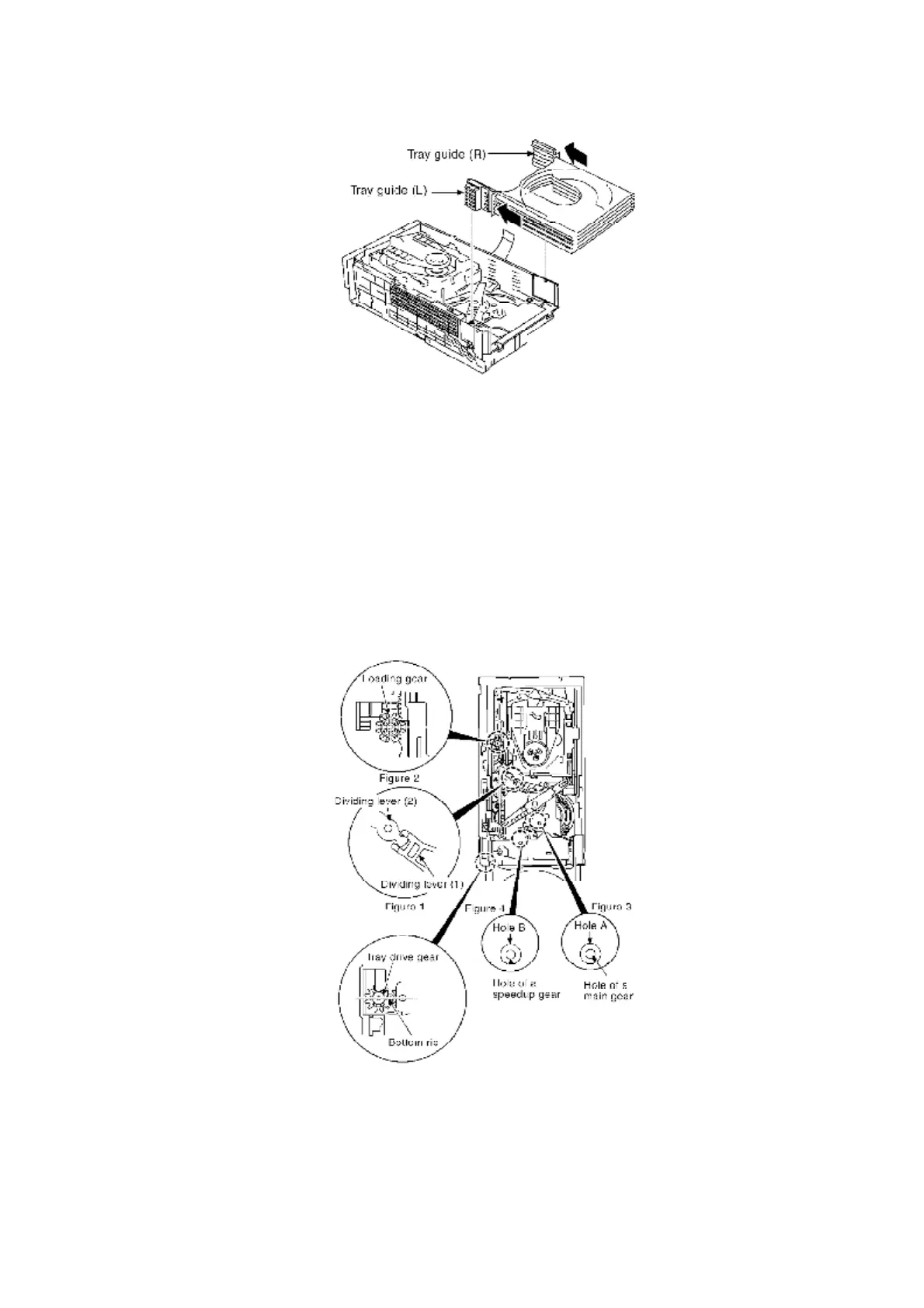

3. Check the phase.
A. The projecting portion of a dividing lever (2) should be inserted
into a concave portion of a dividing lever (a).
B. Seta loading gear at the position shown by figure 2.
C. The hole A of pitch plate should be positioned at a hole of a
main gear. (Figure 3)
D. The hole B of pitch plate should be positioned at a hole of a
speedup gear. (Figure 4)
E. Set the bottom rib of a tray drive gear to be level. (Figure 5)
4. Push in 5 disk trays simultaneously.
51
