11.2.6. Bias Voltage Check

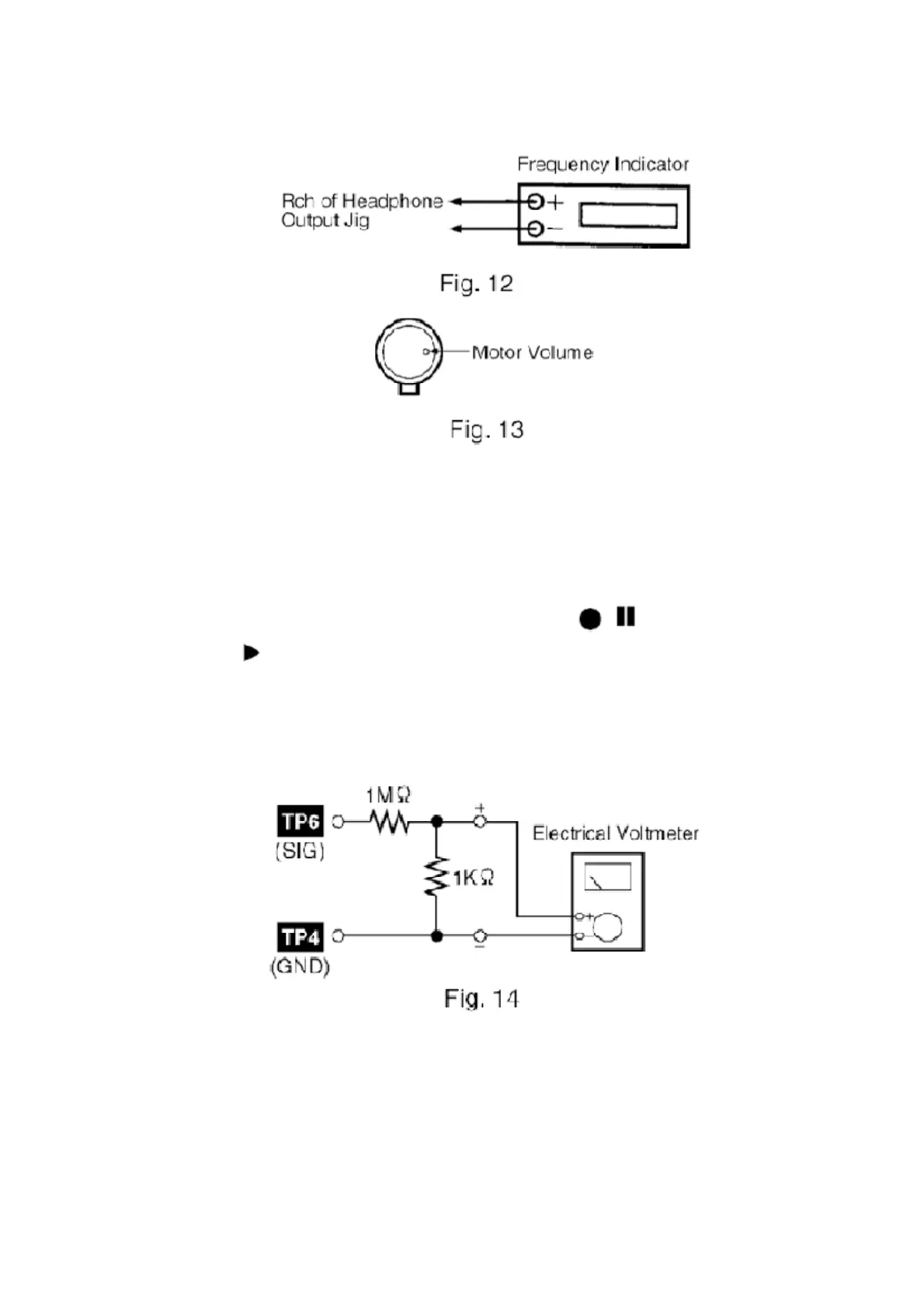

1. Connect an electrical voltmeter. (Cf. Fig. 9) (Cf. Fig. 14)
2. Set the function to “TAPE” position.
3. Insert a normal blank cassette tape (QZZCRA).
4. While pressing and holding down [REC ( / )] button, press
[TAPE ( )] button to pause the recording mode. (Repeat pressing
the buttons till the recording pause mode is activated.)
5. Check that the output level is within the standard range.
Standard Range: 14 ± 4mV
12. Block Diagram
13. Schematic Diagram
(All schematic diagrams may be modified at any time with the development of new technology.)
Notes:
61
