Panasonic SA-PT470EB - Disassembly of Scart P.C.B; Assembling and Disassembling of Traverse Unit

71

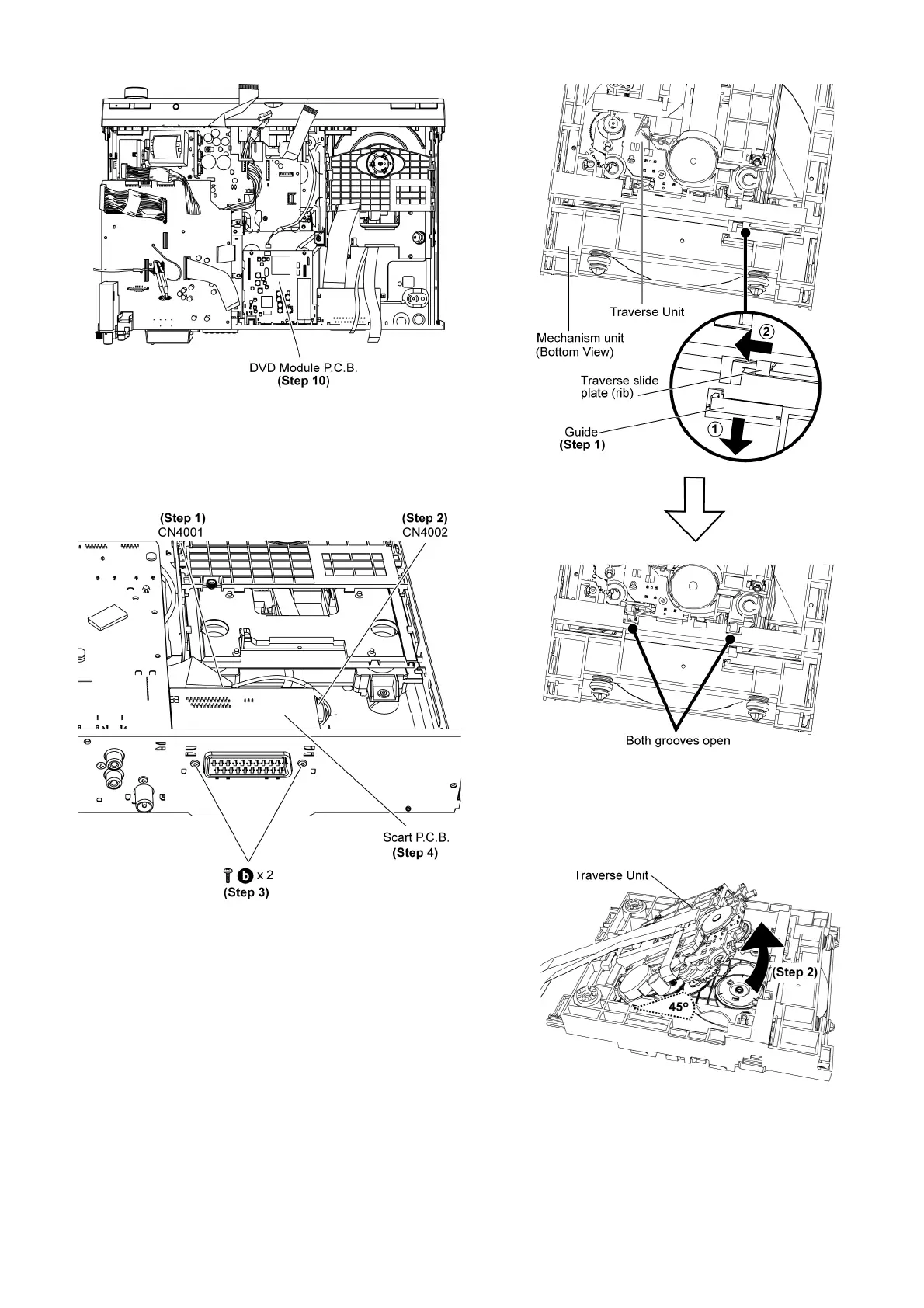

Step 10 Remove DVD Module P.C.B.
9.27. Disassembly of Scart P.C.B.
• Follow (Step 1) to (Step 3) of Item 9.3.
Step 1 Detach 24P FFC at the connector (CN4001) on Scart
P.C .B .
Step 2 Detach 3P cable at the connector (CN4002) on Scart
P.C .B .
Step 3 Remove 2 screws on rear panel.
Step 4 Remove Scart P.C.B.
9.28. Assembling and Disas-
sembling of Traverse
Unit
9.28.1. Disassembly of Traverse Unit
• Follow (Step 1) to (Step 3) of Item 9.3
• Follow (Step 1) to (Step 4) of Item 9.4
Step 1: Release the guide and slide the traverse slide plate (rib)
as arrows shown.
Step 2: Lift up the Traverse unit approximately 45° as shown.
