Panasonic SA-PT470EB - Waveform Chart

92

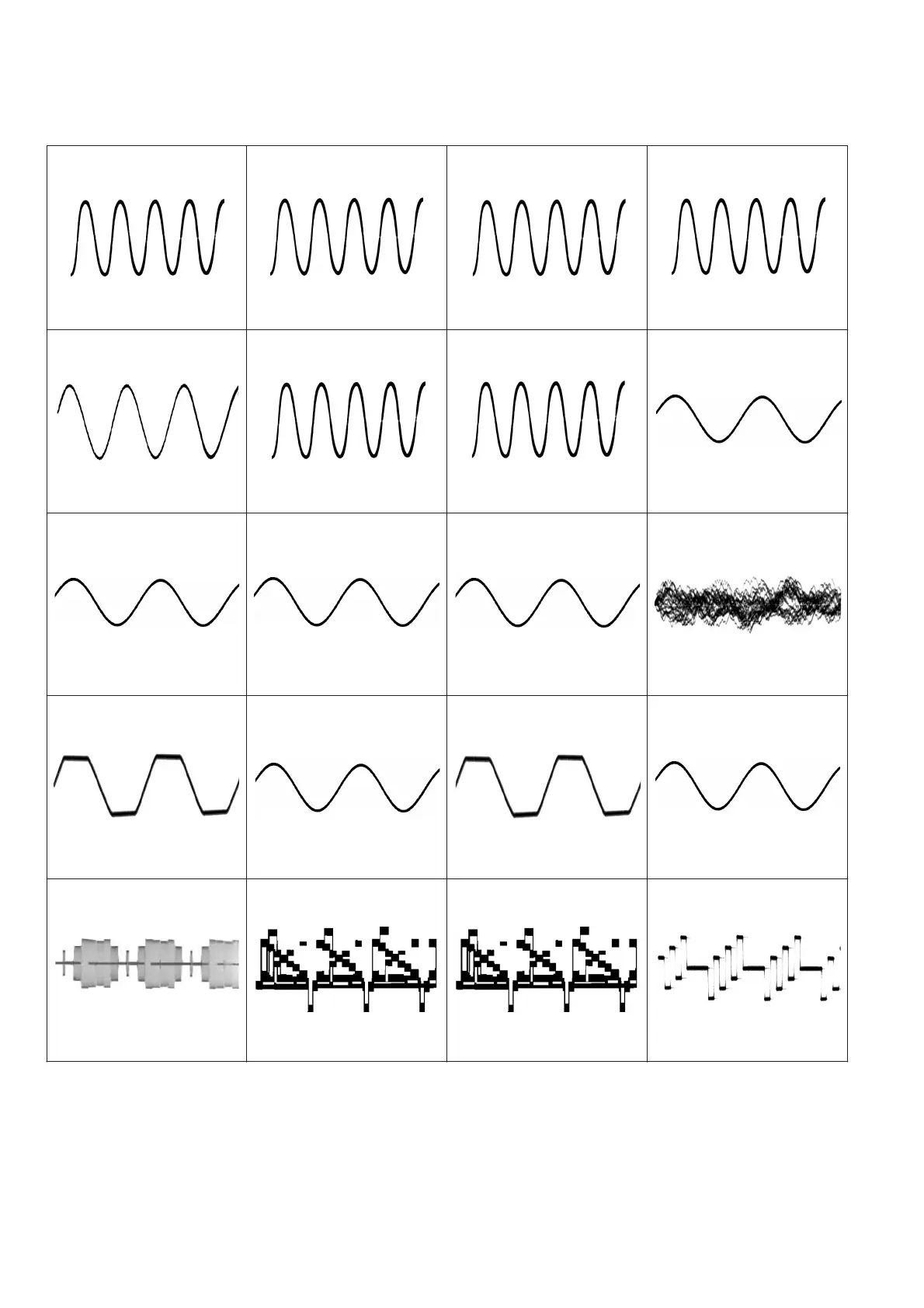

11.2. Waveform Chart
11.2.1. Waveform Table 1 (IC2001 ~ IC2801)
WF No. IC2101-44 (PLAY)
10.8Vp-p(5msec/div)
WF No. IC2101-77 (PLAY)
0.8Vp-p(2msec/div)
WF No. IC2101-91,92 (PLAY)
1.5Vp-p(500usec/div)
WF No. IC2101-78,79 (PLAY)
1.6Vp-p(200usec/div)
WF No. IC2101-80 (PLAY)
1.8Vp-p(200usec/div)
WF No. IC2101-81,82 (PLAY)
2.8Vp-p(200usec/div)
WF No. IC2101-95 (PLAY)
2.8Vp-p(200usec/div)
WF No. IC2101-99 (PLAY)
6.8Vp-p(200usec/div)
WF No. IC2101-100 (PLAY)
1Vp-p(200usec/div)
WF No. IC2801-4 (PLAY)
0.7Vp-p(20usec/div)
WF No. IC2101-96 (PLAY)
0.4Vp-p(200usec/div)
WF No. IC2801-8 (PLAY)
1.1Vp-p(20usec/div)
WF No. IC2801-11 (PLAY)
1.05Vp-p(20usec/div)
WF No. IC2801-13 (PLAY)
0.48Vp-p(50usec/div)
WF No. IC2001-13 (PLAY)
5Vp-p(50nsec/div)
WF No. IC2101-14 (PLAY)
0.32Vp-p(1msec/div)
WF No. IC2101-15,16,17 (PLAY)
1.08Vp-p(1msec/div)
WF No. IC2101-18 (PLAY)
1.12Vp-p(1msec/div)
WF No. IC2101-19 (PLAY)
0.34Vp-p(2msec/div)
WF No. IC2101-27,30,41 (PLAY)
0.8Vp-p(1msec/div)
