Note: Ensure the bosses fix exactly onto the guides.

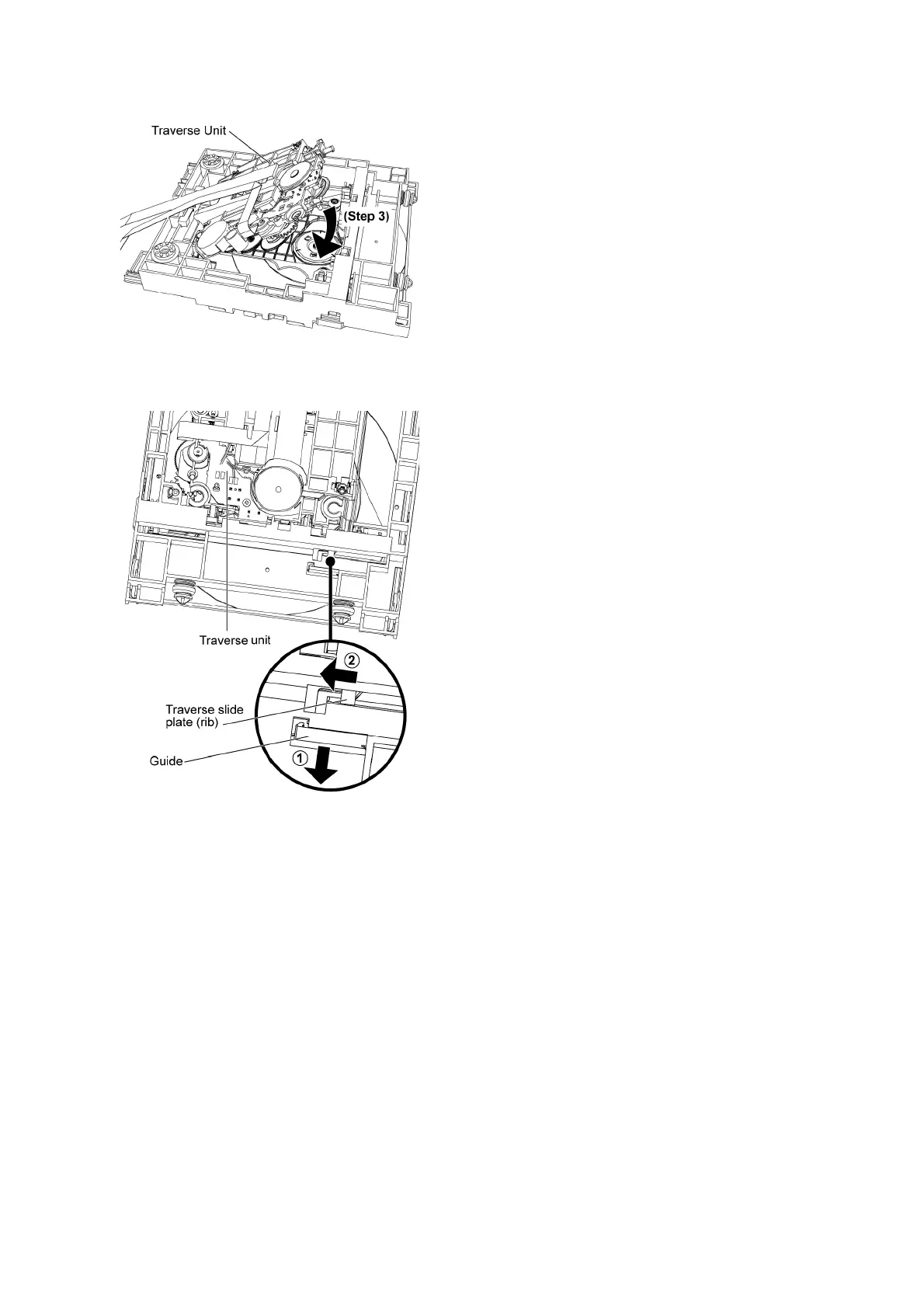

Step 3: Place down the traverse unit as arrow shown.
Step 4: Release the guide and slide the traverse slide plate (rib)
in the direction of arrows shown to lock in the traverse unit.
