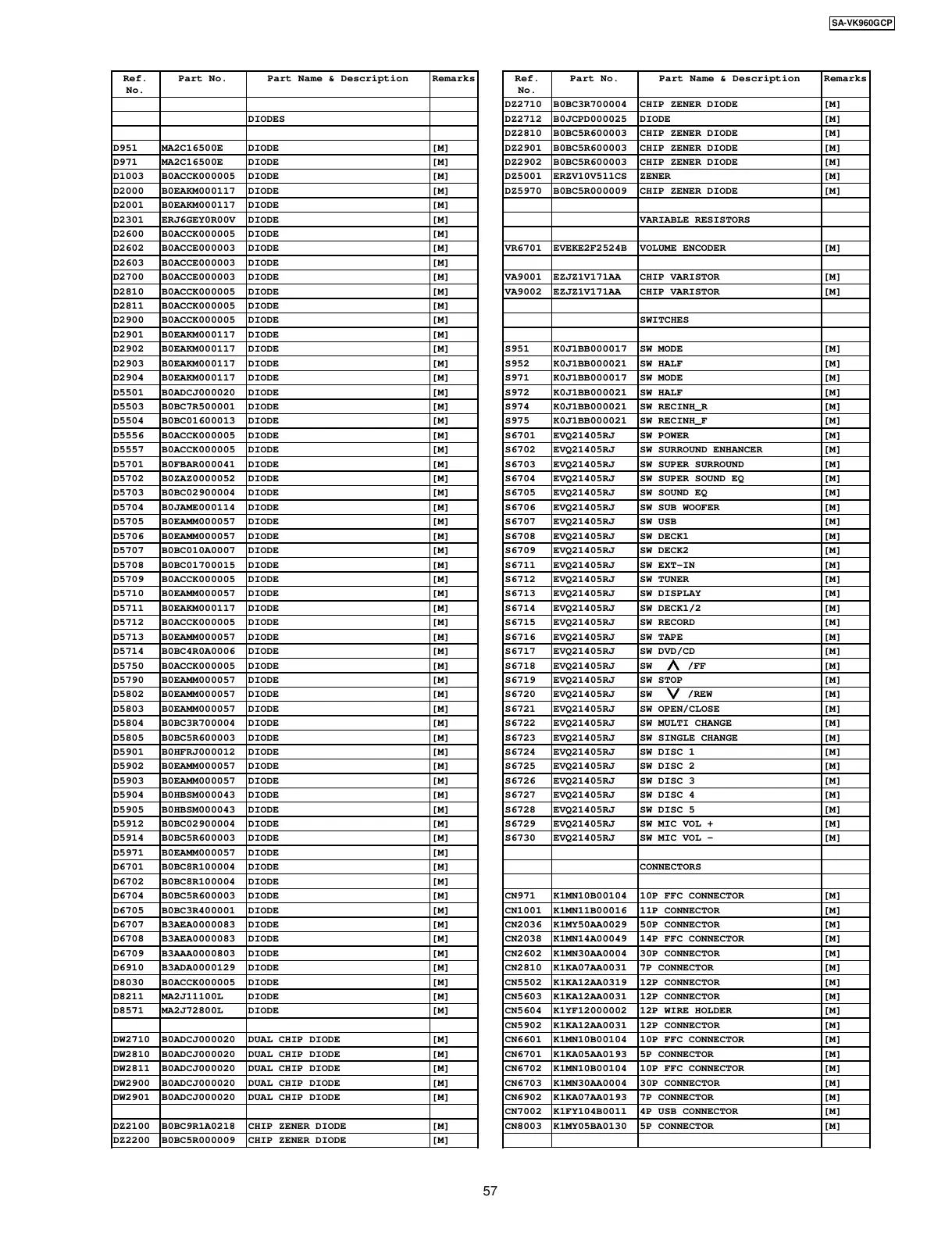

Panasonic SB-PF960 - Page 57

Ref.
No.
Part No. Part Name & Description Remarks
DIODES
D951 MA2C16500E DIODE [M]
D971 MA2C16500E DIODE [M]
D1003 B0ACCK000005 DIODE [M]
D2000 B0EAKM000117 DIODE [M]
D2001 B0EAKM000117 DIODE [M]
D2301 ERJ6GEY0R00V DIODE [M]
D2600 B0ACCK000005 DIODE [M]
D2602 B0ACCE000003 DIODE [M]
D2603 B0ACCE000003 DIODE [M]
D2700 B0ACCE000003 DIODE [M]
D2810 B0ACCK000005 DIODE [M]
D2811 B0ACCK000005 DIODE [M]
D2900 B0ACCK000005 DIODE [M]
D2901 B0EAKM000117 DIODE [M]
D2902 B0EAKM000117 DIODE [M]
D2903 B0EAKM000117 DIODE [M]
D2904 B0EAKM000117 DIODE [M]
D5501 B0ADCJ000020 DIODE [M]
D5503 B0BC7R500001 DIODE [M]
D5504 B0BC01600013 DIODE [M]
D5556 B0ACCK000005 DIODE [M]
D5557 B0ACCK000005 DIODE [M]
D5701 B0FBAR000041 DIODE [M]
D5702 B0ZAZ0000052 DIODE [M]
D5703 B0BC02900004 DIODE [M]
D5704 B0JAME000114 DIODE [M]
D5705 B0EAMM000057 DIODE [M]
D5706 B0EAMM000057 DIODE [M]
D5707 B0BC010A0007 DIODE [M]
D5708 B0BC01700015 DIODE [M]
D5709 B0ACCK000005 DIODE [M]
D5710 B0EAMM000057 DIODE [M]
D5711 B0EAKM000117 DIODE [M]
D5712 B0ACCK000005 DIODE [M]
D5713 B0EAMM000057 DIODE [M]
D5714 B0BC4R0A0006 DIODE [M]
D5750 B0ACCK000005 DIODE [M]
D5790 B0EAMM000057 DIODE [M]
D5802 B0EAMM000057 DIODE [M]
D5803 B0EAMM000057 DIODE [M]
D5804 B0BC3R700004 DIODE [M]
D5805 B0BC5R600003 DIODE [M]
D5901 B0HFRJ000012 DIODE [M]
D5902 B0EAMM000057 DIODE [M]
D5903 B0EAMM000057 DIODE [M]
D5904 B0HBSM000043 DIODE [M]
D5905 B0HBSM000043 DIODE [M]
D5912 B0BC02900004 DIODE [M]
D5914 B0BC5R600003 DIODE [M]
D5971 B0EAMM000057 DIODE [M]
D6701 B0BC8R100004 DIODE [M]
D6702 B0BC8R100004 DIODE [M]
D6704 B0BC5R600003 DIODE [M]
D6705 B0BC3R400001 DIODE [M]
D6707 B3AEA0000083 DIODE [M]
D6708 B3AEA0000083 DIODE [M]
D6709 B3AAA0000803 DIODE [M]
D6910 B3ADA0000129 DIODE [M]
D8030 B0ACCK000005 DIODE [M]
D8211 MA2J11100L DIODE [M]
D8571 MA2J72800L DIODE [M]
DW2710 B0ADCJ000020 DUAL CHIP DIODE [M]
DW2810 B0ADCJ000020 DUAL CHIP DIODE [M]
DW2811 B0ADCJ000020 DUAL CHIP DIODE [M]
DW2900 B0ADCJ000020 DUAL CHIP DIODE [M]
DW2901 B0ADCJ000020 DUAL CHIP DIODE [M]
DZ2100 B0BC9R1A0218 CHIP ZENER DIODE [M]
DZ2200 B0BC5R000009 CHIP ZENER DIODE [M]
Ref.
No.
Part No. Part Name & Description Remarks
DZ2710 B0BC3R700004 CHIP ZENER DIODE [M]
DZ2712 B0JCPD000025 DIODE [M]
DZ2810 B0BC5R600003 CHIP ZENER DIODE [M]
DZ2901 B0BC5R600003 CHIP ZENER DIODE [M]
DZ2902 B0BC5R600003 CHIP ZENER DIODE [M]
DZ5001 ERZV10V511CS ZENER [M]
DZ5970 B0BC5R000009 CHIP ZENER DIODE [M]
VARIABLE RESISTORS
VR6701 EVEKE2F2524B VOLUME ENCODER [M]
VA9001 EZJZ1V171AA CHIP VARISTOR [M]
VA9002 EZJZ1V171AA CHIP VARISTOR [M]
SWITCHES
S951 K0J1BB000017 SW MODE [M]
S952 K0J1BB000021 SW HALF [M]
S971 K0J1BB000017 SW MODE [M]
S972 K0J1BB000021 SW HALF [M]
S974 K0J1BB000021 SW RECINH_R [M]
S975 K0J1BB000021 SW RECINH_F [M]
S6701 EVQ21405RJ SW POWER [M]
S6702 EVQ21405RJ SW SURROUND ENHANCER [M]
S6703 EVQ21405RJ SW SUPER SURROUND [M]
S6704 EVQ21405RJ SW SUPER SOUND EQ [M]
S6705 EVQ21405RJ SW SOUND EQ [M]
S6706 EVQ21405RJ SW SUB WOOFER [M]
S6707 EVQ21405RJ SW USB [M]
S6708 EVQ21405RJ SW DECK1 [M]
S6709 EVQ21405RJ SW DECK2 [M]
S6711 EVQ21405RJ SW EXT-IN [M]
S6712 EVQ21405RJ SW TUNER [M]
S6713 EVQ21405RJ SW DISPLAY [M]
S6714 EVQ21405RJ SW DECK1/2 [M]
S6715 EVQ21405RJ SW RECORD [M]
S6716 EVQ21405RJ SW TAPE [M]
S6717 EVQ21405RJ SW DVD/CD [M]
S6718 EVQ21405RJ SW /FF [M]
S6719 EVQ21405RJ SW STOP [M]
S6720 EVQ21405RJ SW /REW [M]
S6721 EVQ21405RJ SW OPEN/CLOSE [M]
S6722 EVQ21405RJ SW MULTI CHANGE [M]
S6723 EVQ21405RJ SW SINGLE CHANGE [M]
S6724 EVQ21405RJ SW DISC 1 [M]
S6725 EVQ21405RJ SW DISC 2 [M]
S6726 EVQ21405RJ SW DISC 3 [M]
S6727 EVQ21405RJ SW DISC 4 [M]
S6728 EVQ21405RJ SW DISC 5 [M]
S6729 EVQ21405RJ SW MIC VOL + [M]
S6730 EVQ21405RJ SW MIC VOL - [M]
CONNECTORS
CN971 K1MN10B00104 10P FFC CONNECTOR [M]
CN1001 K1MN11B00016 11P CONNECTOR [M]
CN2036 K1MY50AA0029 50P CONNECTOR [M]
CN2038 K1MN14A00049 14P FFC CONNECTOR [M]
CN2602 K1MN30AA0004 30P CONNECTOR [M]
CN2810 K1KA07AA0031 7P CONNECTOR [M]
CN5502 K1KA12AA0319 12P CONNECTOR [M]
CN5603 K1KA12AA0031 12P CONNECTOR [M]
CN5604 K1YF12000002 12P WIRE HOLDER [M]
CN5902 K1KA12AA0031 12P CONNECTOR [M]
CN6601 K1MN10B00104 10P FFC CONNECTOR [M]
CN6701 K1KA05AA0193 5P CONNECTOR [M]
CN6702 K1MN10B00104 10P FFC CONNECTOR [M]
CN6703 K1MN30AA0004 30P CONNECTOR [M]
CN6902 K1KA07AA0193 7P CONNECTOR [M]
CN7002 K1FY104B0011 4P USB CONNECTOR [M]
CN8003 K1MY05BA0130 5P CONNECTOR [M]
