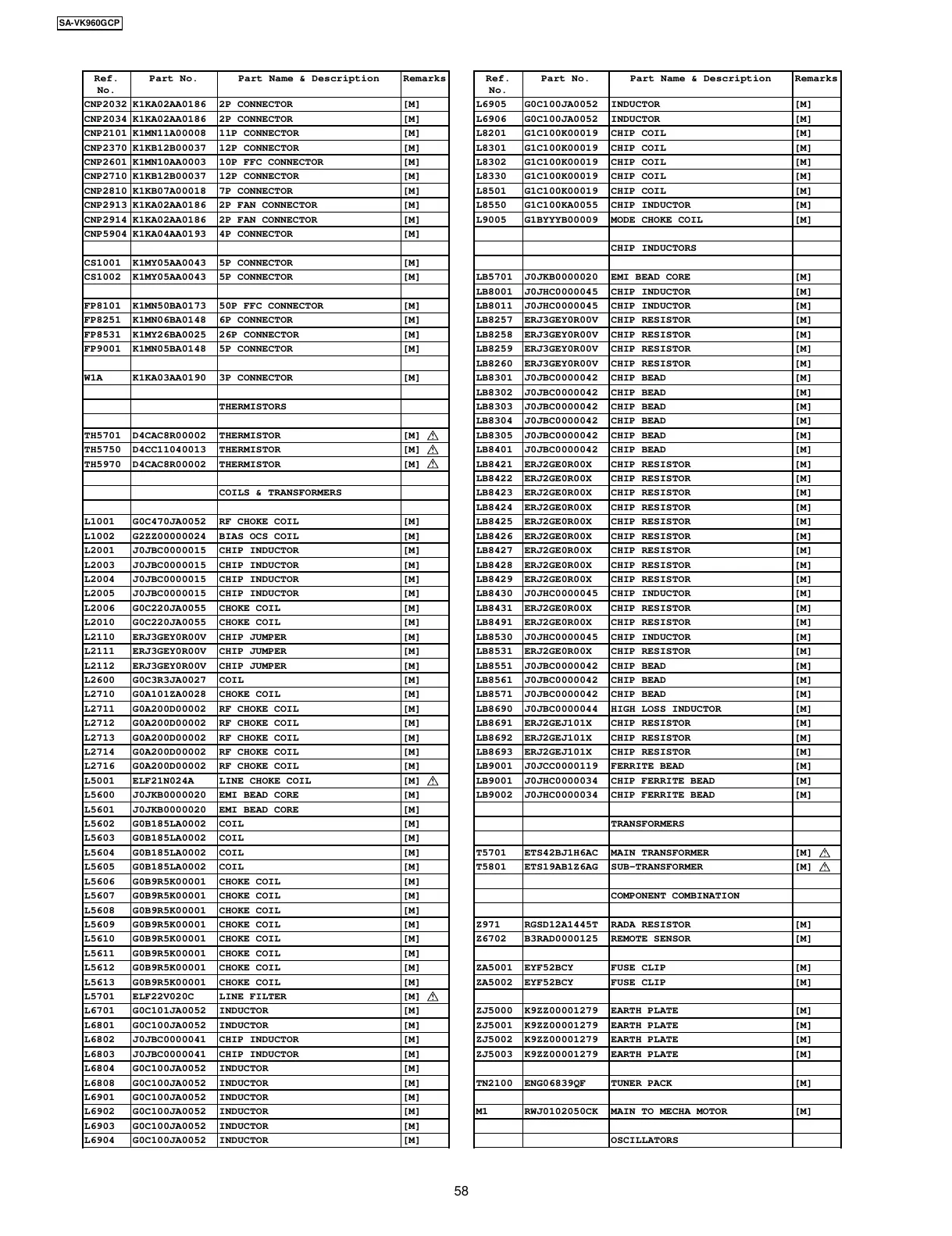

Panasonic SB-PF960 - Page 58

Ref.
No.
Part No. Part Name & Description Remarks
CNP2032 K1KA02AA0186 2P CONNECTOR [M]
CNP2034 K1KA02AA0186 2P CONNECTOR [M]
CNP2101 K1MN11A00008 11P CONNECTOR [M]
CNP2370 K1KB12B00037 12P CONNECTOR [M]
CNP2601 K1MN10AA0003 10P FFC CONNECTOR [M]
CNP2710 K1KB12B00037 12P CONNECTOR [M]
CNP2810 K1KB07A00018 7P CONNECTOR [M]
CNP2913 K1KA02AA0186 2P FAN CONNECTOR [M]
CNP2914 K1KA02AA0186 2P FAN CONNECTOR [M]
CNP5904 K1KA04AA0193 4P CONNECTOR [M]
CS1001 K1MY05AA0043 5P CONNECTOR [M]
CS1002 K1MY05AA0043 5P CONNECTOR [M]
FP8101 K1MN50BA0173 50P FFC CONNECTOR [M]
FP8251 K1MN06BA0148 6P CONNECTOR [M]
FP8531 K1MY26BA0025 26P CONNECTOR [M]
FP9001 K1MN05BA0148 5P CONNECTOR [M]
W1A K1KA03AA0190 3P CONNECTOR [M]
THERMISTORS
TH5701 D4CAC8R00002 THERMISTOR [M]
TH5750 D4CC11040013 THERMISTOR [M]
TH5970 D4CAC8R00002 THERMISTOR [M]
COILS & TRANSFORMERS
L1001 G0C470JA0052 RF CHOKE COIL [M]
L1002 G2ZZ00000024 BIAS OCS COIL [M]
L2001 J0JBC0000015 CHIP INDUCTOR [M]
L2003 J0JBC0000015 CHIP INDUCTOR [M]
L2004 J0JBC0000015 CHIP INDUCTOR [M]
L2005 J0JBC0000015 CHIP INDUCTOR [M]
L2006 G0C220JA0055 CHOKE COIL [M]
L2010 G0C220JA0055 CHOKE COIL [M]
L2110 ERJ3GEY0R00V CHIP JUMPER [M]
L2111 ERJ3GEY0R00V CHIP JUMPER [M]
L2112 ERJ3GEY0R00V CHIP JUMPER [M]
L2600 G0C3R3JA0027 COIL [M]
L2710 G0A101ZA0028 CHOKE COIL [M]
L2711 G0A200D00002 RF CHOKE COIL [M]
L2712 G0A200D00002 RF CHOKE COIL [M]
L2713 G0A200D00002 RF CHOKE COIL [M]
L2714 G0A200D00002 RF CHOKE COIL [M]
L2716 G0A200D00002 RF CHOKE COIL [M]
L5001 ELF21N024A LINE CHOKE COIL [M]
L5600 J0JKB0000020 EMI BEAD CORE [M]
L5601 J0JKB0000020 EMI BEAD CORE [M]
L5602 G0B185LA0002 COIL [M]
L5603 G0B185LA0002 COIL [M]
L5604 G0B185LA0002 COIL [M]
L5605 G0B185LA0002 COIL [M]
L5606 G0B9R5K00001 CHOKE COIL [M]
L5607 G0B9R5K00001 CHOKE COIL [M]
L5608 G0B9R5K00001 CHOKE COIL [M]
L5609 G0B9R5K00001 CHOKE COIL [M]
L5610 G0B9R5K00001 CHOKE COIL [M]
L5611 G0B9R5K00001 CHOKE COIL [M]
L5612 G0B9R5K00001 CHOKE COIL [M]
L5613 G0B9R5K00001 CHOKE COIL [M]
L5701 ELF22V020C LINE FILTER [M]
L6701 G0C101JA0052 INDUCTOR [M]
L6801 G0C100JA0052 INDUCTOR [M]
L6802 J0JBC0000041 CHIP INDUCTOR [M]
L6803 J0JBC0000041 CHIP INDUCTOR [M]
L6804 G0C100JA0052 INDUCTOR [M]
L6808 G0C100JA0052 INDUCTOR [M]
L6901 G0C100JA0052 INDUCTOR [M]
L6902 G0C100JA0052 INDUCTOR [M]
L6903 G0C100JA0052 INDUCTOR [M]
L6904 G0C100JA0052 INDUCTOR [M]
Ref.
No.
Part No. Part Name & Description Remarks
L6905 G0C100JA0052 INDUCTOR [M]
L6906 G0C100JA0052 INDUCTOR [M]
L8201 G1C100K00019 CHIP COIL [M]
L8301 G1C100K00019 CHIP COIL [M]
L8302 G1C100K00019 CHIP COIL [M]
L8330 G1C100K00019 CHIP COIL [M]
L8501 G1C100K00019 CHIP COIL [M]
L8550 G1C100KA0055 CHIP INDUCTOR [M]
L9005 G1BYYYB00009 MODE CHOKE COIL [M]
CHIP INDUCTORS
LB5701 J0JKB0000020 EMI BEAD CORE [M]
LB8001 J0JHC0000045 CHIP INDUCTOR [M]
LB8011 J0JHC0000045 CHIP INDUCTOR [M]
LB8257 ERJ3GEY0R00V CHIP RESISTOR [M]
LB8258 ERJ3GEY0R00V CHIP RESISTOR [M]
LB8259 ERJ3GEY0R00V CHIP RESISTOR [M]
LB8260 ERJ3GEY0R00V CHIP RESISTOR [M]
LB8301 J0JBC0000042 CHIP BEAD [M]
LB8302 J0JBC0000042 CHIP BEAD [M]
LB8303 J0JBC0000042 CHIP BEAD [M]
LB8304 J0JBC0000042 CHIP BEAD [M]
LB8305 J0JBC0000042 CHIP BEAD [M]
LB8401 J0JBC0000042 CHIP BEAD [M]
LB8421 ERJ2GE0R00X CHIP RESISTOR [M]
LB8422 ERJ2GE0R00X CHIP RESISTOR [M]
LB8423 ERJ2GE0R00X CHIP RESISTOR [M]
LB8424 ERJ2GE0R00X CHIP RESISTOR [M]
LB8425 ERJ2GE0R00X CHIP RESISTOR [M]
LB8426 ERJ2GE0R00X CHIP RESISTOR [M]
LB8427 ERJ2GE0R00X CHIP RESISTOR [M]
LB8428 ERJ2GE0R00X CHIP RESISTOR [M]
LB8429 ERJ2GE0R00X CHIP RESISTOR [M]
LB8430 J0JHC0000045 CHIP INDUCTOR [M]
LB8431 ERJ2GE0R00X CHIP RESISTOR [M]
LB8491 ERJ2GE0R00X CHIP RESISTOR [M]
LB8530 J0JHC0000045 CHIP INDUCTOR [M]
LB8531 ERJ2GE0R00X CHIP RESISTOR [M]
LB8551 J0JBC0000042 CHIP BEAD [M]
LB8561 J0JBC0000042 CHIP BEAD [M]
LB8571 J0JBC0000042 CHIP BEAD [M]
LB8690 J0JBC0000044 HIGH LOSS INDUCTOR [M]
LB8691 ERJ2GEJ101X CHIP RESISTOR [M]
LB8692 ERJ2GEJ101X CHIP RESISTOR [M]
LB8693 ERJ2GEJ101X CHIP RESISTOR [M]
LB9001 J0JCC0000119 FERRITE BEAD [M]
LB9001 J0JHC0000034 CHIP FERRITE BEAD [M]
LB9002 J0JHC0000034 CHIP FERRITE BEAD [M]
TRANSFORMERS
T5701 ETS42BJ1H6AC MAIN TRANSFORMER [M]
T5801 ETS19AB1Z6AG SUB-TRANSFORMER [M]
COMPONENT COMBINATION
Z971 RGSD12A1445T RADA RESISTOR [M]
Z6702 B3RAD0000125 REMOTE SENSOR [M]
ZA5001 EYF52BCY FUSE CLIP [M]
ZA5002 EYF52BCY FUSE CLIP [M]
ZJ5000 K9ZZ00001279 EARTH PLATE [M]
ZJ5001 K9ZZ00001279 EARTH PLATE [M]
ZJ5002 K9ZZ00001279 EARTH PLATE [M]
ZJ5003 K9ZZ00001279 EARTH PLATE [M]
TN2100 ENG06839QF TUNER PACK [M]
M1 RWJ0102050CK MAIN TO MECHA MOTOR [M]
OSCILLATORS
58
SA-VK960GCP
