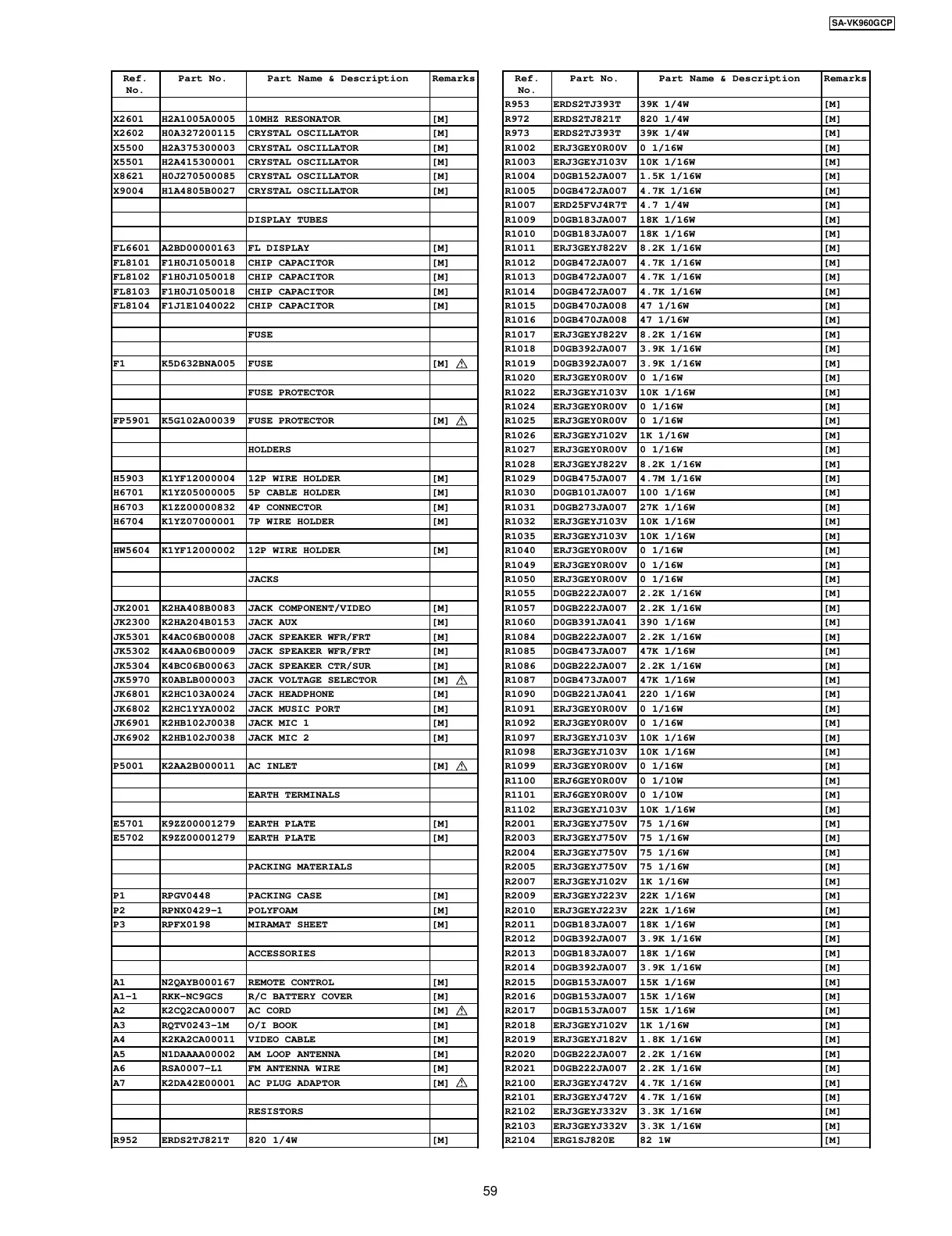

Ref.
No.
Part No. Part Name & Description Remarks
X2601 H2A1005A0005 10MHZ RESONATOR [M]
X2602 H0A327200115 CRYSTAL OSCILLATOR [M]
X5500 H2A375300003 CRYSTAL OSCILLATOR [M]
X5501 H2A415300001 CRYSTAL OSCILLATOR [M]
X8621 H0J270500085 CRYSTAL OSCILLATOR [M]
X9004 H1A4805B0027 CRYSTAL OSCILLATOR [M]
DISPLAY TUBES
FL6601 A2BD00000163 FL DISPLAY [M]
FL8101 F1H0J1050018 CHIP CAPACITOR [M]
FL8102 F1H0J1050018 CHIP CAPACITOR [M]
FL8103 F1H0J1050018 CHIP CAPACITOR [M]
FL8104 F1J1E1040022 CHIP CAPACITOR [M]
FUSE
F1 K5D632BNA005 FUSE [M]
FUSE PROTECTOR
FP5901 K5G102A00039 FUSE PROTECTOR [M]
HOLDERS
H5903 K1YF12000004 12P WIRE HOLDER [M]
H6701 K1YZ05000005 5P CABLE HOLDER [M]
H6703 K1ZZ00000832 4P CONNECTOR [M]
H6704 K1YZ07000001 7P WIRE HOLDER [M]
HW5604 K1YF12000002 12P WIRE HOLDER [M]
JACKS
JK2001 K2HA408B0083 JACK COMPONENT/VIDEO [M]
JK2300 K2HA204B0153 JACK AUX [M]
JK5301 K4AC06B00008 JACK SPEAKER WFR/FRT [M]
JK5302 K4AA06B00009 JACK SPEAKER WFR/FRT [M]
JK5304 K4BC06B00063 JACK SPEAKER CTR/SUR [M]
JK5970 K0ABLB000003 JACK VOLTAGE SELECTOR [M]
JK6801 K2HC103A0024 JACK HEADPHONE [M]
JK6802 K2HC1YYA0002 JACK MUSIC PORT [M]
JK6901 K2HB102J0038 JACK MIC 1 [M]
JK6902 K2HB102J0038 JACK MIC 2 [M]
P5001 K2AA2B000011 AC INLET [M]
EARTH TERMINALS
E5701 K9ZZ00001279 EARTH PLATE [M]
E5702 K9ZZ00001279 EARTH PLATE [M]
PACKING MATERIALS
P1 RPGV0448 PACKING CASE [M]
P2 RPNX0429-1 POLYFOAM [M]
P3 RPFX0198 MIRAMAT SHEET [M]
ACCESSORIES
A1 N2QAYB000167 REMOTE CONTROL [M]
A1-1 RKK-NC9GCS R/C BATTERY COVER [M]
A2 K2CQ2CA00007 AC CORD [M]
A3 RQTV0243-1M O/I BOOK [M]
A4 K2KA2CA00011 VIDEO CABLE [M]
A5 N1DAAAA00002 AM LOOP ANTENNA [M]
A6 RSA0007-L1 FM ANTENNA WIRE [M]
A7 K2DA42E00001 AC PLUG ADAPTOR [M]
RESISTORS
R952 ERDS2TJ821T 820 1/4W [M]
Ref.
No.
Part No. Part Name & Description Remarks
R953 ERDS2TJ393T 39K 1/4W [M]
R972 ERDS2TJ821T 820 1/4W [M]
R973 ERDS2TJ393T 39K 1/4W [M]
R1002 ERJ3GEY0R00V 0 1/16W [M]
R1003 ERJ3GEYJ103V 10K 1/16W [M]
R1004 D0GB152JA007 1.5K 1/16W [M]
R1005 D0GB472JA007 4.7K 1/16W [M]
R1007 ERD25FVJ4R7T 4.7 1/4W [M]
R1009 D0GB183JA007 18K 1/16W [M]
R1010 D0GB183JA007 18K 1/16W [M]
R1011 ERJ3GEYJ822V 8.2K 1/16W [M]
R1012 D0GB472JA007 4.7K 1/16W [M]
R1013 D0GB472JA007 4.7K 1/16W [M]
R1014 D0GB472JA007 4.7K 1/16W [M]
R1015 D0GB470JA008 47 1/16W [M]
R1016 D0GB470JA008 47 1/16W [M]
R1017 ERJ3GEYJ822V 8.2K 1/16W [M]
R1018 D0GB392JA007 3.9K 1/16W [M]
R1019 D0GB392JA007 3.9K 1/16W [M]
R1020 ERJ3GEY0R00V 0 1/16W [M]
R1022 ERJ3GEYJ103V 10K 1/16W [M]
R1024 ERJ3GEY0R00V 0 1/16W [M]
R1025 ERJ3GEY0R00V 0 1/16W [M]
R1026 ERJ3GEYJ102V 1K 1/16W [M]
R1027 ERJ3GEY0R00V 0 1/16W [M]
R1028 ERJ3GEYJ822V 8.2K 1/16W [M]
R1029 D0GB475JA007 4.7M 1/16W [M]
R1030 D0GB101JA007 100 1/16W [M]
R1031 D0GB273JA007 27K 1/16W [M]
R1032 ERJ3GEYJ103V 10K 1/16W [M]
R1035 ERJ3GEYJ103V 10K 1/16W [M]
R1040 ERJ3GEY0R00V 0 1/16W [M]
R1049 ERJ3GEY0R00V 0 1/16W [M]
R1050 ERJ3GEY0R00V 0 1/16W [M]
R1055 D0GB222JA007 2.2K 1/16W [M]
R1057 D0GB222JA007 2.2K 1/16W [M]
R1060 D0GB391JA041 390 1/16W [M]
R1084 D0GB222JA007 2.2K 1/16W [M]
R1085 D0GB473JA007 47K 1/16W [M]
R1086 D0GB222JA007 2.2K 1/16W [M]
R1087 D0GB473JA007 47K 1/16W [M]
R1090 D0GB221JA041 220 1/16W [M]
R1091 ERJ3GEY0R00V 0 1/16W [M]
R1092 ERJ3GEY0R00V 0 1/16W [M]
R1097 ERJ3GEYJ103V 10K 1/16W [M]
R1098 ERJ3GEYJ103V 10K 1/16W [M]
R1099 ERJ3GEY0R00V 0 1/16W [M]
R1100 ERJ6GEY0R00V 0 1/10W [M]
R1101 ERJ6GEY0R00V 0 1/10W [M]
R1102 ERJ3GEYJ103V 10K 1/16W [M]
R2001 ERJ3GEYJ750V 75 1/16W [M]
R2003 ERJ3GEYJ750V 75 1/16W [M]
R2004 ERJ3GEYJ750V 75 1/16W [M]
R2005 ERJ3GEYJ750V 75 1/16W [M]
R2007 ERJ3GEYJ102V 1K 1/16W [M]
R2009 ERJ3GEYJ223V 22K 1/16W [M]
R2010 ERJ3GEYJ223V 22K 1/16W [M]
R2011 D0GB183JA007 18K 1/16W [M]
R2012 D0GB392JA007 3.9K 1/16W [M]
R2013 D0GB183JA007 18K 1/16W [M]
R2014 D0GB392JA007 3.9K 1/16W [M]
R2015 D0GB153JA007 15K 1/16W [M]
R2016 D0GB153JA007 15K 1/16W [M]
R2017 D0GB153JA007 15K 1/16W [M]
R2018 ERJ3GEYJ102V 1K 1/16W [M]
R2019 ERJ3GEYJ182V 1.8K 1/16W [M]
R2020 D0GB222JA007 2.2K 1/16W [M]
R2021 D0GB222JA007 2.2K 1/16W [M]
R2100 ERJ3GEYJ472V 4.7K 1/16W [M]
R2101 ERJ3GEYJ472V 4.7K 1/16W [M]
R2102 ERJ3GEYJ332V 3.3K 1/16W [M]
R2103 ERJ3GEYJ332V 3.3K 1/16W [M]
R2104 ERG1SJ820E 82 1W [M]
59
