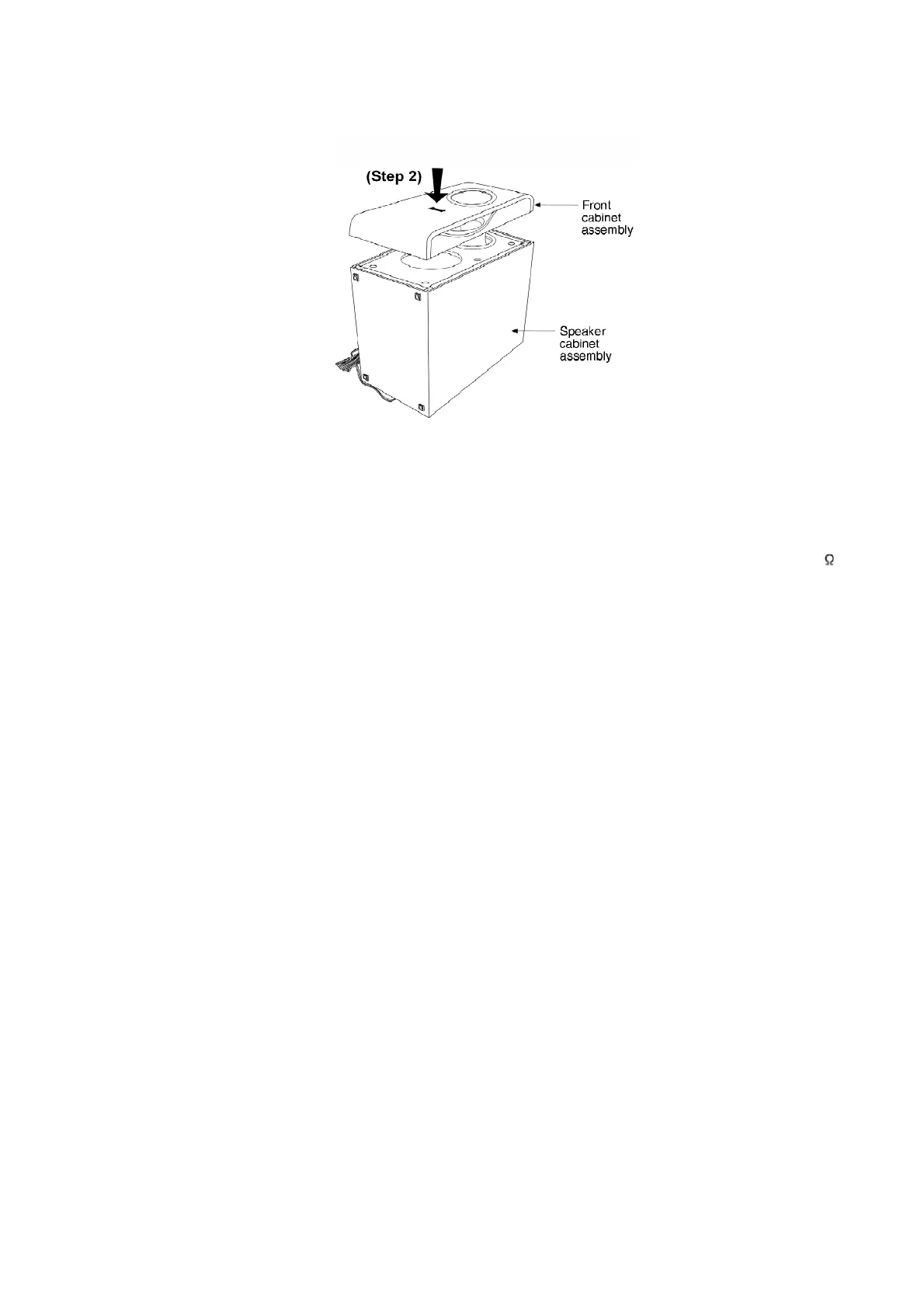

Step 2: Fix the front cabinet assembly firmly back to the speaker cabinet assembly.
2. Connection of the Speaker Cables
- Be sure to connect speaker cables before connecting the AC
power supply cord.
- The load impedance of any speaker used with this unit must be 5 .
- Be sure to connect the cable from the right speaker to the right
terminal and the cable from the left speaker to the left terminal.
1. Strip off the outer covering, and twist the center conductor. Make
sure the bare ends of the wires are not unravelled. (If they are,
twist them tight again.)
2. Insert the wire to the rear panel of the unit and close the lever.
9
