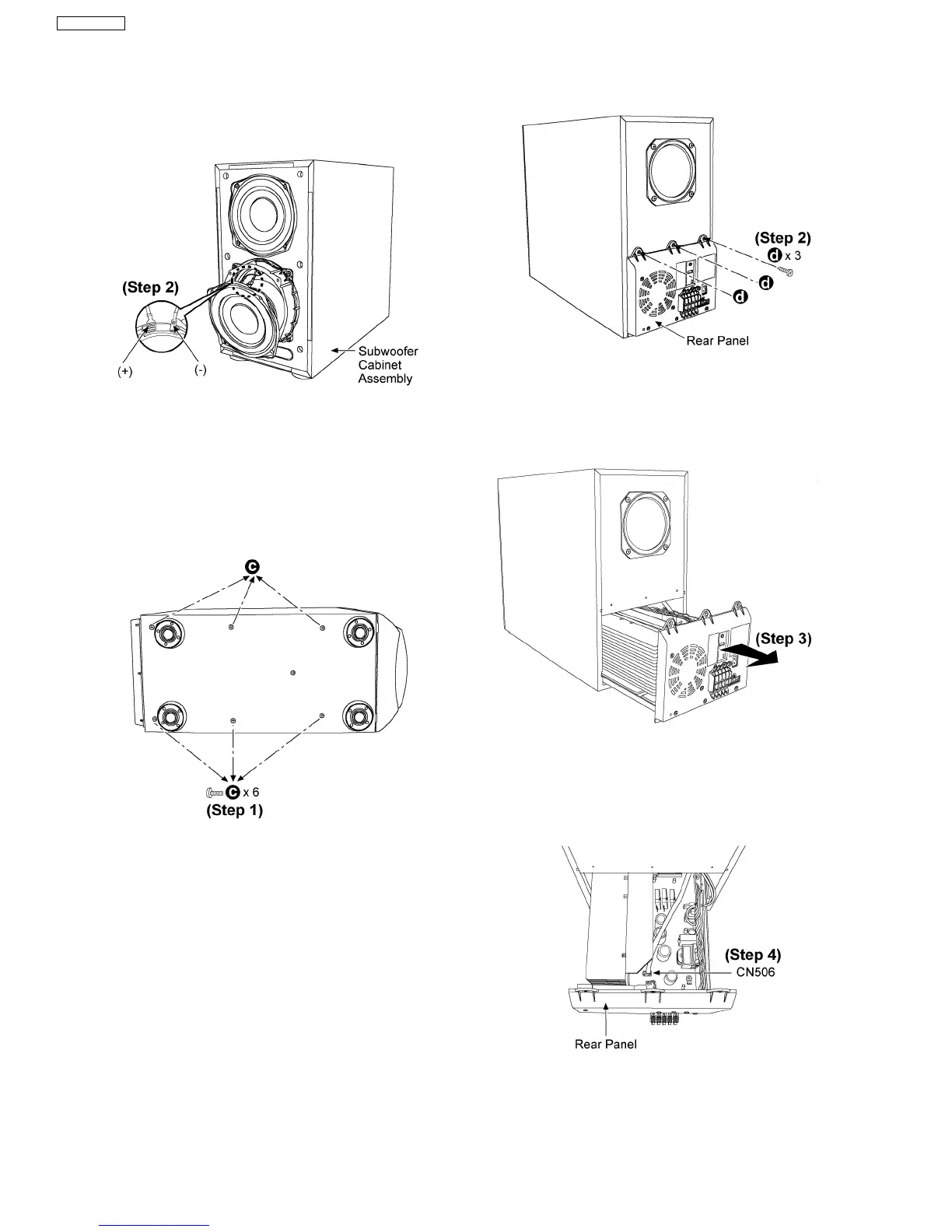

Step 1: Remove 4 screws from the Woofer 2.
Step 2: Remove the Woofer 2 by detaching the (+) and (-)
wires.
7.2.4. Disassembly of the Power Amp
Unit
Step 1: Lay the speaker unit as shown. Remove 6 screws from
the bottom of the woofer unit.
Step 2: Remove 3 screws from the rear panel.
Step 3: Pull out the Power Amp Unit slightly as shown.
Step 4: Disconnect connector CN506.
10
SB-WA730GCP
