Step 5: Pull out the entire Power Amp Unit.
7.2.5. Disassembly of the Rear Panel and
Fan Unit
Follow Step (1) to Step (5) described in section 7.2.4.

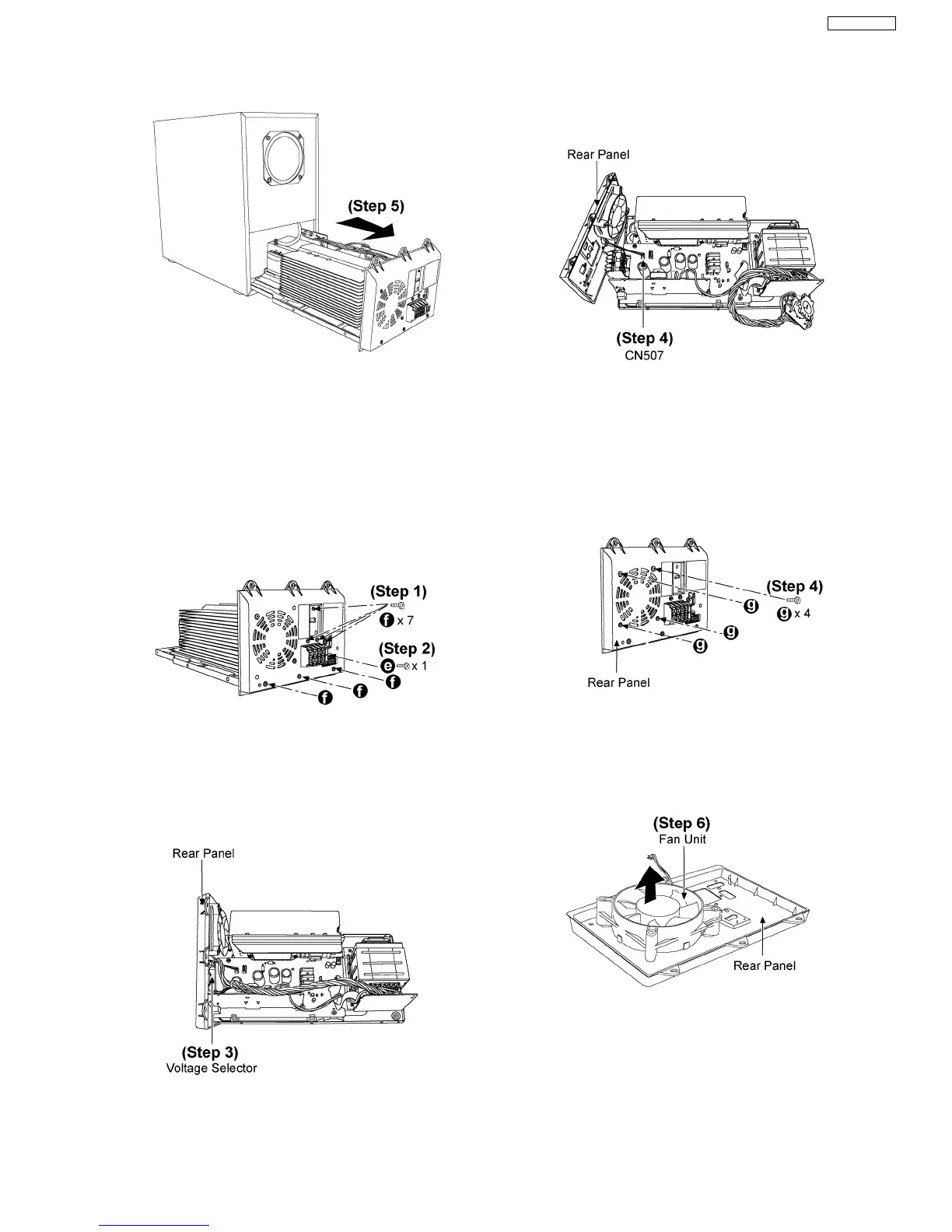

Step 1 & 2: Remove 8 screws from the rear panel.
Step 3: Disconnect the Voltage Selector from the rear panel.
Step 4: Disconnect the connector (CN507) to detach the rear
panel.
Step 5: Remove 4 screws from the rear panel.
Step 6: Lay the rear panel and remove the Fan Unit as arrow
shown.
11
SB-WA730GCP
