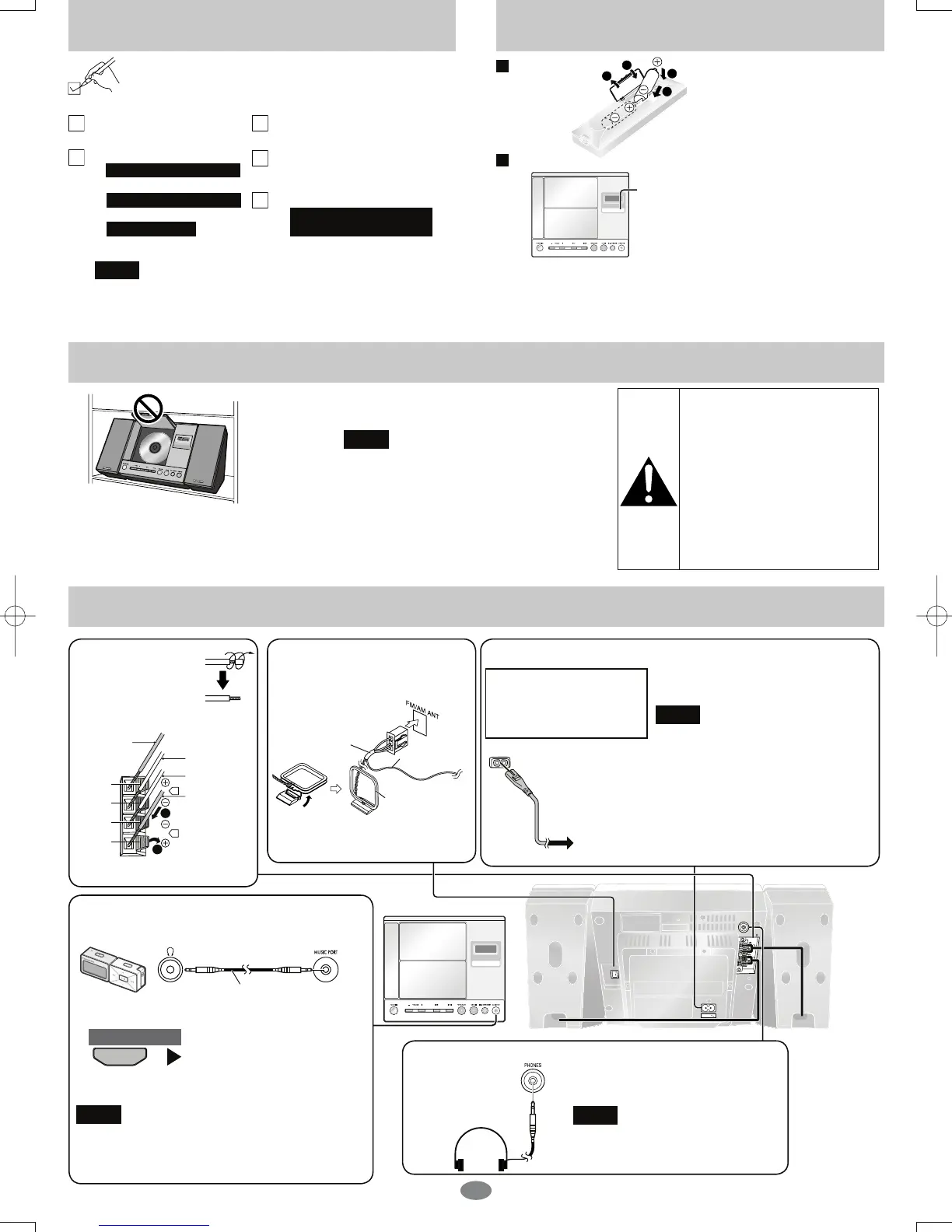

Supplied accessories The remote control
Use the numbers indicated in parentheses when asking for
replacement parts.
As of January 2007
1 Remote control
(N2QAGB000038)
2 Batteries
1 FM/AM antenna
(N1DADYY00003)
1 AC mains lead
(RFA2699)
For the United Kingdom
(RFA2700)
For other areas
(RJA0019-D)
The included AC mains lead is for use with this unit only. Do not use it
with other equipment.
Do not use an AC mains lead from any other type of equipment with
this unit.
Note
Batteries
,QVHUWVRWKHSROHVDQG±
match those in the remote
control.
Do not use rechargeable type
batteries.
Use
Remote control signal sensor
Aim at the sensor, avoiding obstacles, at a
maximum range of 7 m directly in front of the
unit.
Operation can be affected by strong light
sources, such as direct sunlight, and the glass
doors on cabinets.
Placement of speakers
Connections
1 Speakers
If the speaker cords
have tips, twist the tips
and pull them off.
Red
Black
Black
Red
&RSSHU
6LOYHU±
6LOYHU±
&RSSHU
2 FM/AM antenna
Stand the antenna up on its base.
3 AC mains lead
Connect the AC mains lead only after all
other connections have been made.
If the unit is left unplugged for longer than
approximately two weeks, all settings will
revert to the factory settings.
Remember to reset the radio stations and
any other memory items before using the
unit again.
To household
mains socket
Portable audio equipment
(Cable included for continental Europe and the United
.LQJGRP
Portable audio player
Plug type:
Ø 3.5 mm stereo
mini plug
Use
Start Playback from the
Portable audio source.
Note
Adjust the volume and sound quality of this unit and
the other equipment.
For details, refer to the instruction manual of the other
equipment.
Select
³086,&3´
Headphones
1RWLQFOXGHG
Reduce the volume before connection.
Plug type: Ø 3.5 mm stereo mini plug
Avoid listening for prolonged periods of
time to prevent hearing damage.
Note
5$$
Place this unit in an area with more than 240 mm of
vertical space.
The CD lid may become damaged if it cannot open
completely.
Placement of speakers
Left and right speakers are exactly the same.
Keep your speakers at least 10 mm away from the
system for proper ventilation.
These speakers do not have magnetic shielding.
Do not place them near televisions, personal
computers or other devices easily inÀ uenced by
magnetism.
To avoid damage to the speakers, do not touch
the speaker cones if you have taken the nets off.
Caution
Use the speakers only with the
recommended system. Failure
to do so may lead to damage to
the ampli¿ er and/or the speakers,
and may result in the risk of
¿ re. Consult a quali¿ ed service
person if damage has occurred
or if you experience a sudden
change in performance.
Do not attach these speakers to
walls or ceilings.
Note
Note
Remote control
Unplug the antenna connector by
holding the taped part.
Taped part
FOR THE UNITED KINGDOM ONLY
READ THE CAUTION FOR THE
AC MAINS LEAD ON PAGE 7
BEFORE CONNECTION.
1 Music port cable
For continental Europe
and the United Kingdom
(K2KC39A00002)
0XVLFSRUWFDEOH
)0DQWHQQD
$0DQWHQQD
For continental Europe
