Panasonic SC-HT40 User Manual

7
RQTV0105
FM
ANT
AM
ANT
75
Ω
LOOP
EXT
TV
AUDIO
LOOP
ANT
GND
DVR/DVD-P
L
R
L
R R
L
OPT 2 OPT 1
COAXIAL
DVR/DVD-P TV
DIGITAL IN
AC IN ~
DIGITAL
TRANSCEIVER
IN OUT IN
SUB
SPEAKERS (HAUT-PARLEURS)
R
C SURROUND FRONT
R L L
6
Ω
4
Ω
6 5 4 3 2 1
AC IN ~
LOOP
ANT
GND
2
3
1
1
2
FM
ANT
AM
ANT
75 Ω
LOOP
EXT
AC IN ~

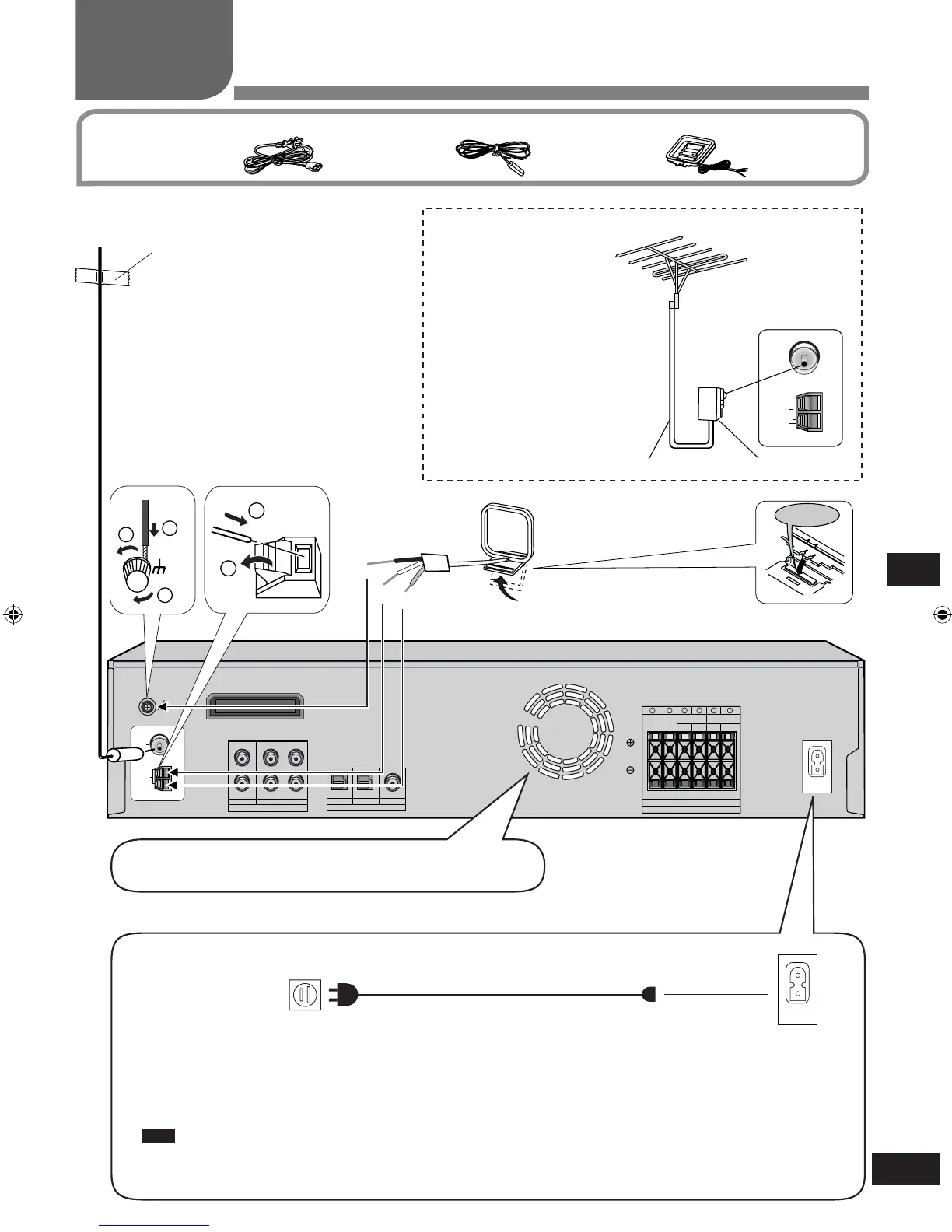

Antenna and AC power supply connections
Step 3
Household AC outlet
(AC 120 V/60 Hz)
AC power supply cord (included)
Connect this cord after all other cables are
connected.
Conserving power
The unit consumes 1 W even when it is turned off with [8, POWER]. To save power when the unit is not to be
used for a long time, unplug it from the household AC outlet. You will need to reset some memory items after
plugging in the unit.
FM indoor antenna
(included)
Adhesive tape
Fix the end of the antenna where
reception is best.
AM loop antenna (included)
Black
Red
White
Click!
Keep the antenna cord away from DVD players and other cords.
For best reception
FM outdoor antenna (not
included)
Disconnect the FM indoor
antenna.
The a ntenna shou ld be
installed by a competent
technician.
•
•
FM outdoor antenna
75 Ω coaxial cable Antenna plug
Note
The included AC power supply cord is for use with this unit only. Do not use it with other equipment.
Do not use an AC power supply cord from any other type of equipment with this unit.
•
•
3
(x 1)
(x 1)
(x 1)
Supplied
accessories
AC power supply cord FM indoor antenna
AM loop antenna
Antenna and AC power supply connections
Step
The cooling fan operates at high power output levels only.
SC-HT40PP.indb 7 1/20/2006 5:27:17 PM
