10
VQT3Q59
≥For a safety measure to prevent the speakers from falling, refer to page 16.
≥To prevent damage or scratches, lay down a soft cloth and perform the assembly on it.

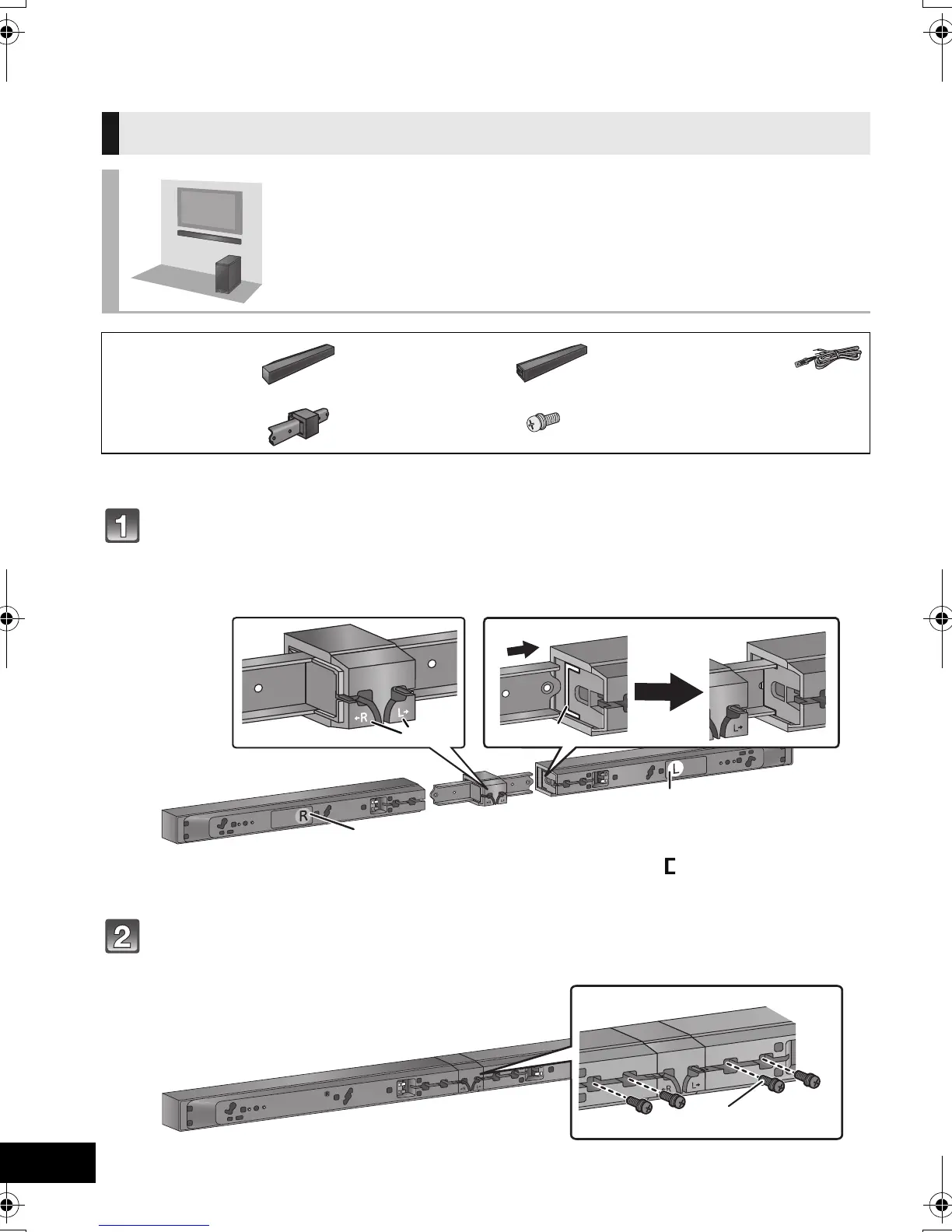

Match the L/R indicator A on the speaker with the L/R indicator B on the
speaker joint, then insert the metal part of the speaker joint fully into C.
≥ Do not connect the left speaker to the right speaker joint or vice versa. Be sure to verify the orientation of the speaker with
the label on the rear of the speaker.
Use screws A to secure the speakers to the speaker joint.
≥ Keep the screws out of reach of children to prevent swallowing.
Step 2 Assembling the speakers
When placing the speakers on a wall
Place the speakers horizontally
∏ 1 Speaker (L) ∏ 1 Speaker (R) ∏ 2 Speaker cables
(L): WHITE
(R): RED
∏ 1 Speaker joint ∏ 4 Screws A
(Large)
A L/R indicator on the
speaker label
B L/R indicator on the
speaker joint
C
“”
shaped slit
D Screw A (supplied)
≥ Be sure to insert the screws following the order as indicated in the illustration.
SC-HTB15PP_VQT3Q59_eng.book Page 10 Wednesday, June 8, 2011 3:33 PM
To Next Page
