Panasonic SC-HTB15 Owner's Manual

Getting started
21
VQT3Q59
Connect to the terminals of the same color.
≥ Connect only after all other connections are complete.
≥The active subwoofer consumes a small amount of AC power, even when it is in standby mode (0.05 W).
In the interest of power conservation, if you will not be using this system for a long time, unplug it from the
household AC outlet.

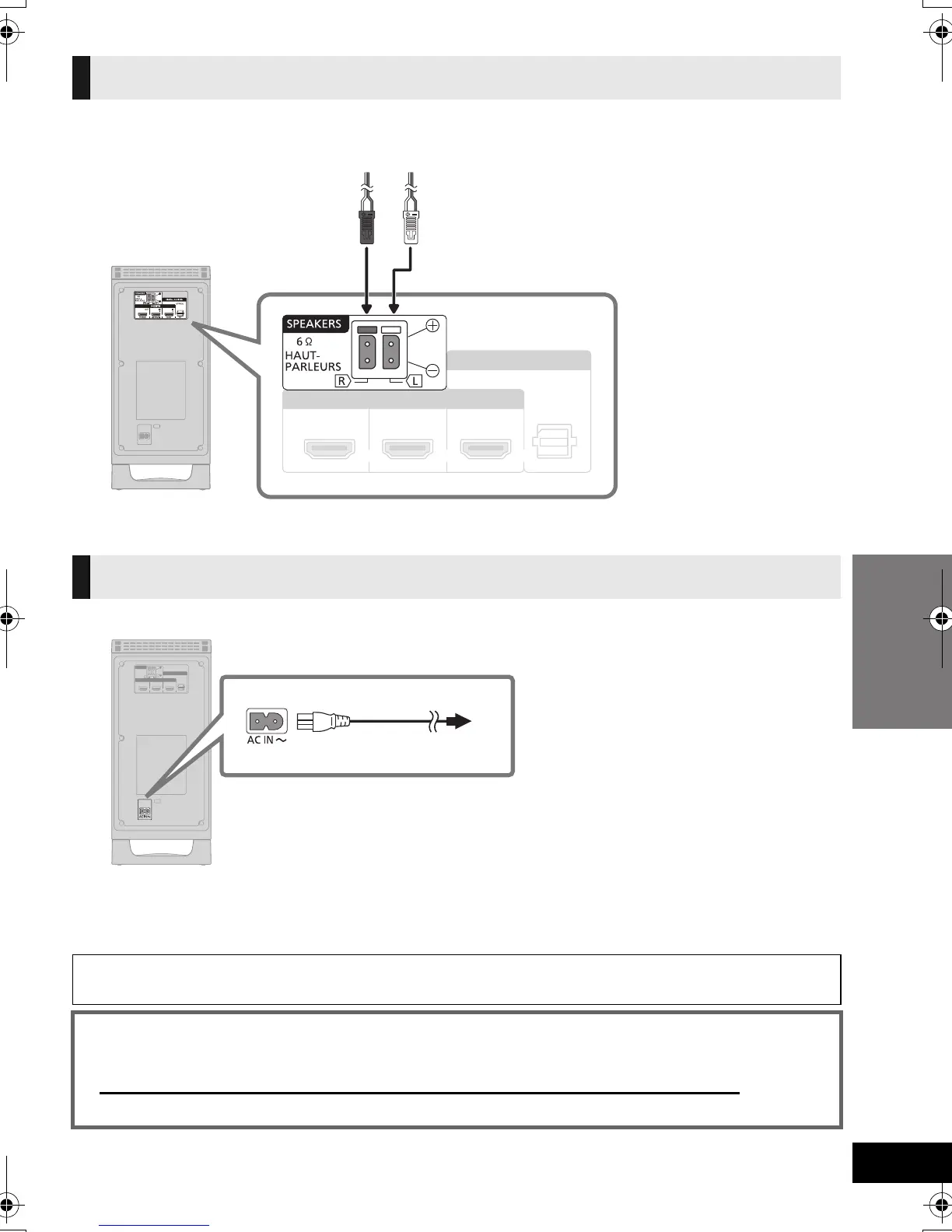

Speaker cable connection
A RED
Front speaker (Rch)
B WHITE
Front speaker (Lch)
AC power supply cord connection
A To a household AC outlet
Install this unit so that the power cord can be unplugged from the socket outlet immediately if any
problem occurs.
Saving energy
This system is designed to conserve its power consumption and save energy.
≥
This system will automatically switch to standby mode when no
signal is input and no operation is performed for approx. 30 minutes.

Active subwoofer

Active subwoofer
SC-HTB15PP_VQT3Q59_eng.book Page 21 Wednesday, June 8, 2011 3:33 PM

Panasonic SC-HTB15 Specifications

General

Audio decoders	Dolby Digital, Dolby Pro Logic II, DTS
RMS rated power	240 W
Audio output channels	2.1 channels
Audio Return Channel (ARC)	Yes
Impedance	6 Ω
Woofer diameter	160 mm
Tweeter diameter	25 mm
Soundbar speaker RMS power	120 W
Total Harmonic Distortion (THD)	10 %
Subwoofer connectivity	Wired
Receiver included	No
Product color	Black
Consumer Electronics Control (CEC)	VIERA Link
Apple docking compatibility	Not supported
Soundbar dimensions (WxDxH)	800 x 58 x 49 mm
Subwoofer dimensions (WxDxH)	180 x 305 x 408 mm
HDMI in	2
HDMI ports quantity	3
Digital audio optical in	1
Power source	AC
AC input voltage	220-240 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	52 W

Weight and Dimensions

Soundbar weight	1360 g
Subwoofer weight	5600 g
